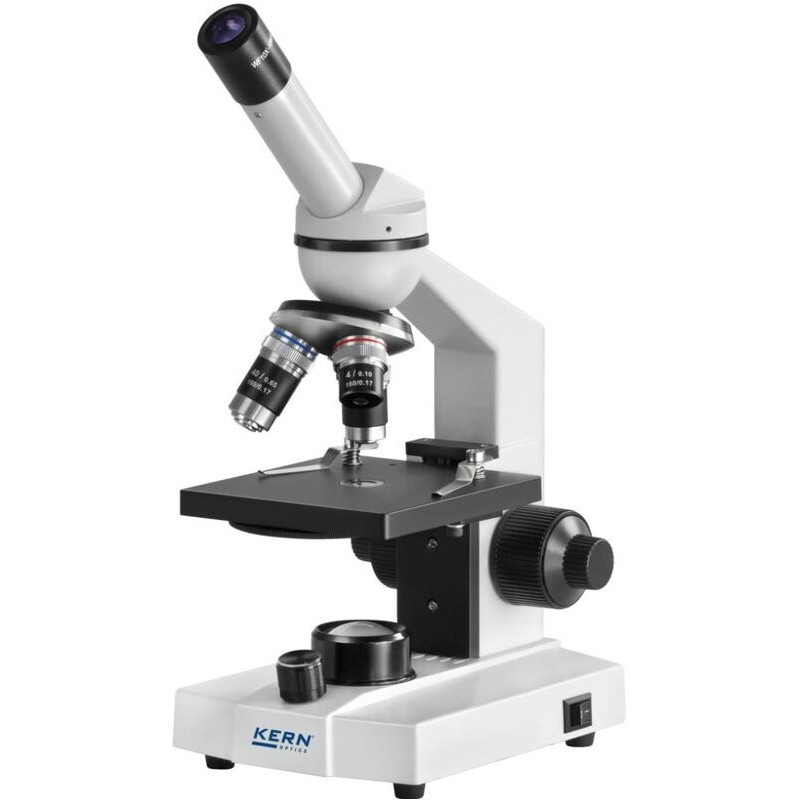

Kern Microscope Mono Achromat 4/10/40, WF10x18, 0,5W LED, OBS 113

The KERN OBS-1 series presents a reliable and user-friendly range of school microscopes, designed for simplicity and effectiveness.

With its infinitely dimmable 0.5W LED, this series ensures optimal sample illumination and durability. The option for rechargeable batteries allows for effortless mobility.

Featuring a 0.65 condenser lens with a rotating aperture diaphragm disc (OBS 101), or a 1.25 Abbe condenser with height adjustment (OBS 104 and OBS 106), these models ensure precise light concentration and sample illumination.

All models are equipped with coarse and fine focusing knobs for accurate focusing. The OBS 106 model also includes a mechanical angle table for rapid sample manipulation.

A variety of eyepieces and objectives are available to suit different needs. Additionally, the series is available in a set of 10.

• Finite optical system (DIN)
• 3-fold lens revolving unit: OBS 101
• 4-fold lens revolving unit: OBS 104, OBS 106
• Tube angle: 45° (OBS 101) or 30° (OBS 104, OBS 106), 360° revolving
• Dioptre compensation (for binocular models)
• Overall dimensions: 130×300×310 mm (W×D×H)
• Net weight: approximately 3,138 kg

Scope of Application:

Ideal for primary and secondary schools, training, and hobbyists. Suitable for examining translucent, thin, high-contrast, and less complex samples such as plant tissues and colored cells/parasites.

SPECIFICATIONS

Optics

Eyepiece: 10x/18 (Widefield)

Optical System: DIN (160mm)

Lens Type: Achromatic

Objectives:

14×/0.10 W.D. 18.0 mm

10×/0.25 W.D. 7.0 mm

40×/0.65 (spring-loaded) W.D. 0.53 mm

Magnification: 40-400 (40, 100, 400)

Condenser: Abbe 1.25 N.A., focus adjustable, with iris diaphragm

Lamp Type: LED (0.5W)

Power Supply: EU standard

Capacity

Brightness Control: Yes

Brightfield: Yes

Mechanics

Build Type: Monocular

Viewing Posture (°): 45

Focusing: Coarse and fine movement

Specimen Stage: Not specified

Special Features

Rechargeable Battery Operation: Not specified

Dust Cover Bag: Yes

Filter Holder: Yes

General

Weight (g): 3000

Width (mm): 130

Length (mm): 300

Height (mm): 310

Series: OBS

Suitable for

Beginners: Yes

Field of Application

Education: Yes

Area of Application: School

Miscellaneous

Supplier Product Number: OBS 113
