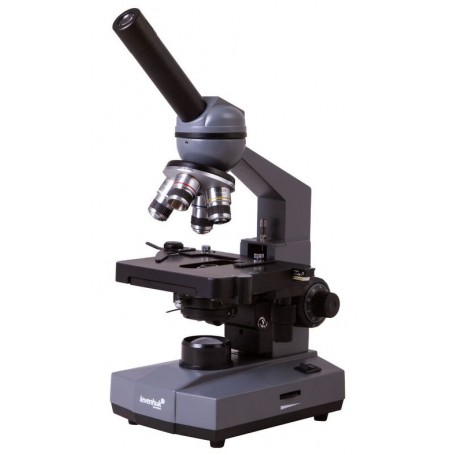

Levenhuk Microscope 320 BASE

Levenhuk 320 BASE monocular laboratory microscope is an ideal selection for outfitting medical laboratories, educational institutions, or scientific and educational centers. It excels in various microbiological research fields including cytology, histology, hematology, and more. This microscope caters to the needs of discerning professionals and specialists across diverse scientific disciplines.

Its optics offer magnification ranging from 40x to 1000x, delivering transmitted images with exceptional sharpness and contrast, thanks to its achromatic lenses. The monocular head, rotatable by 360°, coupled with a wide-angle eyepiece, ensures an outstanding field of view. Adjustment for sharpness is achieved through coarse and fine focusing knobs.

Equipped with a mechanical stage featuring a precise scale for specimen placement, an Abbe condenser with an iris diaphragm beneath the stage, and halogen illumination with adjustable brightness, this microscope ensures optimal research conditions. It operates on AC power.

The Levenhuk 320 BASE supports observations using the brightfield research method or oil immersion, all conducted in transmitted light. It's also compatible with Levenhuk digital cameras (sold separately), replacing the eyepiece for enhanced imaging capabilities.

Features:

• Laboratory microscope offering 40–1000x magnification
• Monocular head rotatable by 360°
• Achromatic lenses and wide-angle eyepiece
• 20W halogen illumination with adjustable brightness
• Operates on AC power

The kit includes:

• Microscope
• Achromatic objective lenses: 4x, 10x, 40x, and 100x (oil immersion)
• Wide-angle WF10x eyepiece
• Blue filter
• Bottle of immersion oil
• AC adapter
• Dust cover
• User manual and lifetime warranty

Caution: Ensure correct mains voltage compatibility as per your region before usage.

Specifications:

Product ID: 73811

Brand: Levenhuk, Inc., USA

Warranty: Lifetime

EAN: 5905555004518

Package size (LxWxH): 39x25x21 cm

Shipping Weight: 3.32 kg

Type: Biological, light/optical

Head: Monocular

Optics material: Optical glass

Nozzle: 360° rotatable

Head inclination angle: 45°

Magnification: 40 — 1000x

Eyepiece tube diameter: 23.2 mm

Eyepieces: WF10x

Objectives: Achromatic: 4x, 10x, 40xs, 100xs (oil immersion)

Revolving nosepiece: For 4 objectives

Stage, mm: 110x125

Stage moving range, mm: 58/25

Stage features: Mechanical double-layer

Condenser: Abbe N. A. 1.25 with an iris diaphragm

Diaphragm: Iris

Focus: Coaxial, coarse (20mm) and fine (0.02mm)

Body: Metal

Illumination: Halogen

Brightness adjustment: Yes

Power supply: 220V/50Hz

Light source type: 20W

Light filters: Blue

Additional: Immersion oil included

User level: Beginners, experienced users

Assembly and installation difficulty level: Easy

Application: School/educational, laboratory/medical

Illumination location: Lower

Research method: Brightfield

Pouch/case/bag in set: Dust cover
