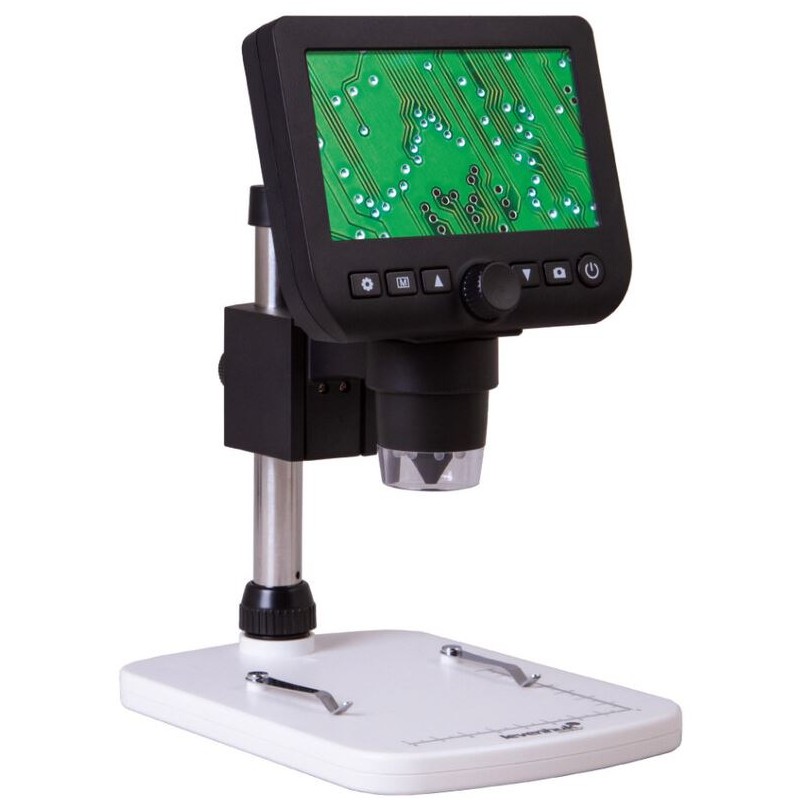

Levenhuk Microscope DTX 350 LCD 20-300x LED

The Levenhuk DTX 350 LCD Microscope is engineered for practical research applications. It serves well for observing three-dimensional objects such as coins, seeds, and insects. This microscope is user-friendly, making it ideal for educational purposes, hobbies, or even professional endeavors.

Magnification is facilitated by the built-in digital camera, with image quality adjustments available via software. Samples are securely fixed on the stage with clips and illuminated from above by eight bright LED lights. The magnified image is displayed on the integrated screen and can also be projected onto external displays like computer monitors, laptops, or projectors. Illumination and image sharpness can be finely adjusted for optimal viewing.

Observation results can be saved as photos or videos, with recordings stored on the included memory card. Additionally, the microscope comes with image processing software (included on CD) for further customization, including brightness and contrast adjustments, annotations, and precise measurements of angular and linear sizes of samples.

A standout feature of this microscope is its autonomous operation, with a built-in battery providing up to 7 hours of continuous use. It can also be powered via a computer's USB port or an AC supply (AC adapter sold separately).

Note: Ensure the PortableCapture program is launched only when the microscope is connected to a PC and ready for observations.

Levenhuk DTX 350 LCD Microscope is not compatible with external digital cameras.

Caution: Refer to the specifications table for the correct mains voltage compatibility and avoid plugging a 110V device into a 220V outlet without a converter.

Features:

• Digital microscope with a 4.3" LCD screen
• Magnification: from 20 to 300x
• Ability to record videos and capture images
• Compatible with projectors or computers
• Suitable for precise measurements of distance, area, angles, and radii
• Image processing software included
• Powered by a built-in battery or via a computer USB port

The kit includes:

• Digital microscope
• Tripod
• USB cable
• 1GB microSD memory card
• Software CD
• User manual and lifetime warranty

Specifications:

Product ID: 74768

Brand: Levenhuk, Inc., USA

Warranty: Lifetime

EAN: 5905555004372

Package size (LxWxH): 21x16x12 cm

Shipping Weight: 0.7 kg

Type: Digital

Head: Digital screen/PC monitor

Optics material: Optical glass

Nozzle: 4.3'' color LCD screen (fixed)

Magnification: 20 — 300x

Stage, mm: 120x165

Stage moving range, mm: Fixed

Stage features: With clips, with a measuring scale

Focus: Manual, 5–80mm

Body: Plastic

Illumination: LED

Brightness adjustment: Yes

Power supply: 5V DC via USB cable, built-in 3.7V/2500mAh Li-ion battery

Power supply: Batteries/built-in battery: Yes

Light source type: Upper

Ability to connect additional equipment: Supports SD memory cards up to 32GB, connecting to computer via 2.0 USB port

User level: Beginners, experienced users

Assembly and installation difficulty level: Easy

Software language: English, Russian, Spanish, Italian, Portuguese, French, German, Dutch, Polish, Japanese, Chinese, Korean

Application: For applied research

Research method: Bright field

Maximum resolution: 12Mpx, 9Mpx, 5Mpx, 3Mpx, 1.3Mpx, VGA

Megapixels: 0.3 (interpolated to 2M, 1M, VGA)

Video recording: Yes

Image format: *.jpg

Video format: *.avi

Frame rate: 30 frames per second

Software, drivers: Photo and video capture and processing software with measurement function

Output: microSD card slot, power cable slot

System requirements: Windows 7/8/10/11, Mac 10.12 and later, minimum P4 1.8GHz, 512MB RAM, 64MB video card, USB 2.0 port, CD-ROM

Camera operating temperature range, °С: 0...+45
