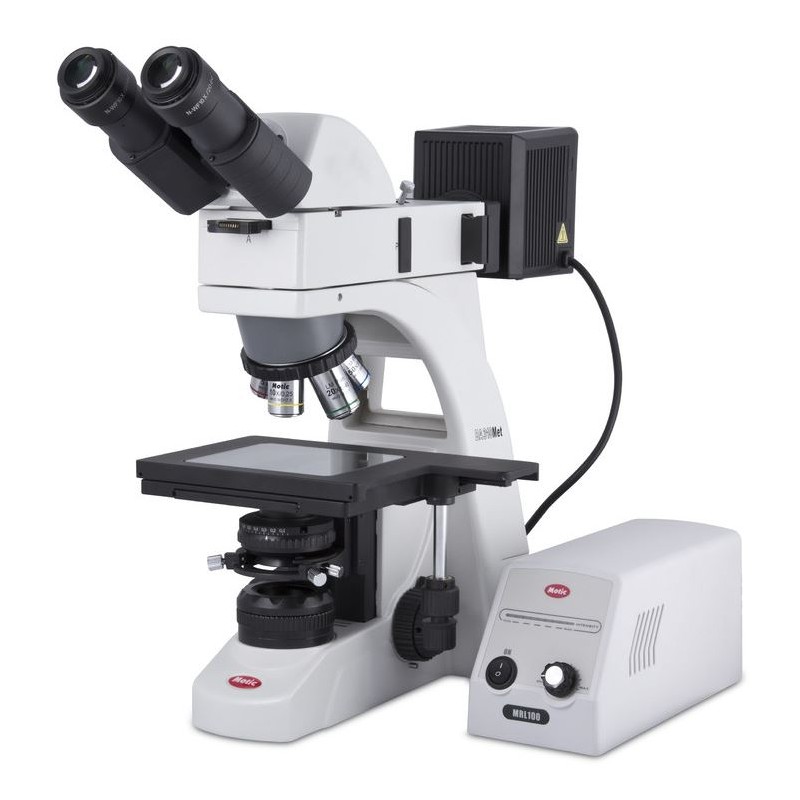

Motic BA310 MET-T binocular microscope, (3 "x2")
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Motic BA310 MET-T binocular microscope, (3 "x2")

The BA310MET series stands as a robust line of incident light microscopes, offering both affordability and powerful performance. Designed to meet the demands of industrial quality control for opaque materials such as minerals and metal samples, it also excels in educational settings within engineering and material professions.

5122.79 $
Tax included

4164.87 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

BA310MET Series: A Comprehensive Metallurgical Microscope Solution

The BA310MET series stands as a robust line of incident light microscopes, offering both affordability and powerful performance. Designed to meet the demands of industrial quality control for opaque materials such as minerals and metal samples, it also excels in educational settings within engineering and material professions.

In industrial environments, reliability and ease of use are paramount. Motic has meticulously addressed these needs to optimize the BA310MET's functionality. The Epi-Illuminator, equipped with a 12V/50W Halogen illumination system, delivers adjustable and potent lighting suitable for all reflective samples. Additionally, easy bulb replacement allows for versatility with LED modules available in different color temperatures (4500K, 6000K). With built-in field and aperture diaphragms, image quality is optimized by reducing stray light and enhancing contrast.

The BA310MET incorporates Motic's new Long-Working Distance LM Plan objectives, ensuring optimal image contrast through a multi-layer lens coating. Coupled with a fully corrected tube lens, this setup eliminates color fringes, providing digital images as sharp as those seen through the eyepieces. The design includes a standardized ISO photo exit and offers options for various stage sizes and configurations to accommodate different applications, including transmitted light usage.

For maximum sample size compatibility, the BA310MET-H model is recommended. Motic introduces a new generation of Metallurgical LM Plan objectives for the BA310MET series, featuring Plan Achromatic objectives made of high-quality glass. These objectives follow the successful Motic CCIS® Optical concept, ensuring improved contrast and image quality. The ball bearing 5-fold nosepiece guarantees parcentration and repeatability with every magnification change, enhancing user experience and efficiency.

BA310MET / MET-T Standard Specifications:

Optical System: Color Corrected Infinity Optical System [CCIS®]

Eyepieces: N-WF 10X/20mm, with diopter adjustment

Observation Tubes: Widefield binocular 30° [F.N. 20], Widefield trinocular 30° [F.N. 20] - light distribution 100:0/20:80

Nosepiece: Reversed quintuple

Objectives: CCIS© LM Plan 5X, 10X, 20X, 50X; 100X (optional), High NA objectives CCIS© EC-M Plan 20X and 50X (optional)

Stage: Various surface sizes and movement ranges available

Focus: Brass gears; Z-Axis movement 30mm, Fine focus 2μm minimum increment

Incident Light: 12V/50W Halogen illuminator with external power supply, Halogen bulb exchangeable with 3W LED (4500K, 6000K), >20,000 hrs life span

Transmitted Light: Built-in 6V/30W Halogen Koehler illumination, Halogen bulb exchangeable with 3W LED (4500K, 6000K), >20,000 hrs life span

Condenser: N.A. 0.85; focusable and centrable

Specimen Thickness: Max. 30mm



Specifications:

Optics: Infinity corrected, Plan achromatic objectives

Magnification: 500X

Eyepiece: 10X

Lighting: Incident light and transmitted light, interchangeable halogen and LED

Mechanics: Binocular build, Coarse and fine focusing, 30° oblique viewing, 360° rotating head, Cross table specimen stage

Special Features: Dust cover bag, Wide-angle eyepiece

General: Grey/black color, Weight: 12700g, Dimensions: 200mm (W) x 450mm (H) x 508mm (L)

Field of Application: Industry, Metallurgy, Mineralogy, Mechanical engineering, Materials technology, Construction materials industry
