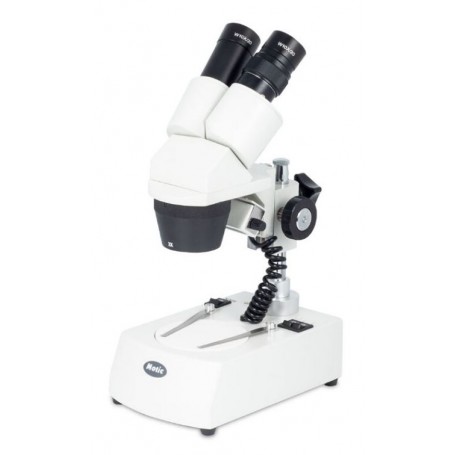

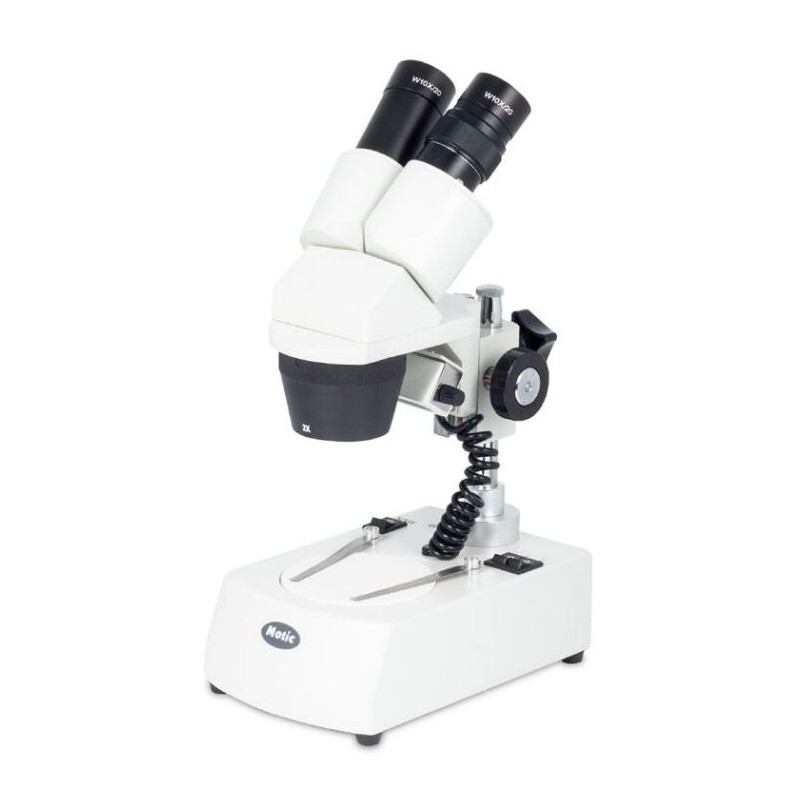

Motic Stereo microscope ST-30C-2LOO, 20x/40x

ST-30 Series: Stereo Microscope Series

The ST-30 Series by Motic offers a selection of six distinct models tailored for educational settings and rapid quality assessments. Each microscope features a turret magnification changer housing 2X and 4X objectives. You have the flexibility to opt for either the fixed rear-facing head, the newly designed forward-facing head, or the 360° rotatable head model. Additionally, you can select between traditional tungsten illumination or the modern cordless LED lighting system.

Main Features

• Binocular head inclined at 45°
• Objective turret magnification changer (2X, 4X)
• Choice between tungsten or LED illumination

ST-30C 2LOO

Stereo Microscope Series

• 45° inclined rear-facing binocular head with diopter adjustment on the left eyetube
• Widefield eyepieces WF10X/20mm
• Magnification changer with 2X and 4X options; objectives are parfocal, parcentric, and achromatic, with magnification changed by rotating the turret 180° to the click stop
• Sturdy rack & pinion focusing block with a slip clutch
• Pole-stand with incident and transmitted 12V/10W tungsten illumination
• Comes standard with 80mm frosted glass, black, and white stage plates.

Specifications

Optics

Magnification: 40x

Eyepiece: 10x/20

Lighting: Incident and transmitted light

Mechanics

Focusing: Coarse movement

Viewing Posture (°): 45° oblique viewing

Specimen Stage: Included

General

Series: ST-30

Field of Application: Education

Area of Application: School Use
