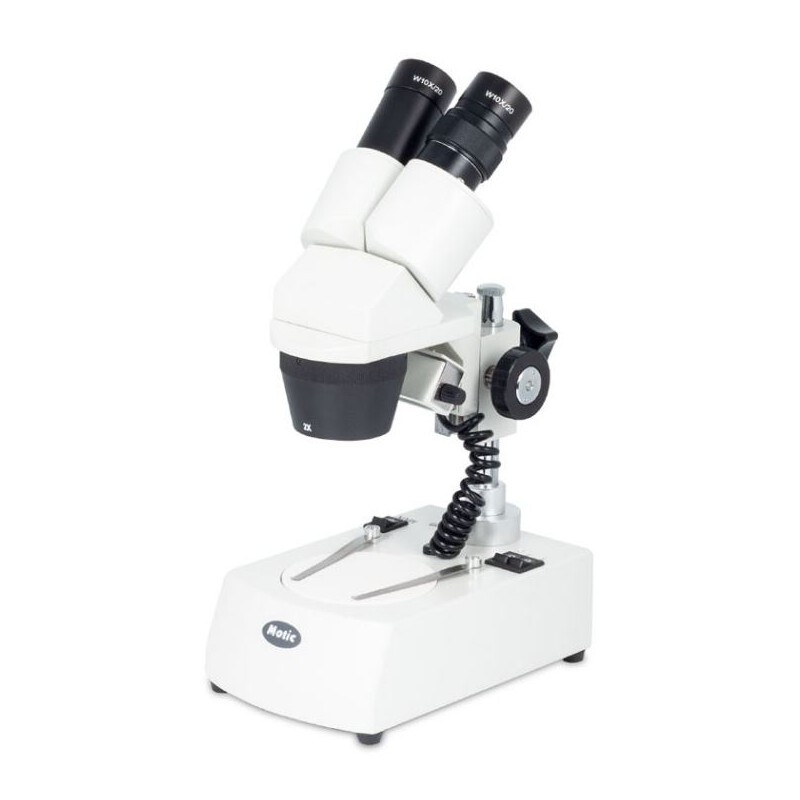

Motic Stereo microscope ST-36C-6LED Cordless, 20x/40x

ST-30 Series: Stereo Microscope Series

The ST-30 Series from Motic comprises six distinct models, meticulously crafted for educational settings and efficient quality assessment tasks. Each microscope is equipped with a turret magnification changer featuring 2X and 4X objectives. You have the flexibility to select from a fixed rear-facing head, a newly introduced forward-facing head, or the versatile 360° rotatable head model. Moreover, you have the option to tailor the illumination according to your preference, choosing between the traditional tungsten lighting and the cutting-edge cordless LED illumination.

Main Features

• Binocular head inclined at 45°
• Objective turret magnification changer (2X, 4X)
• Choice between tungsten or LED illumination

ST-30C 2LOO

Stereo Microscope Series

• Rear-facing binocular head inclined at 45°, with diopter adjustment on the left eyetube
• Widefield eyepieces WF10X/20mm
• Magnification changer offering 2X and 4X options; objectives are parfocal, parcentric, and achromatic, with magnification adjustment by rotating the turret 180° to the click stop
• Robust rack & pinion focusing block with a slip clutch
• Pole-stand featuring incident and transmitted 12V/10W tungsten illumination
• Standard provision includes 80mm frosted glass, along with black and white stage plates.

Specifications

Optics

Magnification: 40x

Eyepiece: 10x/20

Lighting: Incident and transmitted light

Capacity

Lamp Type: LED

Mechanics

Focusing: Coarse movement

Viewing Posture (°): 45° angled eyepiece, 360° rotatable

Specimen Stage: Included

General

Series: ST-30

Field of Application: Education, Parasite analysis, Tinker

Area of Application: School Use
