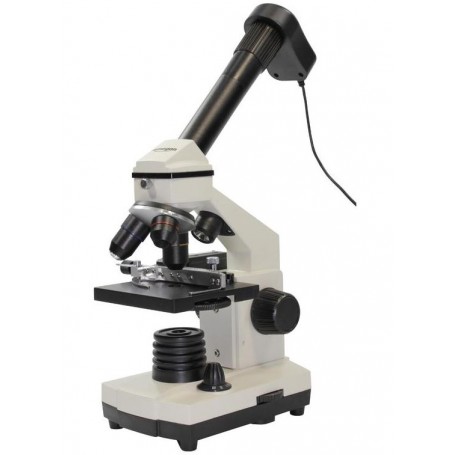

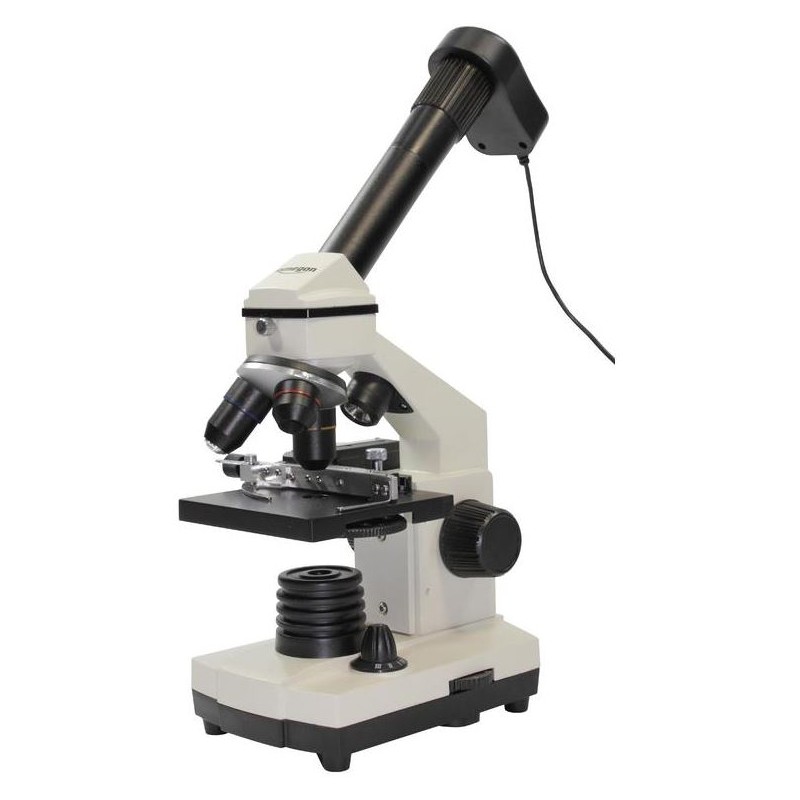

Omegon Microscope MonoView, MicroStar, achromat, 1280x, LED

Introducing Omegon Microstar: Simplifying Microscopy for Everyone

Whether for educational purposes, university studies, or leisurely exploration, the Omegon Microstar makes microscopy accessible and enjoyable. Dive into the microscopic world effortlessly, observing plants, pollen, insects, and more.

Easy Operation:

Begin observing without the need for complex slide preparations. Simply place your specimen on the microscope stage. With both transmitted and incident LED lighting options, opaque objects become easy to observe. LED technology ensures long-lasting illumination, adjustable to your desired brightness level.

Comfortable Viewing:

Enjoy comfortable observation with the microscope's 45° angled eyepiece and 360° rotatable head. Easily switch between magnifications ranging from 20x to 1280x using the lens turret with 4x, 10x, and 40x objective lenses. Wide-angle eyepieces provide a broad field of view for immersive observation.

Precise Stage Adjustment:

Securely position your slides on the microscope stage, equipped with a vernier scale. Precisely maneuver your specimen in two axes using knurled screws, even at high magnifications.

Enhanced Contrast:

Utilize the five color filters and sub-stage condenser to enhance contrast, revealing intricate details with clarity.

Comprehensive Accessories:

Get started right away with included accessories:

• Digital PC eyepiece for image transfer
• Image processing software
• Barlow lens for higher magnification
• Microtome
• Prepared slides
• Hatchery
• Shrimp eggs, sea salt, yeast
• 10 slides and cover slips
• Carrying case and power supply

Specifications:

Optics

Lighting: Incident light and transmitted light

Lamp Type: LED (6V, adjustable)

Magnification: 1280 (20x)

Lens Type: Achromatic

Image Scale: 4, 10, 40

Eyepiece: 5, 16 (Wide-field eyepiece, extra: 2x Barlow lens)

Mechanics

Viewing Posture: 45° oblique viewing, 360° rotating head

Focusing: Coarse movement

Working Distance: 30mm

Specimen Stage: Cross table with vernier scale

Type of Build: Monocular

Special Features

Filter Holder: Yes

Built-in Digital Camera: Yes

Dust Cover Bag: Yes

Camera

Resolution Photograph (Pixel): 640x480

Interface: USB

General

Suitable from: 9 years and up

Length: 235mm

Width: 180mm

Height: 320mm

Weight: 1100g

Series: MonoView

Color: Gray
