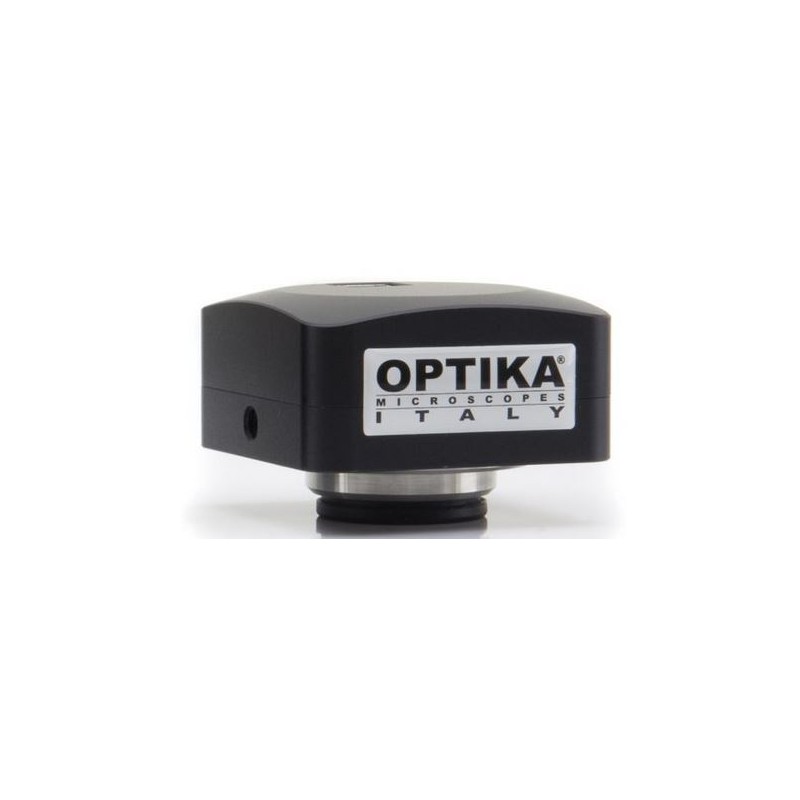

Optika Camera C-B1, color, CMOS , 1/3", 1.3 MP, USB2.0

USB Cameras – B Series

In today's technological landscape, cameras have become indispensable tools. OPTIKA introduces its B Series, offering exceptional digital imaging solutions.

The OPTIKA B Series presents a cost-effective option integrated with cutting-edge sensor technology, delivering vibrant colors and exceptional contrast for breathtaking images. Featuring an Aptina CMOS sensor renowned for its outstanding color reproduction, high frame rates, and versatile resolutions, this series caters to diverse customer needs. With its user-friendly design, installation and operation are intuitive, making it ideal for educational and routine microscopy tasks, including use as eyepiece cameras without the need for additional adapters on monocular and binocular microscopes. Compatible with major operating systems such as Windows, iOS, and Linux, the OPTIKA B Series ensures broad accessibility.

SUPERIOR PERFORMANCE AND DETAIL FROM STANDARD TO HIGH RESOLUTION. OPTIKA B cameras boast cost-effective sensors that capture vivid colors and produce significant contrast, resulting in remarkably accurate images. Their simplicity and convenience make them well-suited for educational and routine applications across various fields.

USER-FRIENDLY USB CAMERAS FOR GENERAL USE. Simply connect the camera to a PC via USB and install the OPTIKA software tailored to your needs. The comprehensive capabilities of OPTIKA software suites facilitate intuitive operations for live viewing and image/video capturing for novice users, while providing advanced functions such as HDR, EDF, stitching & tiling, and customized report generation for experienced users. Compatible with major operating systems including Windows, Mac OS, and Linux.

C-B1: Cost-Effective CMOS Camera for Routine Applications

The C-B1 camera is designed for routine applications, offering a cost-effective solution equipped with an Aptina CMOS sensor renowned for excellent color reproduction. Key features include:

• 1.3 MP resolution
• Compatible with monocular, binocular, or trinocular microscopes
• Includes 3 software packages (OPTIKA Vision Lite, OPTIKA Lite View, and OPTIKA Pro View) for Windows, with Lite versions available for Mac OS and Linux
• Equipped with optimized field of view lens, 30 and 30.5 mm eyepiece adapter rings, and calibration slide for establishing measurement baseline

Specifications:

Digital camera resolution: 1.3 MP (1280 x 1024)

Signal output: USB 2.0

Sensor Size: 1/3”

Sensor technology: CMOS

Sensor type: Aptina CMOS

Image format: 5/4

Pixel size: 3.6 x 3.6 µm

Frame rate full resolution: 15 fps (1280 x 1024)

Frame rate other resolutions: 50 fps (320 x 256)

Sensitivity: 1 V/lux-second

Signal/noise ratio: 44 dB

Dynamic range: 71 dB

ADC conversion: 8 Bit

Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit

Exposure Time: 0.14 msec - 2 sec

Binning: 1x1; 2x2; 4x4

IR filter: 380-650 nm (IR-cut filter)

Camera power: PC USB

C-mount: YES

Accessories:

Optical adapters: 0.37x (for 23 mm eyepiece tube)

Adapters for Binocular & Monocular microscopes: 30 mm & 30.5 mm diameter

Calibration Slide: YES

Always Included: 1.8 m USB cable

Environmental Specifications:

Working temperature: -10°C to +50°C

Storage temperature: -20°C to +60°C

Relative Humidity: 30% to 80%

Storage Humidity: 10% to 60%

Dimensions: 58 x 58 x 36.4 mm

Weight: 0.18 Kg

System Requirements:

Operating System: Win XP / Win Vista / Win 7 / Win 8 / Win 10 (32 or 64 bit), OSx (Mac OSx) starting from 10.7.5, Linux

CPU: Equal to Intel Core2 2.8GHz or higher

RAM: 2 GB or more

USB port: USB 2.0, at least two ports
