Optika Camera C-P6FL Pro fluorescence color, CCD, 1", 6 MP, USB 3.0

USB Cameras – PRO Series

In today's world, cameras are indispensable tools, especially for demanding users and professional applications. OPTIKA presents its PRO Series, offering a diverse range of solutions tailored to various imaging needs, from routine to high-end requirements. Equipped with top-class SONY sensors, renowned for their true-to-life color reproduction, these cameras ensure stunning images with incredibly accurate colors, just as you perceive them. For specialized applications requiring different observation methods, high sensor size cameras are preferred for their high sensitivity, delivering a high signal-to-noise ratio, and a large dynamic range. OPTIKA Pro Cooled cameras provide excellent sensitivity, being Peltier-cooled to 45°C below ambient, with scientific-grade CMOS sensors, ensuring optimal performance in low light conditions, ultra-long exposure times, and impressive color fidelity. They support all major operating systems like Windows, iOS, and Linux. Customized cameras are also available upon request.

CAPTURE VIVID TRUE-TO-LIFE COLOR WITH PINPOINT ACCURACY

OPTIKA PRO cameras boast professional sensors engineered to capture vivid colors and exceptional contrast, resulting in stunning images. The advanced capabilities of OPTIKA software suites, designed to exceed the expectations of experienced and professional users, offer advanced functions like white/black balancing, multi-channel fluorescence, pixel shift, HDR, EDF, stitching & tiling, measurements, and customized report generation.

PROFESSIONAL CAMERAS WITH HIGH SENSITIVITY, LOW NOISE, AND IMPRESSIVE CAPABILITIES

Operating in critical conditions, especially low light environments, demands cameras with high sensor sizes, sensitivity, and dynamic range to yield optimal results. OPTIKA's PRO cameras offer these essential features, providing options for traditional CCD sensors or the latest scientific-grade CMOS sensors. For unparalleled performance and unmatched quality, Peltier-cooled cameras, particularly monochromatic ones, are recommended.

HIGH-SPEED LIVE VIEW CAMERAS WITH USB3.0 DATA TRANSFER

USB 3.0, the latest generation of USB technology, offers several key performance benefits for microscopy. With data transfer speeds up to ten times faster than USB 2.0, USB 3.0 cameras ensure smooth live viewing and efficient workflow, ideal for various fields, from research labs to industrial applications and educational purposes. These versatile cameras offer multiple resolutions while maintaining significant speed.

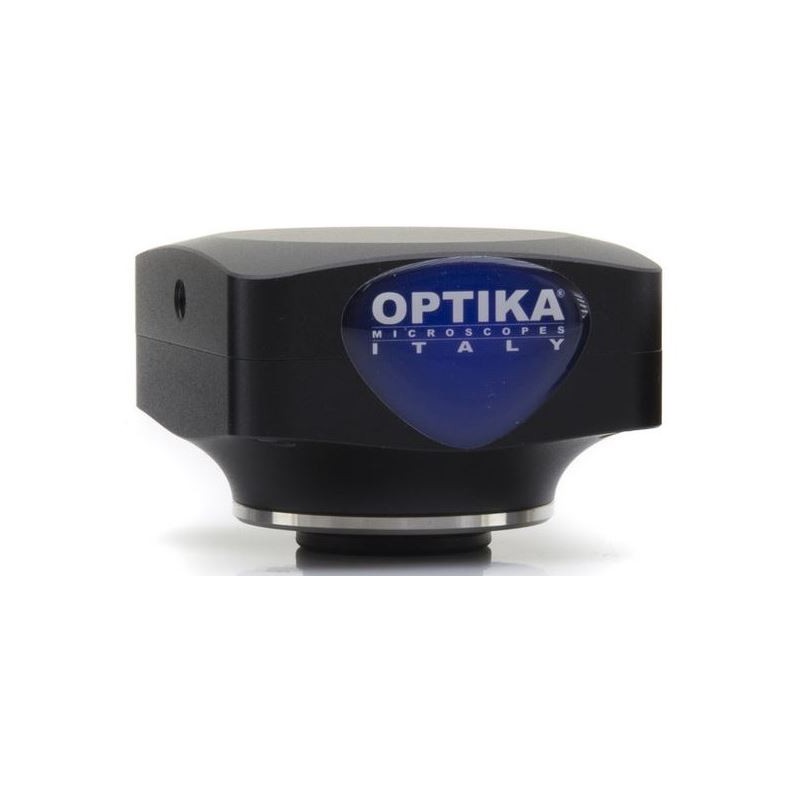

C-P6FL: USB 3.0 C-mount Microscope Camera

Camera Specifications:

Digital camera resolution: 6.0 MP (2748 x 2200)

Signal output: USB 3.0

Sensor Size: 1”

Sensor technology: CCD

Sensor type: SONY ExView HAD

Image format: 4/3

Pixel size: 4.54 x 4.54 µm

Frame rate full resolution: 7.5 fps (2748 x 2200)

Frame rate other resolutions: 14 fps (1374 x 1092)

Sensitivity: 1000 mV at 1/30sec

Dark signal: 8 mV at 1/30sec

ADC Conversion: 8 Bit - 14 Bit

Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit

Exposure Time: 0.06 msec - 1000 sec

Binning: 1x1

IR filter: 380-650 nm (IR-cut filter)

Camera power: PC USB

C-mount: YES

Accessories:

Calibration Slide

Environmental Specifications:

Working temperature: -10 up to +50°C

Storage temperature: -20 up to +60°C

Relative Humidity: 30% to 80%

Storage Humidity: 10% to 60%

Dimensions: 68 x 68 x 46.4 mm

Weight: 0.32 Kg

System Requirements:

Operating System: Windows XP / Vista / 7 / 8 / 10 (32 & 64 Bit), OSx (Mac OSx), Linux

PC Requirements: CPU Equal to Intel Core2 2.8GHz or higher, RAM: 2GB or more, USB port: USB3.0, Monitor: 17” or more, CD-ROM
