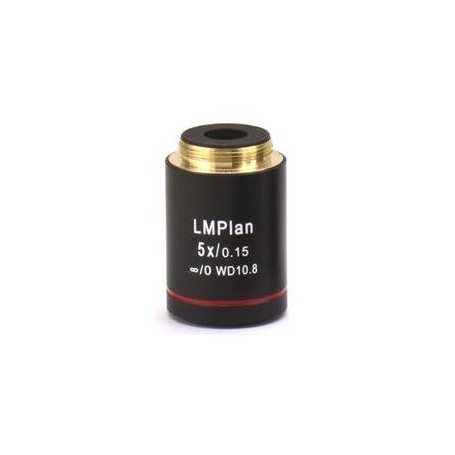

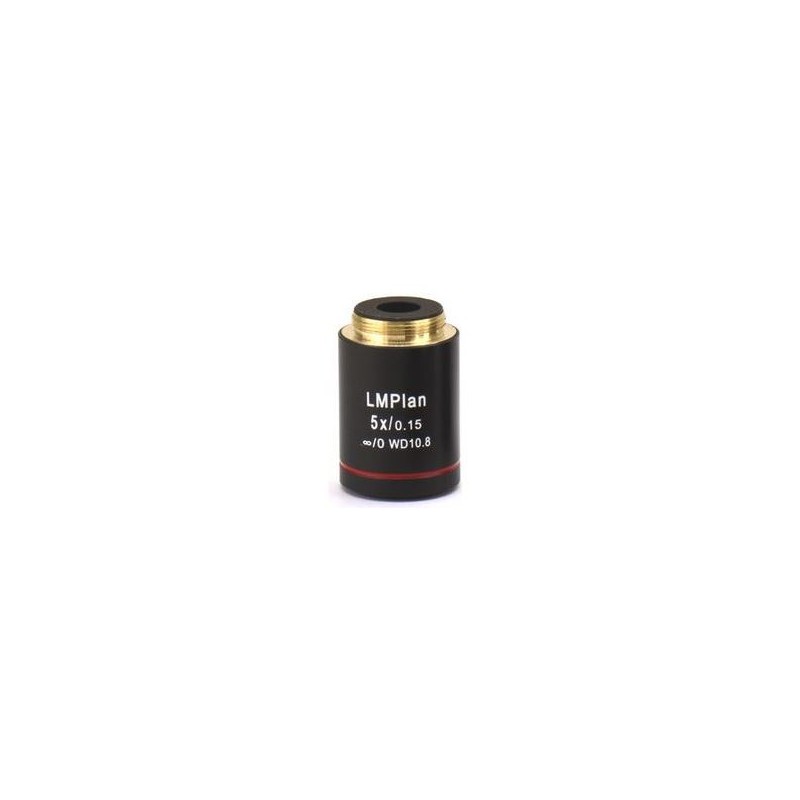

Optika M-1090, IOS LWD U-PLAN POL 5X/0.15 microscope objective
Objectives designed for brightfield, transmitted, and incident polarization microscopy
270.81 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Model: IOS LWD POL Planachromatic
Objectives designed for brightfield, transmitted, and incident polarization microscopy
Magnification / Numerical Aperture
- 5X / 0.15 (M-1090)
- 10X / 0.30 (M-1091)
- 20X / 0.45 (M-1092)
- 50X / 0.55 (M-1093)
Features:
- Long working distance
- Strain-free for polarized light
- Flat field correction for 25 mm field number
- Planachromatic spherical and chromatic corrections
- Mechanical tube length: IOS (infinity-corrected tube length)
- Cover Glass Thickness: 0 mm (no cover glass)
Working Distance:
- 5X: 10.8 mm
- 10X: 10 mm
- 20X: 4 mm
- 50X: 7.9 mm
Additional Details:
- Screw Thread: RMS Standard
- Parfocal Distance: 45 mm
SPECIFICATIONS
Optics
Magnification: 5
Optical system: Infinity
Infinity corrected: Yes
Colour correction: Achromatic
Cover glass correction: Yes
Capacity
Numerical aperture: 0.15
Magnification: 5x
Mechanics
Working distance (mm): 3.71
Matches the Series
B-1000: Yes
Data sheet
