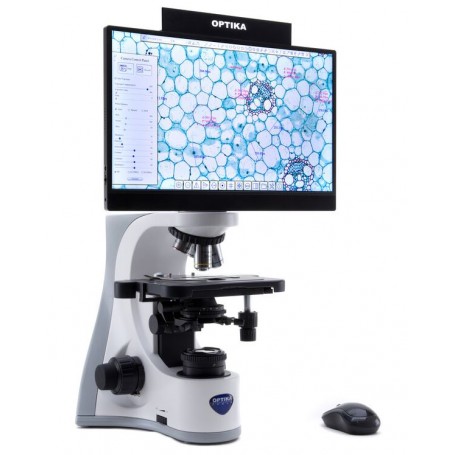

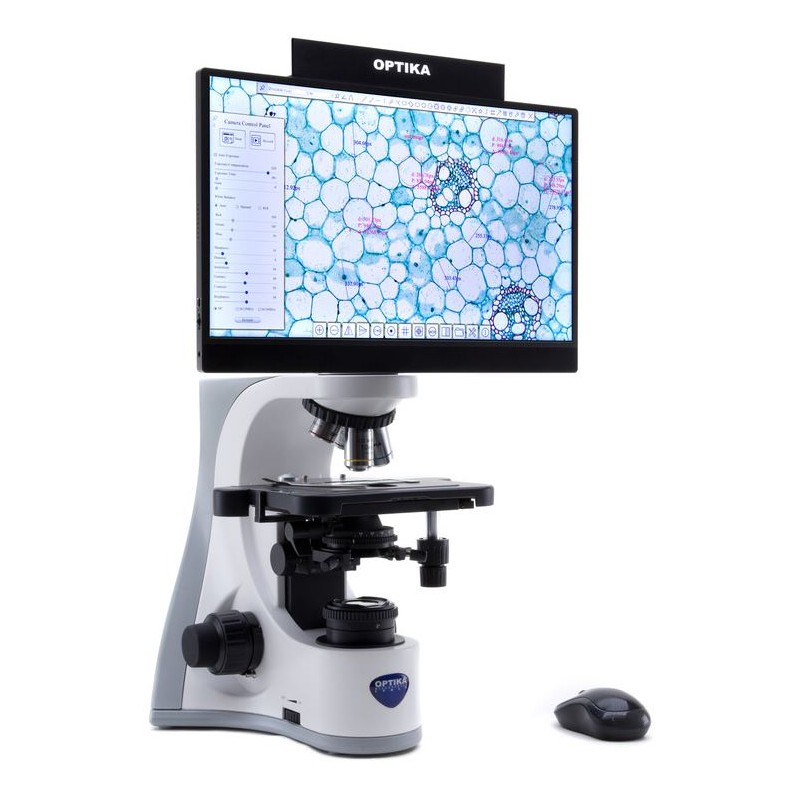

Optika Microscope B-510BF4K, digital, W-PLAN IOS, 40x-1000x, 4K digital head
The OPTIKA B-510 series represents the pinnacle of advanced routine microscopes, meticulously engineered for efficient analysis in transmitted light applications while considering all user-relevant factors. This series boasts user-friendly operation, robustness, durability, and exceptional resolution, providing high-contrast and sharp images with its impressive IOS W-PLAN optics, featuring infinity corrected optics (IOS) for optimal cost-effectiveness, high contrast, and resolution.
2626.09 $ net price (non-EU countries)
100% secure payments
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Olesia Ushakova
Product Manager /
+48695005004 +48695005004 +48695005004
[email protected]
Description
In summary:
- Digital ultra HD 15.6” 4k screen
- Infinity corrected IOS W-plan optics
- Highly efficient X-LED3 (3.6 W) with manual brightness control
- Swing-out and retractable condenser with centring system
The OPTIKA B-510 series represents the pinnacle of advanced routine microscopes, meticulously engineered for efficient analysis in transmitted light applications while considering all user-relevant factors. This series boasts user-friendly operation, robustness, durability, and exceptional resolution, providing high-contrast and sharp images with its impressive IOS W-PLAN optics, featuring infinity corrected optics (IOS) for optimal cost-effectiveness, high contrast, and resolution. It fulfills the needs of laboratories requiring top-quality optics for routine microscopy and guarantees field flatness up to F.N.22.
The OPTIKA B-510BF4K integrates seamlessly into the OPTIKA microscope lineup as an innovative instrument with remarkable features. It caters specifically to fields such as pathological anatomy, medical universities, haematology, cytology, and veterinary medicine, addressing scenarios where intensive and prolonged use might lead to operator fatigue. With its camera performance and high-resolution screen, it enables observation of samples with an unprecedented fidelity. Moreover, it stands as an exceptional and cost-effective alternative to multi-head discussion microscopes.
Package Contents:
- Tripod
- 4 objectives
- Power cable
- Camera with power supply
- Camera adapter
- Wireless mouse
- HDMI monitor with power supply
- HDMI cable
- HDMI-to-mini HDMI L-adapter
- USB cable
- SD card
- Micrometer slide
- Dust cover
- Tools
- Immersion oil
SPECIFICATIONS
Optics
Lighting
Transmitted light
Condenser
5-fach, umgekehrt
Lens Type
Plan, achromatic
Objective 1
IOS W-PLAN 4x
Objective 2
IOS W-PLAN 10x
Objective 3
IOS W-PLAN 40x
Objective 4
IOS W-PLAN 100x (oil)
Optical System
Infinity
Infinity corrected
Capacity
Build Type
Monitor
Brightness Control
Yes
Mechanics
Build Type
Digital
Specimen Stage
Cross table
Revolver
5
Focusing
Coarse and fine movement (Coaxial coarse & fine - 200μm/turn), upper stop, adjustable tension
Camera
Megapixel
8 MP
Frame Rate (fps)
20 fps
Resolution Photograph (Pixel)
3480x2160
Resolution Video (Pixel)
3480x2160
General
Series
B-510
Weight (g)
10500
Height (mm)
570
Width (mm)
360
Length (mm)
390
Field of Application
Medicine
Yes
Area of Application
Biology, zoology & botany
Yes
High magnification (100x)
Yes
Pathology and histopathology
Yes
Veterinary medicine
Yes
Internal medicine
Yes
Urology
Yes
Miscellaneous
Supplier Product Number
B-510BF4K
Data sheet
