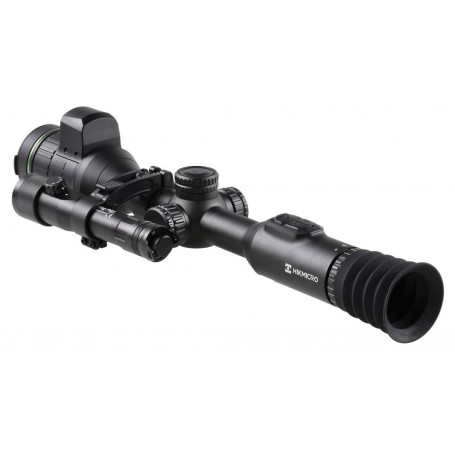

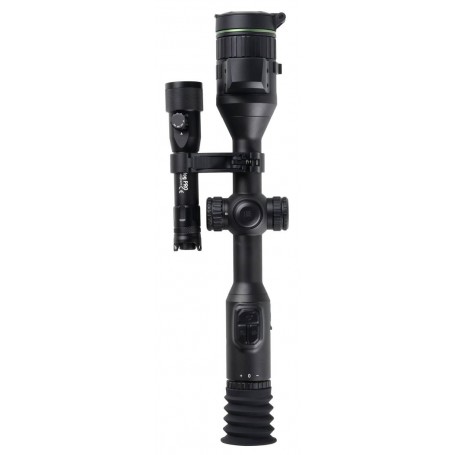

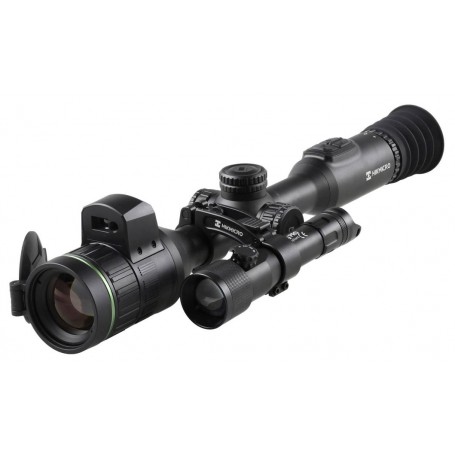

Hikvision Hikmicro Alpex 4K LRF + laser illuminator X-hog Pro 850/940 nm

Featuring a 50mm focal length and an adjustable aperture ranging from F1.2 to F2.5, alongside a cutting-edge 4K UHD detector, and seamlessly integrated with a 1000m laser range finder, the A50EL offers hunters in diverse terrains, whether it be open fields or dense forests, an optimal field of view and an array of exceptional advantages. Additionally, for nocturnal pursuits, hunters have the flexibility to utilize their own IR Torch.

Immersive Visuals with Unprecedented Detail

Equipped with the HIKMICRO ALPEX 4K, boasting a 3840 x 2160 ultra-high-definition CMOS detector, users are treated to breathtaking image clarity round the clock. With a basic magnification of 3.5x and a wide field of view of 15.3m at 100m, it excels in target detection and identification across all magnification levels.

Enhanced Viewing Comfort

The HIKMICRO ALPEX 4K features a large 0.49’’ OLED display with a resolution of 1920x1080, providing users with immersive and visually pleasing observation experiences during their hunting endeavors.

Improved Target Recognition

Thanks to its F1.2-2.5 adjustable aperture, the HIKMICRO ALPEX 4K ensures superior target identification in various lighting conditions. The introduction of the F2.5 large aperture effectively mitigates overexposure and enhances depth of field, revolutionizing visual clarity even during daylight hunts.

Precision Distance Measurement for Efficient Hunting

The integrated laser rangefinder in the HIKMICRO ALPEX 4K delivers accurate distance readings up to 1000m, with an impressive precision of ±1 meter, facilitating ethical and precise shots.

Advanced Ballistic Calculation for Long-Range Precision

The ALPEX 4K introduces HIKMICRO's pioneering ballistic calculation feature, enabling pinpoint accuracy across vast distances. By inputting relevant data regarding ammunition, scope, and environmental factors, users can transform their ALPEX 4K into a highly reliable tool for long-range shooting, ensuring precise aiming points are calculated based on exact distance measurements provided by the built-in laser rangefinder.

Versatile Reticle Options

With 5 reticle groups, offering 8 colors and 10 reticle types, users have a plethora of options to tailor their aiming preferences. Furthermore, up to 5 reticle profiles can be configured and saved for added convenience.

Extended Battery Life for Uninterrupted Hunts

The HIKMICRO ALPEX 4K guarantees uninterrupted hunting experiences with its upgraded power supply system. With an external replaceable and rechargeable battery, users can enjoy extended usage without concerns of battery depletion.

Instant Readiness for Action

Boasting a rapid boot time of just 3 seconds, the HIKMICRO ALPEX 4K ensures users are always prepared to capture crucial moments during their hunts.

Seamless Highlights Capture

The recoil-activation feature enables seamless video recording before and after each shot, facilitating quick review and analysis of hunting encounters. Recorded videos are conveniently saved in the local album for effortless access.

Classic Design with Superior Durability

Featuring a timeless design, the HIKMICRO ALPEX 4K seamlessly integrates with 30mm standard mount rings. Its robust aluminum alloy housing ensures durability, capable of withstanding harsh environmental conditions.

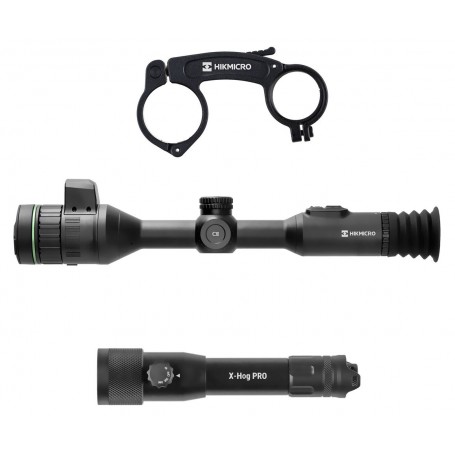

Package Contents:

• Hikvision Hikmicro A50EL Alpex 4K LRF Night-vision sight with IR mount (x1)
• Quick Start Guide (x1)
• Type-C Cable (x1)
• Lint-free Cloth (x1)
• Battery (x1)
• Battery Charger (x1)
• Bag (x1)

Specifications:

Product Model: A50EL

Main Features:

Max. Resolution: 3840 ×2160

Frame Rate: 50 Hz

Lens (Focal Length): 50 mm, F1.2-2.5 Adjustable Aperture

Min. Focusing Distance: 10 m

Field of View: 8.8° ×5.0°/15.3m × 8.6m @100m

Magnification: 3.5×-28.0x (8x); Support Continuous Zooming

Detection Range: Day: 1000m

Image Display:

Display: 1920 × 1080, 0.49 inch, OLED

Image Mode: Day, Night

Exit Pupil: 6 mm

Eye Relief: 55 mm

Diopter (Range): -5 D to 5 D

General:

Protection Level: IP67

Weight: 1176 g without External Battery

Dimension: 439.8 mm × 89.2 mm × 84.0 mm

Mounting: Standard 30mm

Working Temperature: -30°C to 55°C (-22°F to 131°F)

System:

Record Video: On-board video recording

Capture Snapshot: Yes

Hotspot: Yes

Standby Mode: Yes

Storage: Built-in EMMC (64 GB)

PIP: Yes

Distance Measurement: Yes

Audio Recording: Yes

Recoil-activation Recording: Yes

Freeze Zeroing: Yes

Record Video Resolution: 1920 × 1080

Max. Recoil: 1000g/0.4ms

Ballistic Calculation: Yes

Zeroing Profiles: 5

Power Supply:

Battery Type: Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable 18650 Battery (External)

Battery Operating Time: 11 hours of Continuous Running (@25°C, Hotspot off)

Power Supply: 5 V DC/2 A, USB Type-C Interface

Laser Rangefinder:

Safety Class for Laser: Class 1

Wavelength: 905 nm

Max. Measuring Range: 1000 m

Measurement Accuracy: ±1m

Min. Measuring Range: 10 m

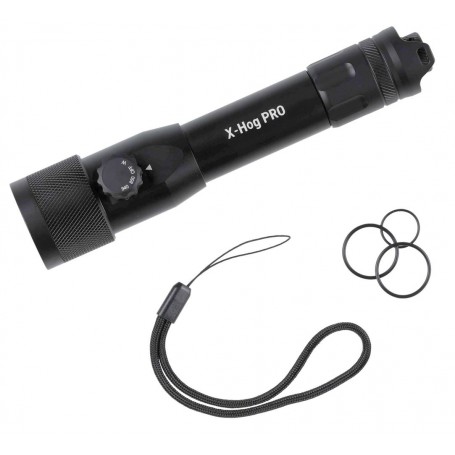

X-Hog PRO

Improving night vision performance is straightforward with the X-Hog Pro illuminator, featuring advanced technology for demanding hunting scenarios. This illuminator offers customizable light wavelengths, smooth zoom adjustment, and a replaceable VCSEL laser diode, ensuring optimal performance without excessive power consumption. Crafted from lightweight and durable T6061 aluminum, it withstands harsh weather conditions while delivering a symmetrical light beam extending over 1000 meters.

Key Features of the X-Hog Pro illuminator include:

• Two VCSEL diodes covering 850nm and 940nm bands for enhanced versatility.
• Additional diode for visible light, doubling as a traditional flashlight.
• Easily interchangeable diode module by rotating the flashlight head.
• Designed based on feedback from Polish hunters, particularly for wild boar hunting.
• HA-III hard anodized finish for added durability.
• Silent rotary switch for flow adjustment.
• LED battery level indicator for easy monitoring.
• 3W VCSEL laser diode for minimized heating and efficient power usage.
• Extendable head with zoom adjustment for variable focal length.
• Convex glass lens for optimal light transmission.
• Double-sided leash hook for secure attachment.
• IPX6 waterproof rating for reliable performance in any weather.

The X-Hog Pro utilizes VCSEL diodes with wavelengths of 850nm and 940nm, offering flexibility in illumination while maintaining stealth and efficiency. The VCSEL diode's stability against temperature changes ensures consistent performance even in challenging conditions. With just 3W of power, the illuminator remains cool during prolonged use. Moreover, users can easily replace the laser diode module, ensuring long-term reliability.

The 850nm infrared radiation provides long-range visibility of over 1000 meters, ideal for hunting and observation. Meanwhile, the 940nm range ensures maximum discretion, while visible light mode facilitates convenient game illumination. Compatible with popular digital night vision devices like Infiray TD50L, Pulsar C50, Hikmicro Alpex, and Pard 008, the X-Hog Pro adapts to various setups seamlessly.

Featuring a convex lens and variable focal length, the illuminator allows smooth adjustment of the infrared beam width, catering to different hunting situations. Hunters can precisely focus the light or diffuse it as needed, with adjustable intensity ranging from 2% to 100%. The rotary switch at the device's rear enables seamless intensity adjustment, while the LED battery level indicator provides convenient battery status monitoring.

Constructed from T6061 aircraft aluminum alloy, the X-Hog Pro combines durability with lightweight design, weighing only 170g (including battery). Its IPX6 waterproof rating ensures reliability in any weather condition, making it an essential tool for hunters seeking optimal performance in the field.
