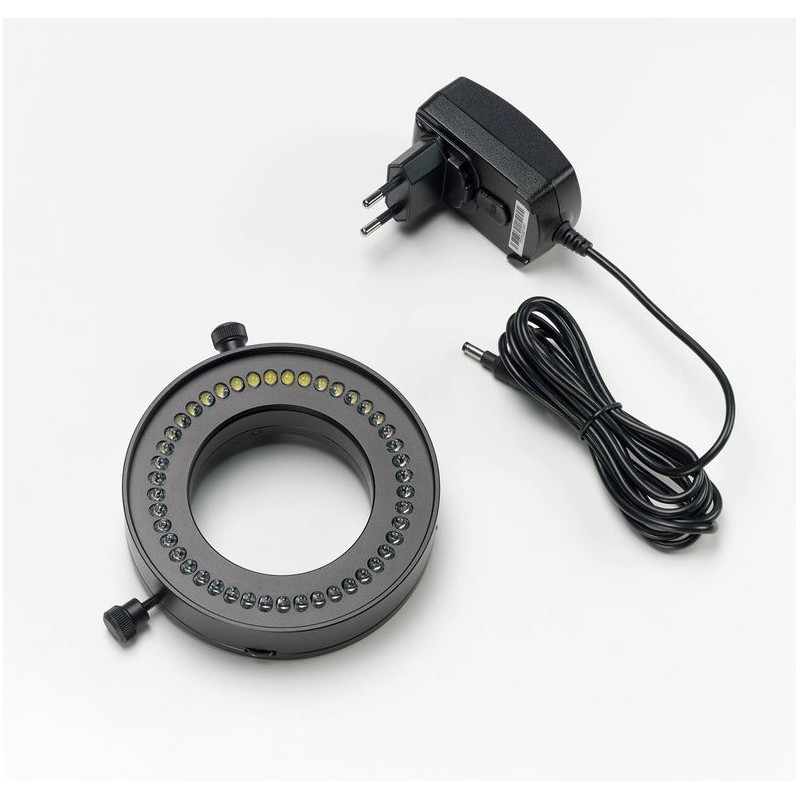

Schott EasyLED Ring light system, (RL) i 66mm incl. power supply

EasyLED Systems

Compact and Ergonomic Illumination Systems for Stereo Microscopy and Macroscopy

Utilizing cutting-edge technologies, the EasyLED product line integrates high-brightness LEDs with controller electronics directly into the illuminator's head. This integration offers effortless, ergonomic operation coupled with exceptional value for money.

Equipped with neutral white LEDs (5600 K), EasyLED ensures excellent color fidelity in captured images.

Robust metal housings and well-designed heat sinks enable maximum brightness and an extended lifetime of 50,000 hours.

Features:

• No separate controller box for ring light and backlight. Compact controller box for single and double spotlights.
• Ringlight Plus version available with basic segment features and segment rotation. Easy and intuitive operation via integrated "jog dial" wheel.
• Ergonomic operation (no need to remove eyes from the eyepieces).
• Continuous dimming from 0 to 100%.
• All devices are separately dimmable.
• Wide input range power supply (100 - 240 V).
• Worldwide plug (clip system).
• High-quality functionality at low costs.
• Manufactured in the EU.

Ringlight Plus:

• 48 high-brightness LEDs
• Color temperature: 5,600 K
• Easy adaptation to various microscope objectives (Ø 66 mm/adaptors available)
• Integrated controller for continuous dimming (0 – 100%) and separate on/off switch
• Basic segment features and segment rotation
• Integrated "jog dial" wheel for easy and intuitive operation
• Wide range of working distance: 50 – 130 mm
• Maximum illuminance: 140 klx (at 65 mm working distance)

SPECIFICATIONS

Capacity:

Power Supply: 12 V

Lamp Type: 140klx (LED)

Mechanics:

Working Distance (mm): 50-130

General:

Height (mm): 61

Length (mm): 24

Width (mm): 47

Diameter (mm): 66

Series: EasyLED

Field of Application:

Industry: Yes

Area of Application:

Semiconductor Technology: Yes

Odontotechnics: Yes

Miscellaneous:

Supplier Product Number: 600.200
