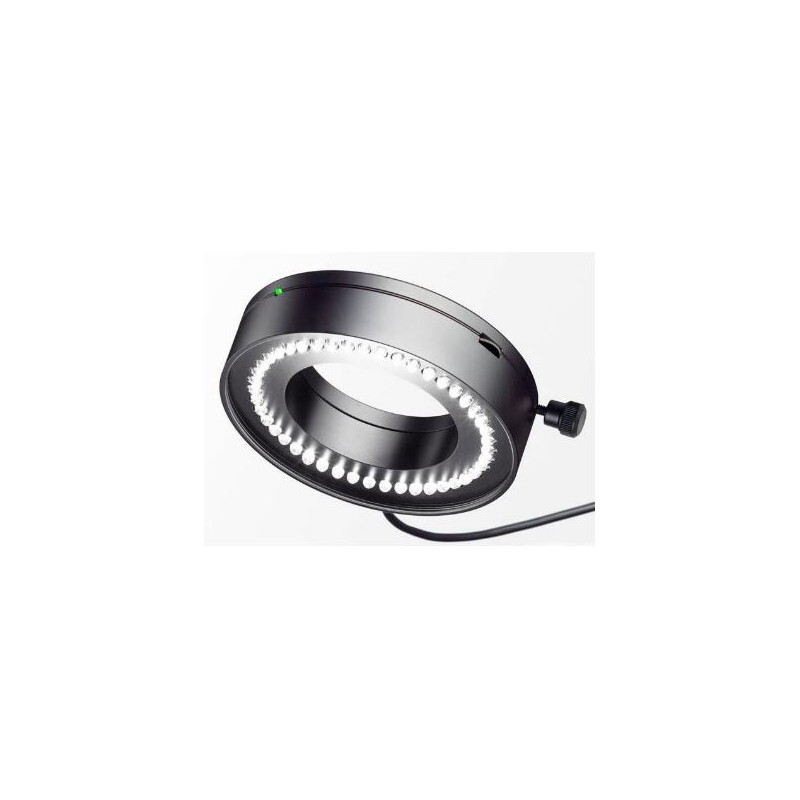

Schott EasyLED Ring light system, (RL) i 66mm, segment rotation incl. power supply

EasyLED Systems

Compact and Ergonomic Illumination Solutions for Stereo Microscopy and Macroscopy

Utilizing cutting-edge technologies, the EasyLED product line seamlessly integrates high-brightness LEDs with controller electronics directly into the illuminator's head, offering effortless, ergonomic operation and exceptional value for money.

Equipped with neutral white LEDs (5600 K), EasyLED ensures images with excellent color fidelity.

Constructed with robust metal housings and well-designed heat sinks, EasyLED achieves maximum brightness and boasts a long lifetime of 50,000 hours.

Key Features:

• No separate controller box required for ring light and backlight. Compact controller box available for single and double spotlights.
• Ringlight Plus version offers basic segment features and segment rotation, facilitating easy and intuitive operation via an integrated "jog dial" wheel.
• Ergonomic design allows operation without the need to remove eyes from the eyepieces.
• Continuous dimming from 0 to 100%.
• All devices are individually dimmable.
• Wide input range power supply (100 - 240 V) with a worldwide plug (clip system).
• High-quality functionality at low cost.
• Manufactured in the EU.

Ringlight Plus:

• 48 high-brightness LEDs
• Color temperature: 5,600 K
• Easily adaptable to various microscope objectives (Ø 66 mm/adaptors available)
• Integrated controller for continuous dimming (0 – 100%) and separate on/off switch
• Basic segment features and segment rotation
• Integrated "jog dial" wheel for easy and intuitive operation
• Wide range of working distance: 50 – 130 mm
• Maximum illuminance: 140 klx (at 65 mm working distance)

SPECIFICATIONS

Capacity:

Power Supply: 12 V

Lamp Type: 140lm (LED)

Mechanics:

Working Distance (mm): 50-130

Segmented: Yes

Lens Diameter (mm): 65

General:

Height (mm): 61

Length (mm): 24

Width (mm): 47

Diameter (mm): 66

Series: EasyLED
