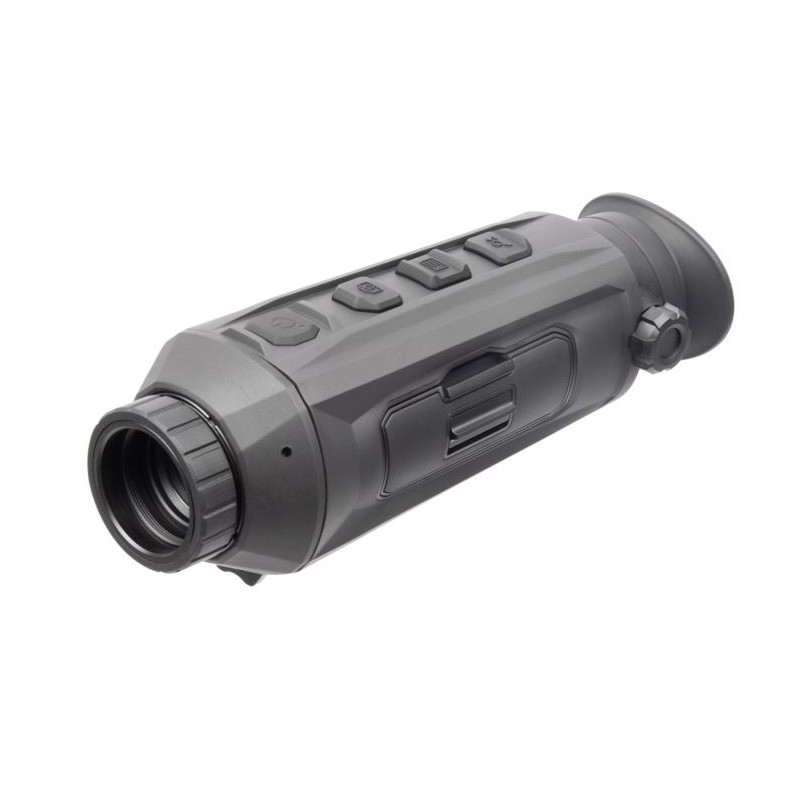

AGM Seeker 19-384 Thermal Imaging Monocular

Introducing the AGM Seeker Thermal Monocular series, the latest and most advanced addition to the world’s largest range of thermal imaging products! The Seeker series features various germanium lens sizes paired with an industry-leading 384x288 resolution thermal detector with a 12-micron pixel pitch and sub-20mK thermal sensitivity. This new series addresses user feedback from the original Taipan monoculars, offering key upgrades such as a switch to a removable rechargeable 18650 battery, a new sub-20mK thermal sensor, and a 90-degree tilt sensor that conserves battery life by powering off the display when not in use.

Packed with numerous software enhancements and familiar features from the AGM thermal lineup, the Seeker series includes: F1.0 aperture optics, a 50Hz refresh rate, 16GB of built-in memory, Wi-Fi connectivity compatible with the AGM Connect App, an IP67 waterproof rating, a USB Type-C port for external power, and four color palettes. Additionally, the Seeker incorporates a wider rubber eyepiece for increased comfort during extended viewing sessions on the 1024 OLED display. It’s designed for a variety of applications including hunting, farming/herd protection, law enforcement, search & rescue, boating, camping, and other outdoor activities.

Key Features:

• 12μm, 384x288 resolution thermal detector
• Exceptional thermal sensitivity (NETD <20mK)
• Advanced image processing with Digital Detail Enhancement, digital Noise Reduction, and NLM algorithm
• 50 Hz image frame rate
• 1024x768 resolution OLED display
• 64 GB built-in memory for video recording and image capture
• Wi-Fi hotspot capability
• Digital zoom options: 1x, 2x, 4x, 8x
• Replaceable and rechargeable Li-Ion battery with up to 7 hours of life
• External power supply capability
• Rugged, waterproof housing with rubber overmolding
• 3-year warranty

Package Includes:

• Battery Charger
• USB Cable
• 2x 18650 Rechargeable Batteries
• Power Adapter (US and EU plugs)
• Protective Bag
• Wrist Strap
• User Manual

Specifications:

Detector Type: 12μm Vanadium Oxide Uncooled Focal Plane Array

Resolution: 384x288

Refresh Rate: 50 Hz

Response Waveband: 8μm to 14μm

NETD: ≤20 mK (@25°C), F#=1.0

Detection Range (for 6’ object): 780 m

Lens System: 19 mm; F1.0

Field of View (H × V): 13.8° × 10.4°

Magnification: 2x - 16x

Digital Zoom: 1x, 2x, 4x, 8x

Diopter Adjustment: -5 to +3 dpt

Monitor: 1024x768 OLED

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Image Boost: Yes

Highest Temperature Spot Tracking: Yes

Wi-Fi Hotspot: Yes

Standby Mode: Yes

Storage: Built-in 64 GB memory

Video Recording: Yes (on-board)

Image Capture: Yes

Battery Type: One replaceable rechargeable 18650 Lithium battery

Battery Life: 6.5 hours

Power: 5 VDC/2 A, 1.75 W

Interface: USB Type-C

Working Temperature: -30°C to 55°C (-22°F to 131°F)

Protection Level: IP67

Dimensions: 171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)

Weight: 0.32 kg (0.73 lb)
