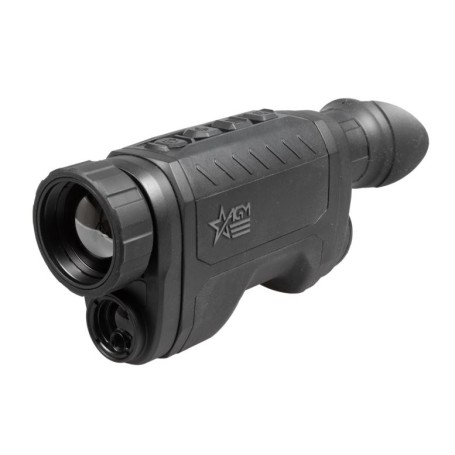

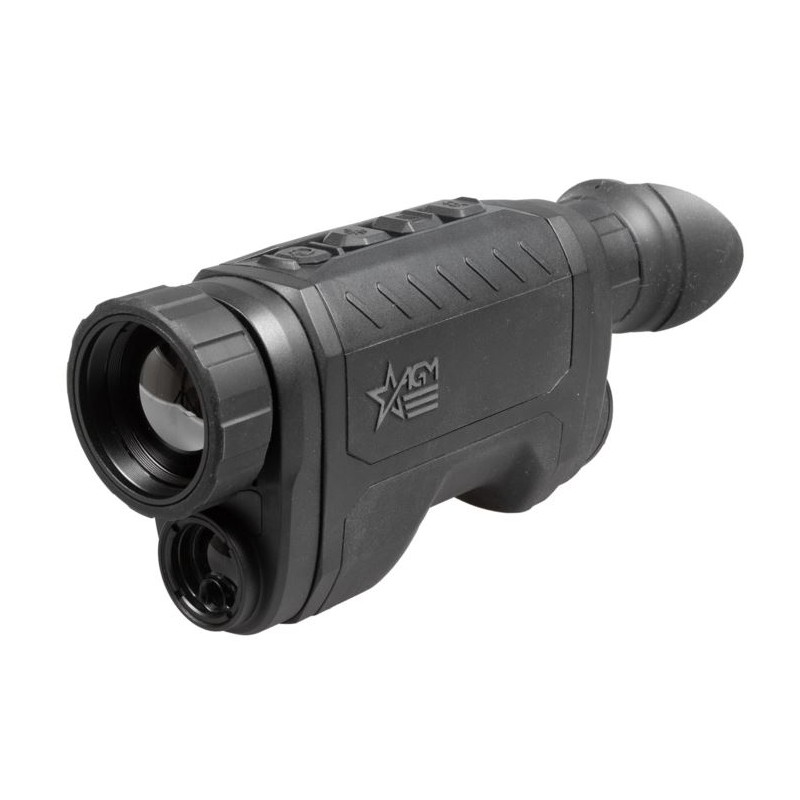

AGM ReachIR LRF 35-640 Thermal Imaging Monocular

Introducing the ReachIR, a premium handheld thermal monocular series designed for advanced observational capabilities. Each model features a 12-micron infrared detector and a 1024x768 OLED display, ensuring enhanced color accuracy. With thermal sensors providing industry-leading sensitivity at sub-20 millikelvin, the ReachIR offers exceptional performance. PART NO.: REAC35-640-LRF

3198.00 $
Tax included

2600 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Introducing the ReachIR, a premium handheld thermal monocular series designed for advanced observational capabilities. Each model features a 12-micron infrared detector and a 1024x768 OLED display, ensuring enhanced color accuracy. With thermal sensors providing industry-leading sensitivity at sub-20 millikelvin, the ReachIR offers exceptional performance. Key features include a built-in 1,000-meter laser rangefinder (LRF), a durable construction, and a removable, rechargeable 18650 battery. The monoculars are also waterproof, providing reliable use in various weather conditions. Advanced image processing algorithms deliver highly detailed and optimized thermal images. Additionally, the ReachIR includes 64 GB of built-in memory, supporting high-quality video/audio recording and image capture. Ideal for applications such as hunting, law enforcement, search and rescue, personal security, conservation, anti-poaching, camping, hiking, and marine activities.

Key Features:

  • 12μm high-sensitivity thermal detector (NETD < 20mK)
  • 640x512 resolution
  • Rapid 50 Hz imaging
  • Integrated 1,000-meter laser rangefinder
  • Advanced image processing algorithms
  • Digital zoom options: 1x, 2x, 4x, 8x
  • 1024x768 resolution, 0.39-inch OLED display
  • Video/audio recording and image capture capabilities
  • 64 GB built-in memory
  • Wi-Fi hotspot
  • Standby mode
  • Removable, rechargeable 18650 lithium battery with up to 4 hours of continuous use
  • Auto screen-off function
  • Rugged magnesium alloy housing
  • IP67 waterproof rating
  • 3-year warranty



Package Includes:

  • Battery Charger
  • USB Cable
  • Power Adapter (US and EU plugs)
  • 2x 18650 Rechargeable Batteries
  • Lens Cloth
  • Hand Strap
  • User Manual
  • Protective Bag



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

Refresh Rate: 50 Hz

NETD: Less than 20 mK (25°C, F#=1.0)

Response Waveband: 8 μm to 14 μm

Lens System: 35 mm; F1.0

Field of View (HxV): 12.5° × 10.0°

Magnification: 2.0x – 16x

Digital Zoom: 1x, 2x, 4x, 8x

Diopter Adjustment: -5 to +3 dpt

Detection Range (for 6’ object): 1,800 m

Monitor: 1024x768, 0.39 inch, OLED, 50 FPS

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Highest Temperature Spot Tracking: Yes

Scene Modes: Jungle, Recognition

Distance Measurement: Laser Rangefinder up to 1,000 m with ±1 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Hotspot: Yes

Sleep Mode: Yes

Built-in Storage: 64 GB EMMC

Video/Audio Recording: Yes / Yes

Image Capture: Yes

PIP (Picture-in-Picture): Yes

Battery Type: One removable 18650 rechargeable battery

Battery Life: 4 hours continuous use (@25°C, WiFi and LRF off)

Battery Capacity Display: Yes

External Power: 5 VDC/2 A, USB Type-C interface for external power supply

Working Temperature: -30°C to 55°C (-22°F to 131°F)

Protection Level: IP67 (Waterproof)

Dimensions: 190 × 52 × 86 mm (7.5 × 2.0 × 3.4 in)

Weight (without batteries): 442 g (0.97 lb)
