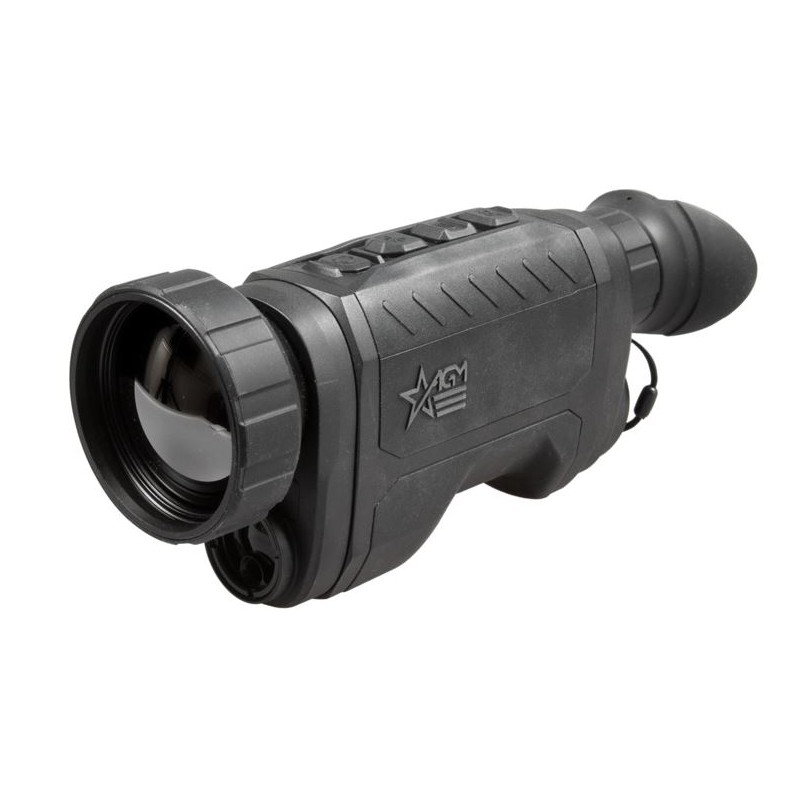

AGM ReachIR LRF 50-640 Thermal Imaging Monocular

Introducing the ReachIR, a cutting-edge handheld thermal monocular series designed for premium observational performance. Each model in the ReachIR lineup is equipped with a 12-micron infrared detector and a 1024x768 OLED display, delivering enhanced color accuracy and vivid imagery. The series features the most sensitive thermal sensors in its class, achieving sub-20 millikelvin thermal resolution. Notable features include a built-in 1,000-meter laser rangefinder (LRF), a rugged construction, and a removable, rechargeable 18650 battery. The ReachIR is also designed to be waterproof, providing reliable performance across a range of weather conditions. Advanced image processing algorithms ensure exceptionally detailed and optimized thermal imagery. With 64 GB of built-in memory, the ReachIR supports high-quality video and audio recording as well as image capture. This versatile thermal monocular is ideal for applications such as hunting, law enforcement, search and rescue, personal security, conservation, anti-poaching, camping, hiking, and various marine activities.

Key Features:

• 12μm high-sensitivity thermal detector (NETD < 20mK)
• 640x512 resolution
• Fast 50 Hz imaging rate
• Integrated 1,000-meter laser rangefinder
• Advanced image processing algorithms
• Digital zoom options: 1x, 2x, 4x, 8x
• 1024x768 resolution, 0.39-inch OLED display
• Video/audio recording and image capture
• 64 GB built-in memory
• Wi-Fi hotspot
• Standby mode
• Removable and rechargeable 18650 lithium battery with up to 4 hours of continuous use
• Auto screen-off function
• Durable magnesium alloy housing
• IP67 waterproof rating
• 3-year warranty

Package Includes:

• Battery Charger
• USB Cable
• Power Adapter (US and EU plugs)
• 2x 18650 Rechargeable Batteries
• Lens Cloth
• Hand Strap
• User Manual
• Protective Bag

Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

Refresh Rate: 50 Hz

NETD: Less than 20 mK (25°C, F#=1.0)

Response Waveband: 8 μm to 14 μm

Lens System: 50 mm; F1.0

Field of View (HxV): 8.7° × 7.0°

Magnification: 3.0x – 24x

Digital Zoom: 1x, 2x, 4x, 8x

Diopter Adjustment: -5 to +3 dpt

Detection Range (for 6’ object): 2,600 m

Monitor: 1024x768, 0.39 inch, OLED, 50 FPS

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Highest Temperature Spot Tracking: Yes

Scene Modes: Jungle, Recognition

Distance Measurement: Laser Rangefinder up to 1,000 m with ±1 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Hotspot: Yes

Sleep Mode: Yes

Built-in Storage: 64 GB EMMC

Video/Audio Recording: Yes / Yes

Image Capture: Yes

PIP (Picture-in-Picture): Yes

Battery Type: One removable 18650 rechargeable battery

Battery Life: 4 hours continuous use (@25°C, Wi-Fi and LRF off)

Battery Capacity Display: Yes

External Power: 5 VDC/2 A, USB Type-C interface for external power supply

Working Temperature: -30°C to 55°C (-22°F to 131°F)

Protection Level: IP67 (Waterproof)

Dimensions: 202 × 61 × 91 mm (8.0 × 2.4 × 3.6 in)

Weight (without batteries): 493 g (1.09 lb)
