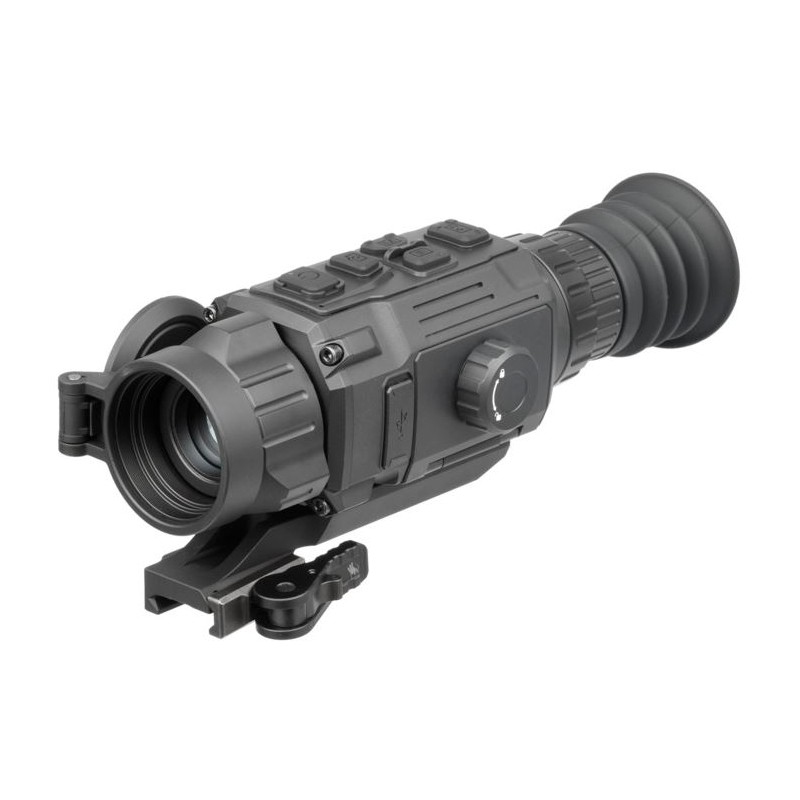

AGM Rattler V2 19-256 Thermal Imaging Rifle Scope

The RattlerV2 19-256 is an upgraded version of the Rattler TS19-256, offering enhanced features ideal for close-range night hunting, newcomers to thermal optics, or as a secondary scope. This advanced model comes with a 19mm Germanium lens and a 256x192 resolution thermal sensor, delivering a base magnification of 2.5x and a detection range of up to 950 yards. PART NO.: 314218550203R921

1340.70 $
Tax included

1090 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The RattlerV2 19-256 is an upgraded version of the Rattler TS19-256, offering enhanced features ideal for close-range night hunting, newcomers to thermal optics, or as a secondary scope. This advanced model comes with a 19mm Germanium lens and a 256x192 resolution thermal sensor, delivering a base magnification of 2.5x and a detection range of up to 950 yards. Its broad Field of View (9.3° × 6.9°, or 49 feet at 100 yards) ensures extensive coverage during scans, while the improved 50 Hz refresh rate provides smoother, more responsive performance compared to its predecessor's 25 Hz.

The RattlerV2 19-256 introduces several significant upgrades that enhance the user experience. It features a rechargeable battery with a runtime of up to 11.5 hours, Shot Activated Recording, and a more intuitive menu layout. Additionally, it offers 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope comes with a custom ADM QD Mount for easy attachment and removal, Wi-Fi connectivity through the AGM app, and a user-friendly, raised 5-button control panel, designed for ease of use even while wearing gloves.

Key Features:

  • Enhanced scope body design
  • 19mm Germanium lens
  • 256x192 resolution thermal sensor
  • Magnification range: 2.5x – 20x
  • Digital zoom options: 1x, 2x, 4x, 8x
  • Detection range up to 950 yards
  • Wide Field of View: 9.3° × 6.9° (49 feet at 100 yards)
  • Improved refresh rate: 50 Hz (upgraded from 25 Hz)
  • Enhanced focus ring with short throw
  • Upgraded lens cap
  • Rechargeable battery with up to 11.5 hours of operation
  • Shot Activated Recording
  • Video and audio recording
  • Simplified menu layout for ease of use
  • 10 reticle options with multiple colors
  • Multiple zeroing profiles for different calibers and rifles
  • Custom ADM QD Mount for quick scope removal and reattachment
  • Wi-Fi hotspot connectivity with the AGM app
  • Raised 5-button control panel for easy navigation with gloves



Package Includes:

  • AGM/ADM 2120 QRM Mount
  • Two Rechargeable Batteries
  • Charger
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 256 × 192

NETD: Less than 35 mK (25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 19 mm; F/1.0

Magnification: 2.5× - 20×

Field of View: 9.3° × 6.9°

Diopter Adjustment: -5 to +5 diopters

Focus Range: 0.5 m to infinity

Exit Pupil: 6 mm

Eye Relief: 45 mm

Digital Zoom: 1×, 2×, 4×, 8×

Detection Range (for 6’ object): 950 m/yd

Display: 0.39-inch, OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Boresight Adjustment: Digital Controlled

Video/Audio Recording: Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in EMMC (16 GB)

PIP (Picture-in-Picture): Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Reticle Options: 10 types, 4 colors, on/off

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and rechargeable Li-ion battery

Battery Life (Operating, 20°C): Up to 11.5 hours (with hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max. Recoil: 1000 g/0.4 ms

Weight (without mount and battery): 0.48 kg (1.06 lb)

Dimensions (without mount): 219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)
