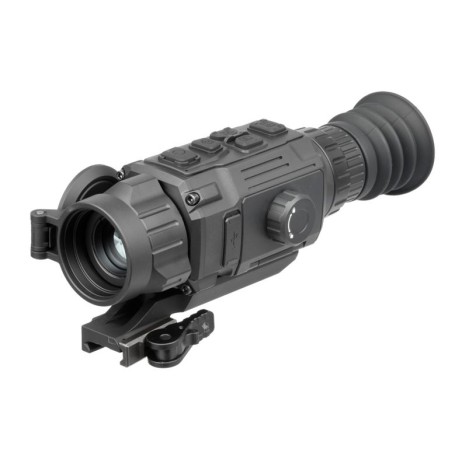

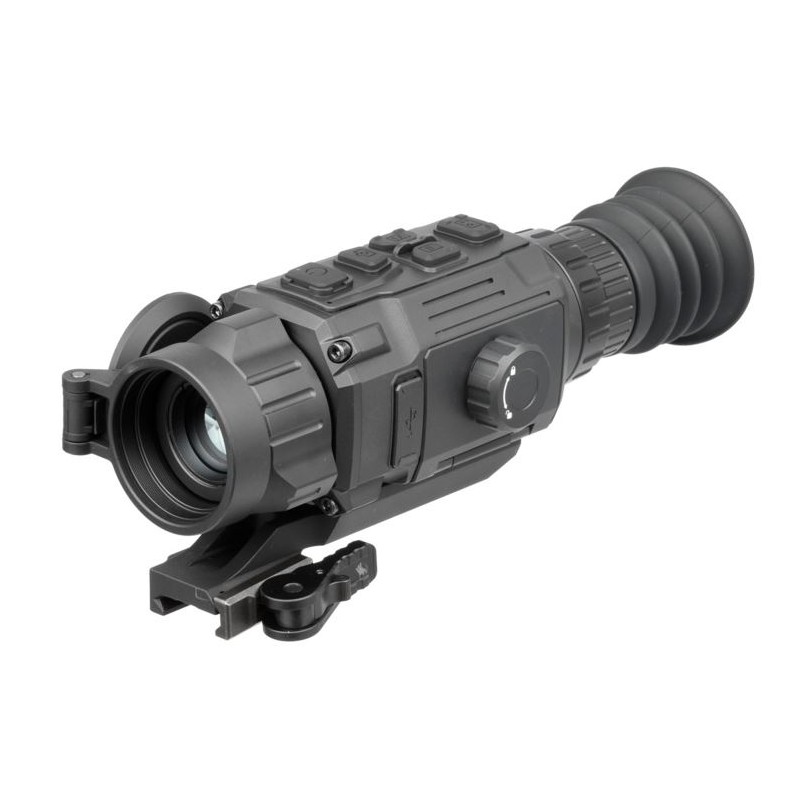

AGM Rattler V2 25-384 Thermal Imaging Rifle Scope

We've taken our highly popular thermal scope and made it even better with the new AGM RattlerV2 25-384. This advanced model features a 25mm Germanium lens and a 384 x 288 resolution thermal sensor, offering a base magnification of 2x and a detection range of up to 1200 meters/yards. PART NO.: 314204550204R231

2386.20 $
Tax included

1940 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

We've taken our highly popular thermal scope and made it even better with the new AGM RattlerV2 25-384. This advanced model features a 25mm Germanium lens and a 384 x 288 resolution thermal sensor, offering a base magnification of 2x and a detection range of up to 1200 meters/yards. Compared to other models with the same resolution, the RattlerV2 25-384 stands out with its wider field of view (10.5° × 7.9° or 55 feet at 100 yards), allowing for broader area coverage during scans.

The RattlerV2 25-384 builds on the strengths of the previous Rattler series with significant upgrades. It includes a new battery compartment designed for a rechargeable battery, extending operational time to 11 hours. The scope also boasts a cutting-edge 12-micron thermal sensor with an exceptional sensitivity rating of less than 20 mK, the highest in its class.

Additional features include Shot Activated Recording (SAR), an intuitive menu layout, and 10 customizable reticle options with various zeroing profiles for different calibers and rifles. The scope is equipped with a custom ADM QD Mount for easy attachment and detachment, Wi-Fi hotspot connectivity through the AGM app, and a user-friendly raised 5-button control layout that is easy to navigate, even with gloves.

Key Features:

  • Upgraded Scope Body Design
  • 25mm Germanium lens
  • 384 x 288 resolution thermal sensor
  • Magnification range: 2× - 16×
  • Digital zoom: 1×, 2×, 4×, 8×
  • Detection range up to 1200 meters/yards
  • Wide Field of View: 10.5° × 7.9° (55 feet at 100 yards)
  • 50 Hz Refresh Rate
  • Enhanced focus ring with short throw
  • Upgraded Lens Cap
  • Rechargeable battery with up to 11 hours of run time
  • Shot Activated Recording
  • Video and Audio Recording
  • Simplified menu layout for ease of use
  • 10 reticle options
  • Multiple zeroing profiles for various calibers and rifles
  • Custom ADM QD Mount for easy scope removal and reattachment
  • Wi-Fi hotspot connectivity with AGM app
  • Raised 5-button control layout for easy navigation, even with gloves



Package Includes:

  • AGM/ADM 2120 QRM Mount
  • Two Rechargeable Batteries
  • Charger
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 384 × 288

NETD: Less than 20 mK (25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 25 mm; F/1.0

Magnification: 2× - 16×

Field of View: 10.5° × 7.9°

Diopter Adjustment: -5 to +5 diopters

Focus Range: 0.5 m to infinity

Exit Pupil: 6 mm

Eye Relief: 45 mm

Digital Zoom: 1×, 2×, 4×, 8×

Detection Range (6’ object): 1200 m/yd

Display: 0.39-inch, OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Boresight Adjustment: Digital Controlled

Video/Audio Recording: Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in EMMC (16 GB)

PIP (Picture-in-Picture): Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Reticle Options: 10 types, 4 colors, on/off

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and rechargeable Li-ion battery

Battery Life (Operating, 20°C): Up to 11 hours (25°C, with hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max. Recoil: 1000 g/0.4 ms

Weight (without mount and battery): 0.49 kg (1.08 lb)

Dimensions (without mount): 219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)
