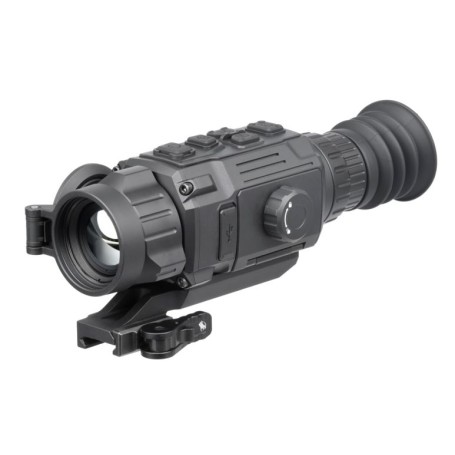

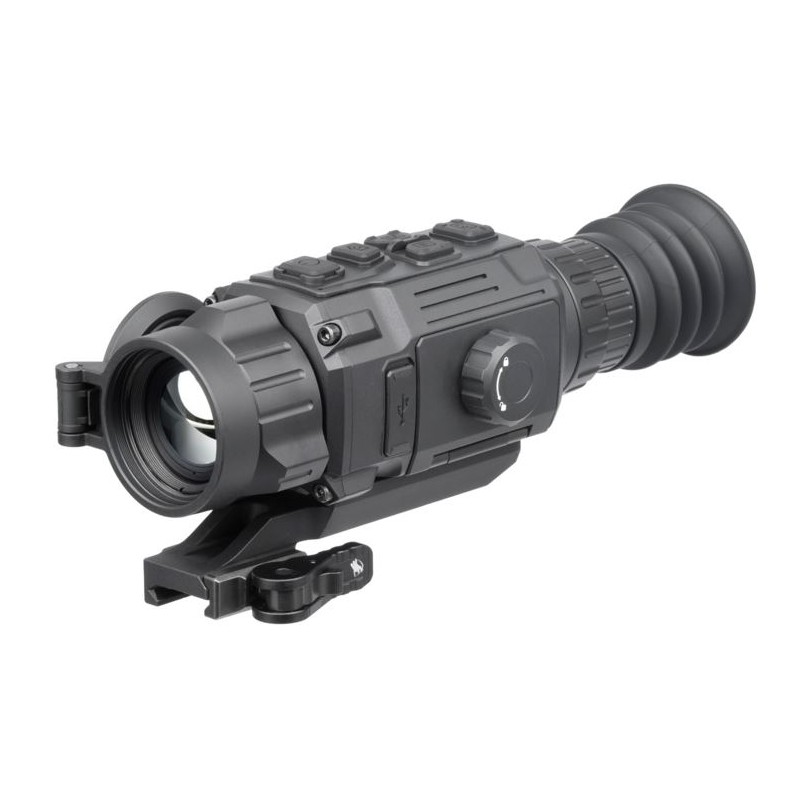

AGM Rattler V2 35-640 thermal weapon sights

We’ve taken our acclaimed Rattler thermal scopes and made them even better. Introducing the AGM RattlerV2 35-640—our latest premium offering that sets a new standard in thermal imaging. This scope features a 35mm Germanium lens and a 640 × 512 resolution thermal sensor, providing a 2x base magnification and a remarkable detection range of up to 1800 meters/yards. PART NO.: 314205550205R361

3407.10 $
Tax included

2770 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

We’ve taken our acclaimed Rattler thermal scopes and made them even better. Introducing the AGM RattlerV2 35-640—our latest premium offering that sets a new standard in thermal imaging. This scope features a 35mm Germanium lens and a 640 × 512 resolution thermal sensor, providing a 2x base magnification and a remarkable detection range of up to 1800 meters/yards. Among the premium 640-resolution models, the RattlerV2 35-640 stands out with a broader Field of View (12.5° × 10.0° or 65 feet at 100 yards), ensuring extensive coverage for scanning while maintaining high identification capability.

The RattlerV2 35-640 brings enhancements familiar to AGM Rattler users, along with groundbreaking new features. It boasts an upgraded battery compartment that accommodates a rechargeable battery for up to 9 hours of continuous use. Plus, it includes a 12-micron thermal sensor with the highest sensitivity rating (sub-20 mK) on the market.

Key Features:

  • Superior sub-20 mK thermal sensitivity
  • 640×512 resolution with 12-micron sensor
  • Rapid 50Hz imaging
  • High-resolution OLED display
  • Adjustable color palettes
  • Multiple reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video and audio recording
  • Image capture capability
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • Up to 9 hours of battery life
  • External power supply compatibility
  • Waterproof and shockproof
  • 5-year warranty



Included in the Package:

  • AGM/ADM 2120 QRM Mount
  • Two Rechargeable Batteries
  • Charger
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

NETD: Less than 20 mK (25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 35 mm; F/1.0

Magnification: 2× - 16×

Field of View: 12.5° × 10.0°

Diopter Adjustment: -5 to +5 diopters

Focus Range: 2 m to infinity

Exit Pupil: 6 mm

Eye Relief: 45 mm

Digital Zoom: 1×, 2×, 4×, 8×

Detection Range (6’ object): 1800 m/yd

Display: 0.39-inch, OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Boresight Adjustment: Digital Controlled

Video/Audio Recording: Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in EMMC (16 GB)

PIP (Picture-in-Picture): Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Reticle Options: 10 types, 4 colors, on/off

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and rechargeable Li-ion Battery

Battery Life (Operating, 20°C): Up to 9 hours (25°C, with hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max. Recoil: 1000 g/0.4 ms

Weight (without mount and battery): 0.51 kg (1.13 lb)

Dimensions (without mount): 221 × 68 × 67 mm (8.7 × 2.7 × 2.6 in)
