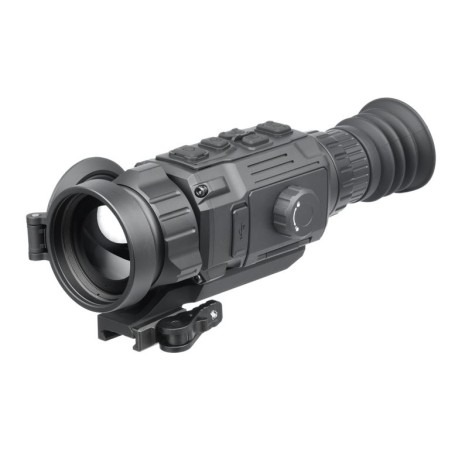

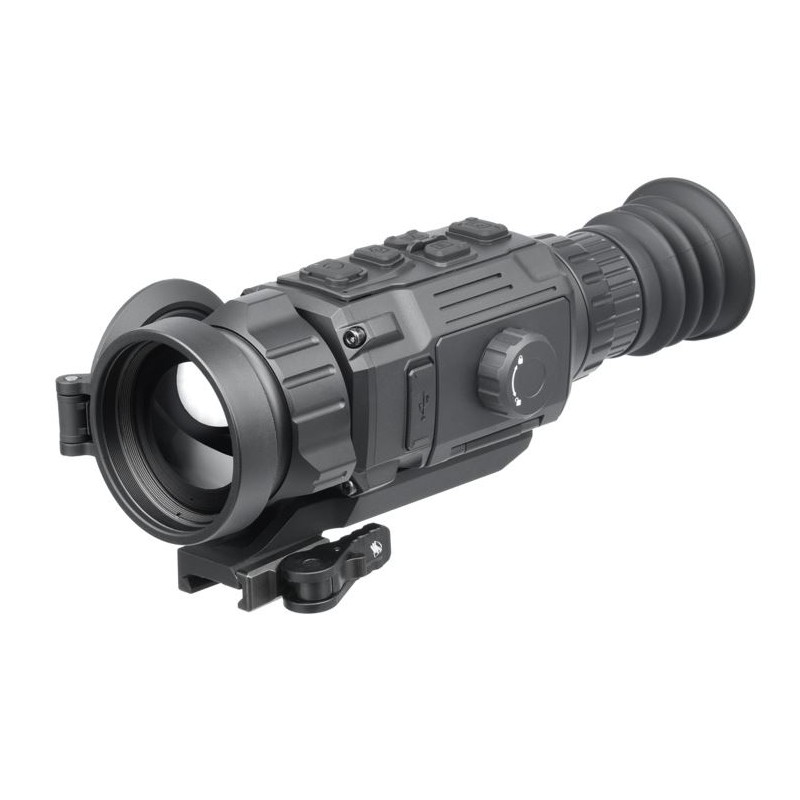

AGM Rattler V2 50-640 thermal weapon sights

We’ve elevated our premium Rattler thermal scopes to new heights with the introduction of the AGM RattlerV2 50-640. This advanced thermal scope is equipped with a 50mm Germanium lens and a 640 × 512 resolution thermal sensor, delivering a 2.5x base magnification and a remarkable detection range of up to 2600 meters/yards. PART NO.: 314205550206R561

3849.90 $
Tax included

3130 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

We’ve elevated our premium Rattler thermal scopes to new heights with the introduction of the AGM RattlerV2 50-640. This advanced thermal scope is equipped with a 50mm Germanium lens and a 640 × 512 resolution thermal sensor, delivering a 2.5x base magnification and a remarkable detection range of up to 2600 meters/yards. Among the premium 640-resolution models, this scope offers a higher base magnification and a slightly narrower Field of View (8.8° × 7.0° or 46 feet at 100 yards), balancing broad scanning coverage with enhanced identification at greater distances.

The RattlerV2 50-640 builds on the trusted features of AGM Rattler scopes while introducing cutting-edge upgrades. It includes an advanced battery compartment that supports a rechargeable battery, providing up to 9 hours of operation. Additionally, it features a new 12-micron thermal sensor with the market’s highest sensitivity rating (sub-20 mK).

Highlighted Features:

  • Superior sub-20 mK thermal sensitivity
  • 640×512 resolution with 12-micron sensor
  • Rapid 50Hz imaging
  • High-resolution OLED display
  • Adjustable color palettes
  • Multiple reticle options and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video and audio recording
  • Image capture functionality
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi connectivity via the AGM app
  • Stadiametric rangefinder
  • Standby mode
  • Up to 9 hours battery life
  • External power supply compatibility
  • Waterproof and shockproof
  • 5-year warranty



Included in the Package:

  • AGM/ADM 2120 QRM Mount
  • Two Rechargeable Batteries
  • Charger
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

NETD: Less than 20 mK (25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 50 mm; F/1.0

Magnification: 2.5× - 20×

Field of View: 8.8° × 7.0°

Diopter Adjustment: -5 to +5 diopters

Focus Range: 10 m to infinity

Exit Pupil: 6 mm

Eye Relief: 45 mm

Digital Zoom: 1×, 2×, 4×, 8×

Detection Range (6’ object): 2600 m/yd

Display: 0.39-inch, OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Boresight Adjustment: Digital Controlled

Video/Audio Recording: Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in EMMC (16 GB)

PIP (Picture-in-Picture): Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Reticle Options: 10 types, 4 colors, on/off

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and rechargeable Li-ion Battery

Battery Life (Operating, 20°C): Up to 9 hours (25°C, with hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max. Recoil: 1000 g/0.4 ms

Weight (without mount and battery): 0.53 kg (1.18 lb)

Dimensions (without mount): 230 × 73 × 68 mm (9.0 × 2.9 × 2.7 in)
