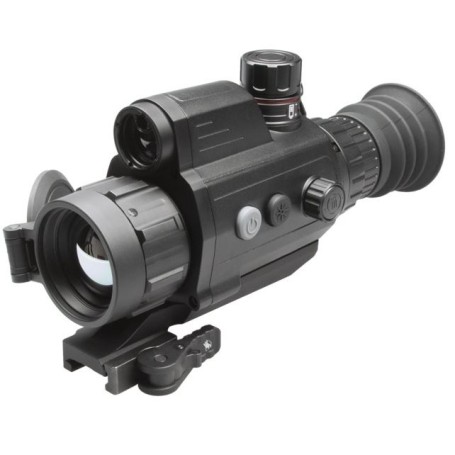

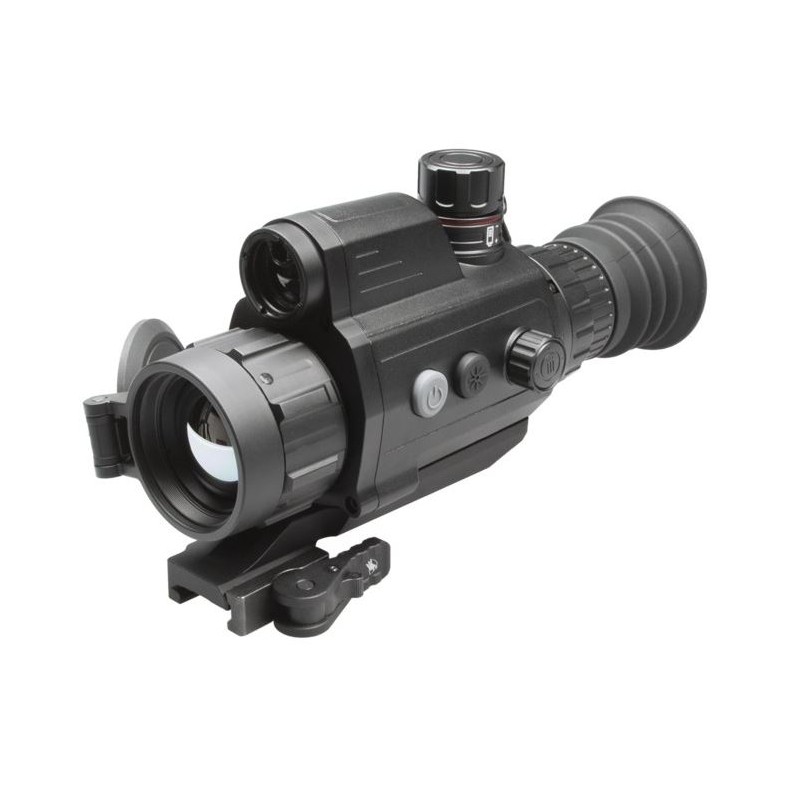

AGM Varmint V2 LRF 35-384 Thermal Imaging Rifle Scope

The AGM Varmint V2 LRF thermal riflescopes take the best features of the acclaimed Rattler series and enhance them with a powerful new addition: a built-in 600-meter laser rangefinder. This addition addresses a common challenge with digital optics—the lack of depth perception. By integrating this rangefinder, the Varmint V2 LRF helps you gauge distances more accurately. VARM35-384-2

3075.00 $
Tax included

2500 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM Varmint V2 LRF thermal riflescopes take the best features of the acclaimed Rattler series and enhance them with a powerful new addition: a built-in 600-meter laser rangefinder. This addition addresses a common challenge with digital optics—the lack of depth perception. By integrating this rangefinder, the Varmint V2 LRF helps you gauge distances more accurately.

Combining this LRF functionality with a high-sensitivity 12-micron thermal detector, the Varmint V2 LRF delivers exceptional performance with a NETD rating under 20 mK. The scope features a sharp 1024x768 OLED display for clear, detailed images. Powered by a single, non-proprietary 18650 rechargeable battery, it offers 5 to 6 hours of continuous use in the field.

The Varmint V2 LRF's compact design also allows it to function as a handheld monocular, making it versatile for both observation and surveying. Each scope includes a high-quality, American-made American Defense Manufacturing quick detach mount, facilitating easy transition between handheld and mounted use.

Additional features include built-in recording, Wi-Fi compatibility through the AGM Connect app, external power options via mini USB, multiple reticle options, various color palettes, and 16GB of internal storage. These attributes make the Varmint V2 LRF one of the most versatile options in the AGM lineup.

Key Features:

  • 12μm high-sensitivity thermal detector, NETD < 20mK
  • Fast 50 Hz imaging
  • Digital zoom: 1x, 2x, 4x, 8x
  • Adjustable color palettes
  • Precision eye-safe laser rangefinder with a 600-meter range and ±1-meter accuracy
  • High-resolution OLED display
  • Built-in ballistic calculator
  • Various reticle types and colors
  • Picture-in-Picture mode
  • On-board video recording and image capture
  • 16 GB built-in EMMC storage
  • Wi-Fi data transmission
  • Standby mode
  • 5 to 6 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof and shockproof
  • AGM/ADM QRM mount included
  • 3-year warranty



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 384 × 288

Refresh Rate: 50 Hz

Response Waveband: 8 μm to 14 μm

NETD: Less than 20 mK (@25°C, F#=1.0)

Lens System: 35 mm; F/1.0

Field of View (H×V): 7.53° × 5.65°

Magnification: 3× – 24×

Digital Zoom: Multiple 1×, 2×, 4×, 8× or continuous

Detection Range (6’ object): 1,800 m/yd

Eye Relief: 45 mm

Monitor: 1024x768, 0.39 inch, OLED

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Highest Temperature Spot Tracking: Yes

Scene Mode: Jungle, Recognition

Reticle: 10 types, 4 colors, on/off

Laser Rangefinder: Up to 600 m, ±1 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Boresight Adjustment: Digital Controlled

Boresight Increment: 0.13 mil / 0.44 MOA

Ballistic Calculator: Yes

Wi-Fi Hotspot: Yes

Sleep Mode: Yes

Picture-in-Picture Mode: Yes

Burn Prevention: Yes

Built-in Storage: 16 GB EMMC

Video Recording: On-board video recording

Image Capture: Yes

CVBS Output: Yes (via USB)

Battery Type: One 18650 (3.7V) Lithium Rechargeable Battery

Battery Operating Time (Wi-Fi off): Over 6 hours

Battery Capacity Display: Yes

External Power: 5 VDC/2 A, USB Type-C

Working Temperature: -20°C to 55°C (-4°F to 131°F)

Protection Level: IP67

Drop Test Height: 1.5 m (4.9 ft)

Dimensions (without mount): 214 × 67 × 87 mm (8.4 × 2.6 × 3.4 in)

Weight (without batteries): 518 g (1.14 lb)
