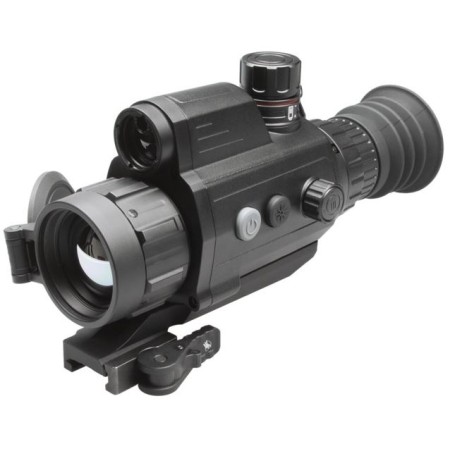

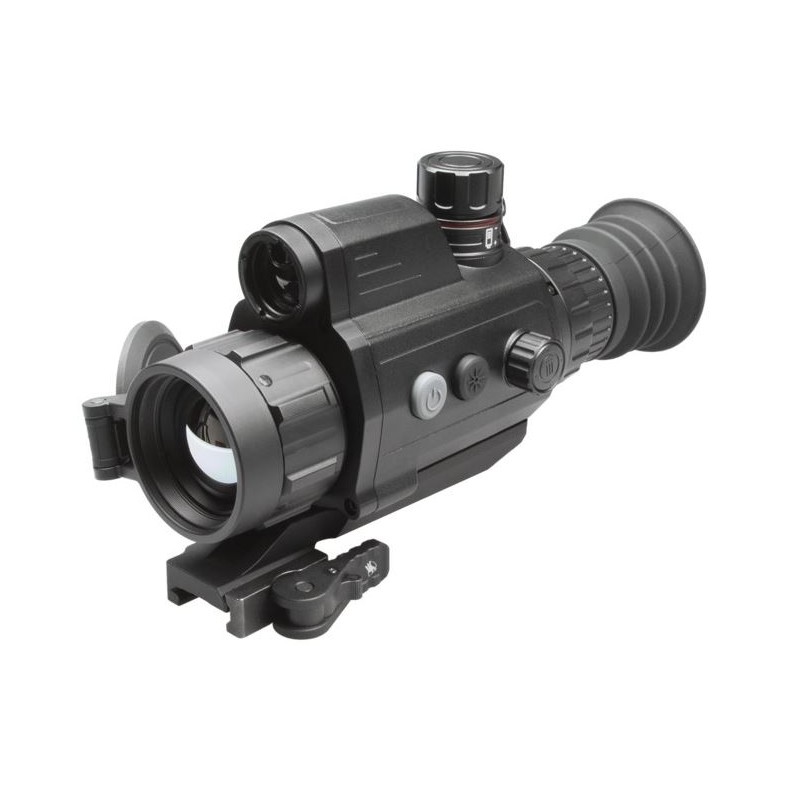

AGM Varmint V2 LRF 35-640 Thermal Imaging Rifle Scope

The AGM Varmint V2 LRF series builds on the popular Rattler family with a key enhancement: a 600-meter integrated laser rangefinder. This addition addresses the common challenge of depth perception with digital optics, providing more accurate distance measurements for improved targeting. VARM35-640-2

4154.26 $
Tax included

3377.45 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM Varmint V2 LRF series builds on the popular Rattler family with a key enhancement: a 600-meter integrated laser rangefinder. This addition addresses the common challenge of depth perception with digital optics, providing more accurate distance measurements for improved targeting.

The Varmint V2 LRF combines this advanced laser rangefinder with a high-performance 12-micron thermal detector, offering a NETD of less than 20 mK. This is paired with a high-resolution 1024x768 OLED display for exceptional clarity. The scope is powered by a single, non-proprietary 18650 rechargeable battery, delivering 5 to 6 hours of continuous operation.

Designed for versatility, the Varmint V2 LRF’s compact build allows it to function as a handheld monocular for easy surveying of your environment. Each unit includes a premium American Defense Manufacturing quick detach mount for effortless transitions between handheld and mounted use.

Additional features include built-in recording, Wi-Fi connectivity via the AGM Connect app, external power support through a mini USB port, a range of reticle options, various color palettes, and 16GB of internal storage. These attributes make the Varmint V2 LRF a highly functional and versatile choice within the AGM lineup.

Key Features:

  • 12μm high-sensitivity thermal detector with NETD < 20 mK
  • Fast 50 Hz imaging
  • Digital zoom: 1x, 2x, 4x, 8x
  • Adjustable color palettes
  • Integrated eye-safe laser rangefinder: Up to 600 meters with ±1 meter accuracy
  • High-resolution OLED display
  • Ballistic Calculator
  • Multiple reticle types and colors
  • Picture-in-Picture mode
  • On-board video recording and image capture
  • 16 GB built-in EMMC storage
  • Wi-Fi data transmission
  • Standby mode
  • Battery life: 5 to 6 hours (depending on model)
  • External power supply compatibility
  • Waterproof and shockproof
  • Includes AGM/ADM QRM mount
  • 3-year warranty



Package Includes:

  • AGM/ADM 2118 QRM Mount
  • 18650 Rechargeable Battery
  • USB Cable
  • Power Adapter
  • Battery Charger
  • User Manual
  • Lens Cloth
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

Refresh Rate: 50 Hz

Response Waveband: 8 μm to 14 μm

NETD: Less than 20 mK (@25°C, F#=1.0)

Lens System: 35 mm; F/1.0

Field of View (H×V): 12.52° × 10.03°

Magnification: 2× – 16×

Digital Zoom: Multiple 1×, 2×, 4×, 8× or Continuous

Detection Range (6’ object): 1,800 m/yd

Eye Relief: 45 mm

Monitor: 1024x768, 0.39 inch, OLED

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Highest Temperature Spot Tracking: Yes

Scene Mode: Jungle, Recognition

Reticle: 10 types, 4 colors, on/off

Laser Rangefinder: Up to 600 m, ±1 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Boresight Adjustment: Digital Controlled

Boresight Increment: 0.22 mil / 0.73 MOA

Ballistic Calculator: Yes

Wi-Fi Hotspot: Yes

Sleep Mode: Yes

Picture-in-Picture Mode: Yes

Burn Prevention: Yes

Built-in Storage: 16 GB EMMC

Video Recording: On-board video recording

Image Capture: Yes

CVBS Output: Yes (via USB)

Battery Type: One 18650 (3.7V) Lithium Rechargeable Battery

Battery Operating Time (Wi-Fi off): Over 6 hours

Battery Capacity Display: Yes

External Power: 5 VDC/2 A, USB Type-C

Working Temperature: -20°C to 55°C (-4°F to 131°F)

Protection Level: IP67

Drop Test Height: 1.5 m (4.9 ft)

Dimensions (without mount): 214 × 67 × 87 mm (8.4 × 2.6 × 3.4 in)

Weight (without batteries): 518 g (1.14 lb)
