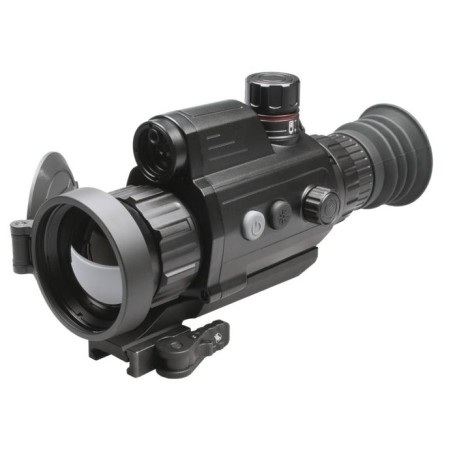

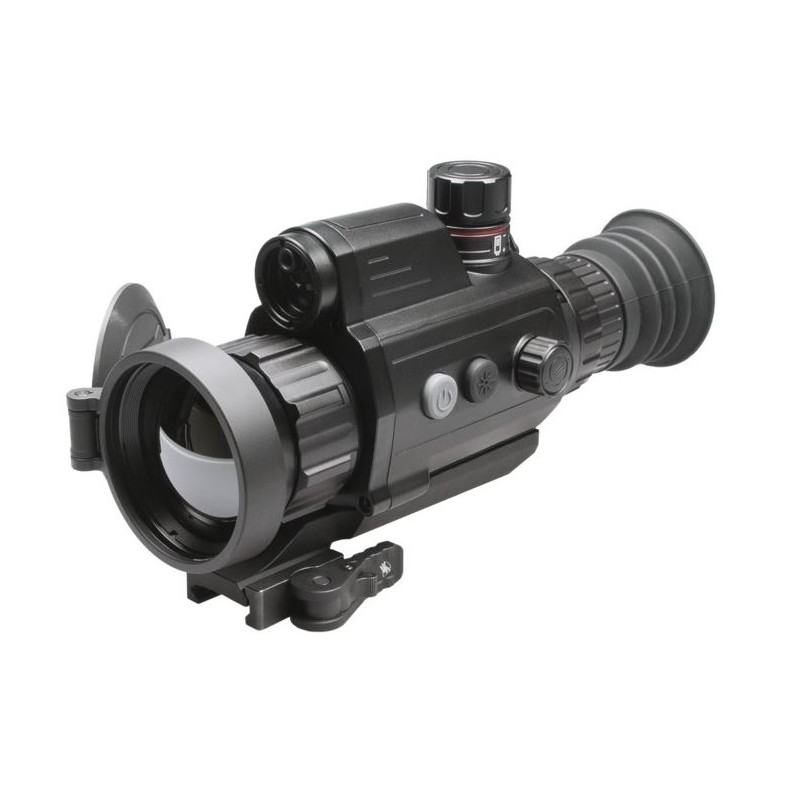

AGM Varmint V2 LRF 50-640 Thermal Imaging Rifle Scope

The AGM Varmint V2 LRF series builds on the highly regarded Rattler line with an impressive upgrade: a 600-meter integrated laser rangefinder. This addition addresses a common issue with digital optics—depth perception—by providing precise distance measurements, enhancing your overall shooting experience.

Combining the laser rangefinder with a 12-micron thermal detector that has a NETD of less than 20 mK, the Varmint V2 LRF offers superior thermal imaging through its high-resolution 1024x768 OLED display. Powered by a single, non-proprietary 18650 rechargeable battery, the scope delivers 5 to 6 hours of continuous use in the field.

Its compact design also allows it to function as a handheld monocular, making it versatile for surveying your surroundings. The scope includes a premium American Defense Manufacturing quick detach mount, simplifying transitions between handheld and mounted use.

Packed with advanced features such as built-in recording, Wi-Fi connectivity through the AGM Connect app, external power support via a mini USB port, a range of reticle options, adjustable color palettes, and 16GB of internal storage, the Varmint V2 LRF stands out as one of the most versatile and functional scopes in the AGM lineup.

Key Features:

• 12μm high-sensitivity thermal detector with NETD < 20 mK
• 50 Hz imaging for smooth operation
• Digital zoom: 1x, 2x, 4x, 8x
• Adjustable color palettes for customized viewing
• Integrated eye-safe laser rangefinder: Measures up to 600 meters with ±1 meter accuracy
• High-resolution OLED display for clear visuals
• Ballistic Calculator for precise shooting adjustments
• Various reticle types and colors for enhanced aiming
• Picture-in-Picture mode for detailed targeting
• On-board video recording and image capture capabilities
• 16 GB built-in EMMC storage for ample data storage
• Wi-Fi data transmission for easy sharing and control
• Standby mode to conserve battery life
• 5 to 6 hours battery life (depending on usage)
• External power supply compatibility
• Waterproof and shockproof for reliable performance in harsh conditions
• Includes AGM/ADM QRM mount
• 3-year warranty

Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

Refresh Rate: 50 Hz

Response Waveband: 8 μm to 14 μm

NETD: Less than 20 mK (@25°C, F#=1.0)

Lens System: 50 mm; F/1.0

Field of View (H×V): 8.78° × 7.03°

Magnification: 2.5× – 20×

Digital Zoom: Multiple 1×, 2×, 4×, 8× or Continuous

Detection Range (6’ object): 2,600 m/yd

Eye Relief: 45 mm

Monitor: 1024×768, 0.39 inch, OLED

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Highest Temperature Spot Tracking: Yes

Scene Mode: Jungle, Recognition

Reticle: 10 types, 4 colors, on/off

Laser Rangefinder: Up to 600 m, ±1 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Boresight Adjustment: Digital Controlled

Boresight Increment: 0.15 mil / 0.51 MOA

Ballistic Calculator: Yes

Wi-Fi Hotspot: Yes

Sleep Mode: Yes

Picture-in-Picture Mode: Yes

Burn Prevention: Yes

Built-in Storage: 16 GB EMMC

Video Recording: On-board video recording

Image Capture: Yes

CVBS Output: Yes (via USB)

Battery Type: One 18650 (3.7V) Lithium Rechargeable Battery

Battery Operating Time (Wi-Fi off): Over 6 hours

Battery Capacity Display: Yes

External Power: 5 VDC/2 A, USB Type-C

Working Temperature: -20°C to 55°C (-4°F to 131°F)

Protection Level: IP67

Drop Test Height: 1.5 m (4.9 ft)

Dimensions (without mount): 227 × 74 × 87 mm (8.9 × 2.9 × 3.4 in)

Weight (without batteries): 722 g (1.59 lb)
