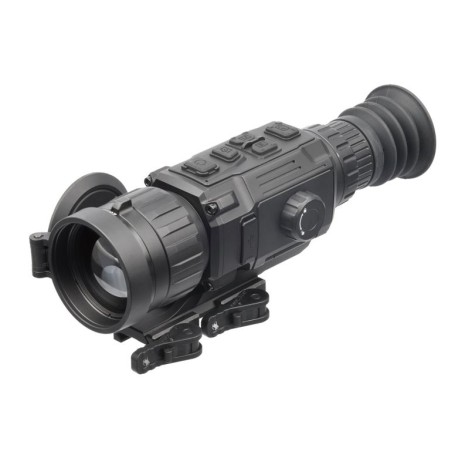

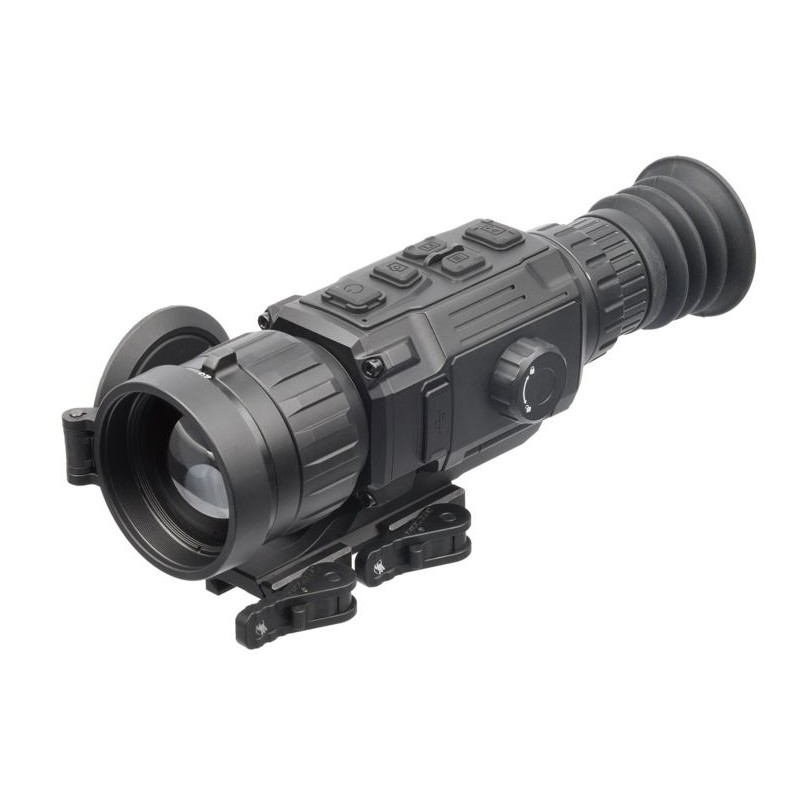

AGM Clarion 384 Dual Focus (25/50) Thermal Imaging Rifle Scope

The new AGM Clarion dual base magnification thermal scope represents a significant leap in thermal optics technology. It tackles a major challenge faced by night hunters: choosing the optimal lens size and sensor configuration for their specific needs. The Clarion's innovative design features a dual-lens optical system that allows users to switch between a 25mm and a 50mm lens, offering adjustable base magnification and field of view without compromising image resolution. PART NO.: CLAR25-384

3714.60 $
Tax included

3020 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The new AGM Clarion dual base magnification thermal scope represents a significant leap in thermal optics technology. It tackles a major challenge faced by night hunters: choosing the optimal lens size and sensor configuration for their specific needs. The Clarion's innovative design features a dual-lens optical system that allows users to switch between a 25mm and a 50mm lens, offering adjustable base magnification and field of view without compromising image resolution.

With the Clarion 384, hunters can effortlessly switch between a 25mm lens for a base magnification of 2x and a wider field of view (10.5° × 7.9° or 53 ft at 100 yards) and a 50mm lens for a base magnification of 4.5x and a narrower field of view (5.3° × 4.0° or 27 ft at 100 yards). This flexibility ensures precise target identification and shot placement, whether you're hunting in dense eastern fields or open western deserts.

The Clarion also features a state-of-the-art thermal sensor with a sub-20 milikelvin temperature sensitivity rating, ensuring exceptional performance in various thermal conditions. Despite its advanced optical system, the Clarion maintains all the high-quality attributes expected from AGM, including:

  • 12μm thermal detector
  • Superior sub-20 milikelvin thermal sensitivity
  • 50Hz fast imaging
  • High-resolution OLED display
  • Adjustable color palettes
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video and audio recording
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 8 hours of battery life
  • External power supply compatibility
  • Waterproof and shockproof design
  • 5-year warranty



Package Includes:

  • AGM/ADM 2123 QRM Mount
  • Charger
  • 2 Rechargeable Batteries
  • USB Cable
  • Lens Tissue
  • User Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 384 × 288

NETD: Less than 20 mK (25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 25 mm; F0.8 / 50 mm; F1.0

Magnification: 2× - 16× / 4.5× - 36×

Field of View: 10.5° × 7.9° / 5.3° × 4.0°

Diopter Adjustment: -5 to +5 diopters

Focus Range: 4 m to infinity / 10 m to infinity

Exit Pupil: 6 mm

Eye Relief: 45 mm

Digital Zoom: 1×, 2×, 4×, 8×

Detection Range (6’ object): 1200 m/yd / 2600 m/yd

Display: 0.39-inch OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Boresight Adjustment: Digital Controlled

Video/Audio Recording: Yes/Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in EMMC (16 GB)

Picture-in-Picture (PIP): Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Reticle Options: 10 types, 4 colors, on/off

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and Rechargeable Li-ion Battery

Battery Life (Operating, 20°C): ≥ 8.5 hours (25°C, hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max. Recoil: 1000 g/0.4 ms

Weight (without mount and battery): 0.75 kg (1.65 lb)

Dimensions (without mount): 241 × 73 × 67 mm (9.5 × 2.9 × 2.6 in)
