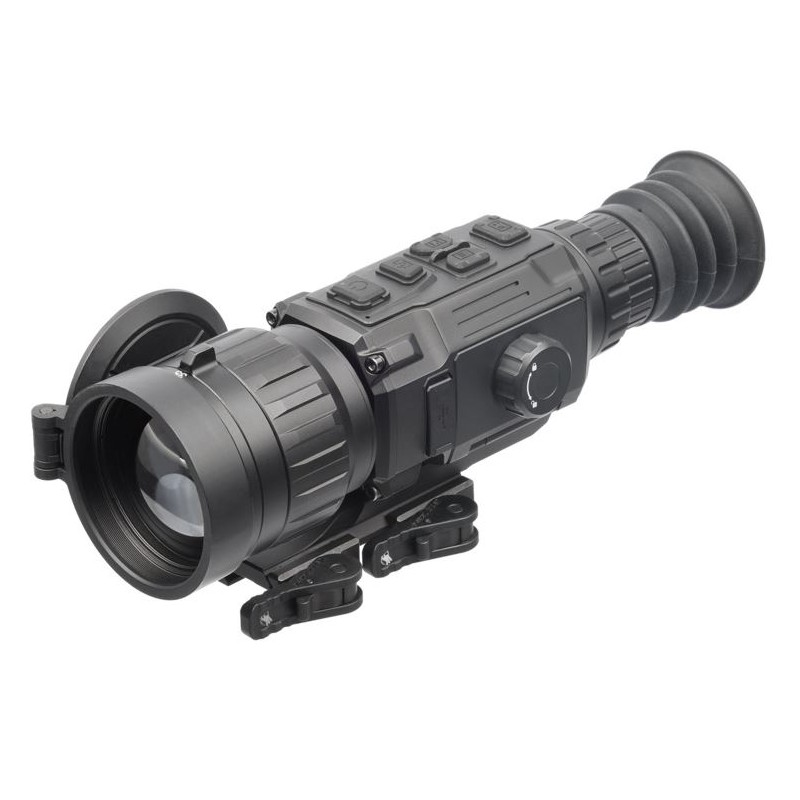

AGM Clarion 640 Dual Focus (35/60) Thermal Imaging Rifle Scope
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

AGM Clarion 640 Dual Focus (35/60) Thermal Imaging Rifle Scope

Introducing the revolutionary AGM Clarion dual base magnification thermal scope, one of the most advanced thermal scopes available today. The Clarion is designed to address a key challenge for night hunters: choosing the ideal lens size and sensor configuration to match their specific needs. PART NO.: CLAR35-640

6145.88 $
Tax included

4996.65 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Introducing the revolutionary AGM Clarion dual base magnification thermal scope, one of the most advanced thermal scopes available today. The Clarion is designed to address a key challenge for night hunters: choosing the ideal lens size and sensor configuration to match their specific needs. With its innovative dual-lens optical system, the Clarion allows users to seamlessly switch between a 35mm and a 60mm lens, providing versatile magnification and field of view options without sacrificing image clarity.

The Clarion 384 offers the flexibility to use a 35mm lens with a base magnification of 2x and a wider field of view (12.5° × 10.0° or 66 ft @ 100 yards) or to switch to a 60mm lens with a base magnification of 3x and a narrower field of view (7.3° × 5.9° or 36 ft @ 100 yards). This adaptability ensures optimal performance for various hunting conditions, whether you’re tracking hogs in dense terrain or coyotes in open landscapes.

In addition to its dual base magnification capability, the Clarion features a highly sensitive thermal sensor with a remarkable sub-20 milikelvin temperature sensitivity. It also retains all the premium features associated with AGM, including:

  • 12μm thermal detector
  • Exceptional sub-20 milikelvin thermal sensitivity
  • 50Hz fast imaging
  • High-resolution OLED display
  • Adjustable color palettes
  • Multiple reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 8.5 hours of battery life
  • External power supply compatibility
  • Waterproof and shockproof construction
  • 5-year warranty



Package Includes:

  • AGM/ADM 2123 QRM Mount
  • Charger
  • 2 Rechargeable Batteries
  • USB Cable
  • Lens Tissue
  • User Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

NETD: Less than 20 mK (25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 35 mm; F0.9 / 60 mm; F1.1

Magnification: 2× - 16× / 3× - 24×

Field of View: 12.5° × 10.0° / 7.3° × 5.9°

Diopter Adjustment: -5 to +5 diopters

Focus Range: 7 m to infinity / 10 m to infinity

Exit Pupil: 6 mm

Eye Relief: 45 mm

Digital Zoom: 1×, 2×, 4×, 8×

Detection Range (6’ object): 1800 m/yd / 3000 m/yd

Display: 0.39-inch OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Boresight Adjustment: Digital Controlled

Video/Audio Recording: Yes/Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in EMMC (16 GB)

Picture-in-Picture (PIP): Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Reticle Options: 10 types, 4 colors, on/off

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and Rechargeable Li-ion Battery

Battery Life (Operating, 20°C): ≥ 8.5 hours (25°C, hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max. Recoil: 1000 g/0.4 ms

Weight (without mount and battery): 0.84 kg (1.85 lb)

Dimensions (without mount): 254 × 80 × 68 mm (10.0 × 3.1 × 2.7 in)
