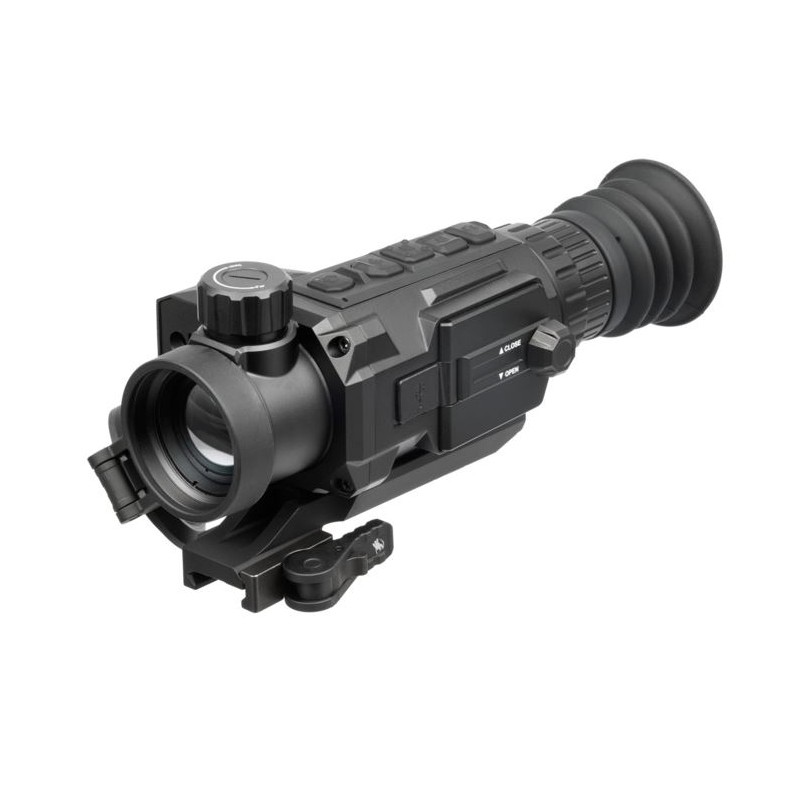

AGM Secutor LRF 35-384 thermal weapon sights

The new Secutor LRF series expands the AGM lineup of rangefinder-equipped thermal riflescopes, offering enhanced capabilities tailored for both tactical and commercial use. Featuring the same advanced thermal sensors found in many of AGM's latest products, the Secutor LRF sets itself apart with several key upgrades: a 1000-meter laser rangefinder, an integrated digital compass, and a CR123A battery system.

These upgrades are designed to meet the demands of tactical operations while also providing valuable benefits for commercial predator hunters. The extended range of the laser rangefinder, combined with the familiar CR123A battery system, makes the Secutor LRF an excellent choice for law enforcement and defense applications. The built-in digital compass enhances situational and positional awareness, while the new sub-20 milikelvin thermal sensors improve detection and identification at longer distances. Available in both 50mm and 75mm lens options, the Secutor LRF delivers exceptional long-range performance.

Key Features:

• 12μm thermal detector
• High thermal sensitivity with NETD < 20mK
• Fast 50Hz imaging
• Integrated 1000-meter laser rangefinder
• Adjustable color palettes
• High-resolution OLED display
• Ballistic calculator
• Various reticle types and colors
• 1x, 2x, 4x, 8x digital zoom
• On-board video/audio recording and image capture
• Built-in EMMC storage (16 GB)
• Wi-Fi data transmission
• Standby mode
• Over 6 hours battery life
• External power supply compatibility
• Waterproof and shockproof construction
• 3-year warranty

Package Includes:

• AGM/ADM 2125 QRM Mount
• 4 CR123A Batteries
• Lens Tissue
• USB Cable
• User Manual
• Carrying Case

Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 384 × 288

Refresh Rate: 50 Hz

Response Waveband: 8 μm to 14 μm

NETD: Less than 20 mK (@25°C, F#=1.0)

Lens System: 35 mm; F1.0

Field of View (H×V): 7.5° × 5.6°

Magnification: 3× – 24×

Digital Zoom: 1×, 2×, 4×, 8×

Detection Range (6’ object): 1,800 m/yd

Eye Relief: 45 mm

Exit Pupil: 6 mm

Diopter Adjustment: -5 to +3 dpt

Monitor: 0.39-inch, OLED, 1024×768

Flat Field Correction (FFC): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Reticle Options: 10 types, 4 colors, on/off

Boresight Adjustment: Digital Controlled

Laser Rangefinder: Up to 1000 m, ±4 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Highest Temperature Spot Tracking: Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Standby Mode: Yes

Picture-in-Picture Mode: Yes

Burn Prevention: Yes

Built-in Storage: 16 GB EMMC

Video/Audio Recording: Yes

Image Capture: Yes

Shot Activated Recording (SAR): Yes

Battery Type: Four CR123A Lithium batteries

Battery Life (Wi-Fi off): Over 7 hours

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to 55°C (-22°F to 131°F)

Protection Level: IP67

Max Recoil: 1,000 g / 0.4 ms

Dimensions (without mount): 215 × 101 × 74 mm (8.5 × 4.0 × 2.9 in)

Weight (without mount and battery): 0.6 kg (1.32 lb)
