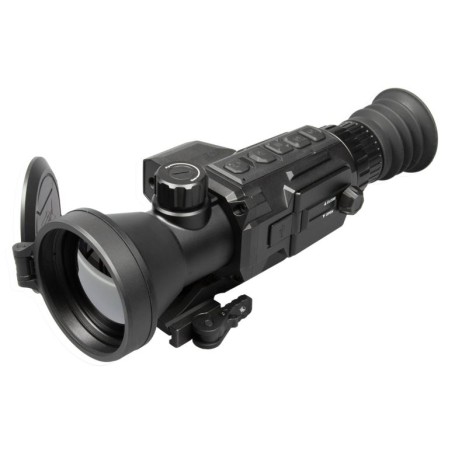

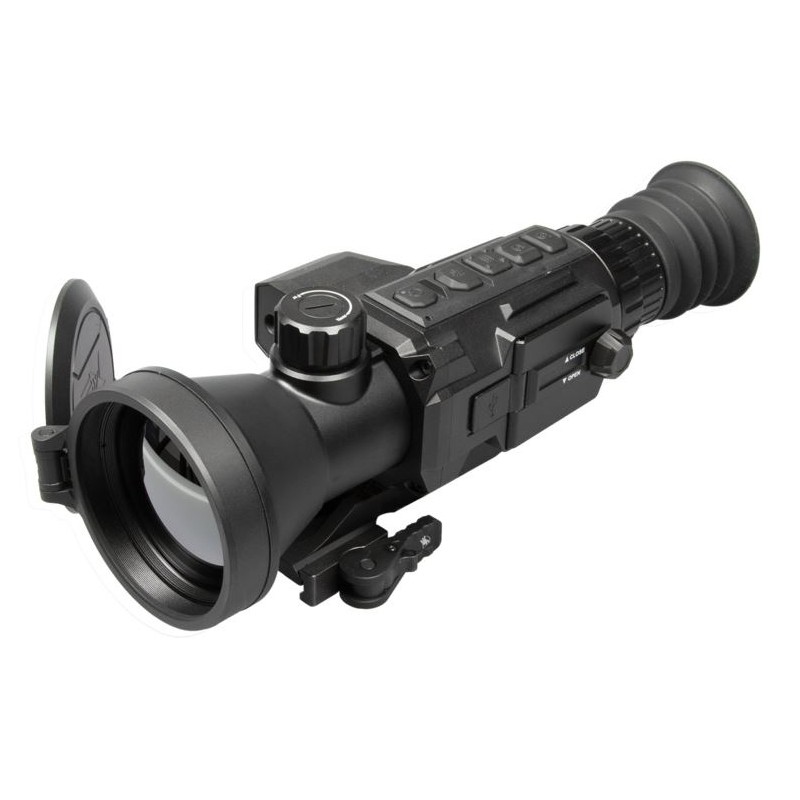

AGM Secutor LRF 75-640 thermal weapon sights
The newly launched Secutor LRF series enhances the AGM rangefinder-equipped thermal riflescopes, broadening its capabilities and applications. While these scopes utilize the advanced thermal sensors found in most of AGM’s latest models, they distinguish themselves with three key upgrades: a 1000-meter laser rangefinder, a digital compass, and a CR123A battery system. PART NO.: SECU75-640-LRF
6129.66 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The newly launched Secutor LRF series enhances the AGM rangefinder-equipped thermal riflescopes, broadening its capabilities and applications. While these scopes utilize the advanced thermal sensors found in most of AGM’s latest models, they distinguish themselves with three key upgrades: a 1000-meter laser rangefinder, a digital compass, and a CR123A battery system. These features cater to tactical professionals and also offer extended range and battery convenience for commercial predator hunters.
The 1000-meter laser rangefinder and CR123A power system make the Secutor LRF a versatile choice for law enforcement and defense use, while the integrated compass enhances situational and positional awareness. The new sub-20 milikelvin thermal sensors improve detection and identification at longer ranges. Available in both 50mm and 75mm lens options, the Secutor LRF provides exceptional long-range performance.
Key Features:
- 12μm thermal detector
- High thermal sensitivity with NETD < 20mK
- Fast 50Hz imaging
- Built-in 1000-meter laser rangefinder
- Adjustable color palettes
- High-resolution OLED display
- Ballistic calculator
- Various reticle types and colors
- 1x, 2x, 4x, 8x digital zoom
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- Over 6 hours battery life
- External power supply compatibility
- Waterproof and shockproof
- 5-year warranty
Package Includes:
- AGM/ADM 2125 QRM Mount
- Two Rechargeable Batteries
- Charger
- USB Cable
- Lens Cloth
- Manual
- Carrying Case
Specifications:
Detector Type: 12μm VOx Uncooled Focal Plane Array
Resolution: 640 × 512
Refresh Rate: 50 Hz
Response Waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C, F#=1.0)
Lens System: 75 mm; F1.2
Field of View (H×V): 5.9° × 4.7°
Magnification: 4× – 32×
Digital Zoom: 1×, 2×, 4×, 8×
Detection Range (6’ object): 3,200 m/yd
Eye Relief: 45 mm
Exit Pupil: 6 mm
Diopter Adjustment: -5 to +5 dpt
Monitor: 0.39-inch OLED, 1024×768
Flat Field Correction (FFC): Auto, Manual, External Correction
Palettes: Black Hot, White Hot, Red Hot, Fusion
Reticle Options: 10 types, 4 colors, on/off
Boresight Adjustment: Digital Controlled
Laser Rangefinder: Up to 1000 m, ±4 m accuracy
Laser Wavelength: 905 nm
Laser Safety Class: Class 1
Highest Temperature Spot Tracking: Yes
Defective Pixel Correction: Yes
Wi-Fi Hotspot: Yes
Standby Mode: Yes
Picture-in-Picture Mode: Yes
Burn Prevention: Yes
Built-in Storage: 16 GB EMMC
Video/Audio Recording: Yes
Image Capture: Yes
Shot Activated Recording (SAR): Yes
Battery Type: Four CR123A Lithium batteries
Battery Life (Wi-Fi off): Over 6 hours
External Power: 5 VDC, 2 A, USB Type-C
Operating Temperature Range: -30°C to 55°C (-22°F to 131°F)
Protection Level: IP67
Max Recoil: 1,000 g / 0.4 ms
Dimensions (without mount): 250 × 110 × 78 mm (9.8 × 4.3 × 3.1 in)
Weight (without mount and battery): 0.73 kg (1.61 lb)
