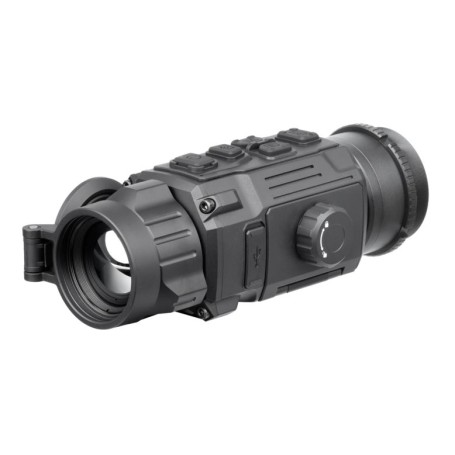

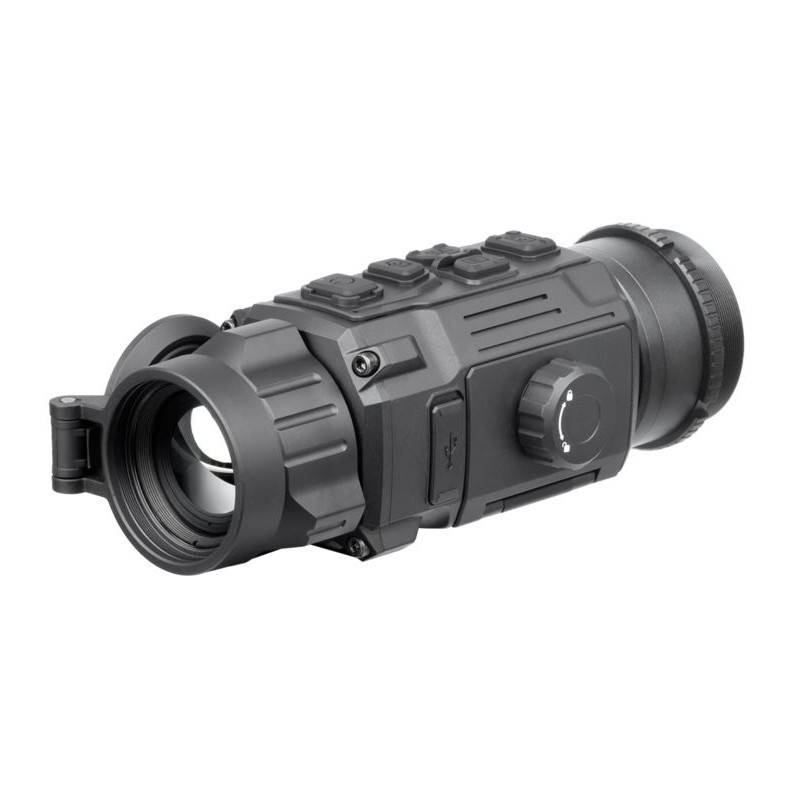

AGM Rattler-C V2 35-384 Thermal Imaging Clip-On

The NEW AGM Rattler-C V2 series sets a new standard in thermal clip-ons with its industry-leading 12μm thermal detectors, boasting a NETD of less than 20mK. These advanced detectors provide users with some of the highest image quality AGM has ever produced, with detection ranges reaching up to 2,600 yards. Featuring high-sensitivity sensors with resolutions of 384×288 or 640×512, the Rattler-C V2 delivers crystal-clear images in challenging conditions, including darkness, fog, smoke, dust, rain, snow, and camouflage.

The Rattler-C V2 can be effortlessly mounted in front of daytime scopes, instantly converting them into powerful thermal imaging devices without the need for special tools. It operates on replaceable and rechargeable Li-ion batteries, offering up to 11 hours of continuous use on a single charge (two batteries included). For extended operational time, an external 5V power bank can be connected via USB-C. The onboard Wi-Fi module supports live video streaming and recording of both video and images through a mobile app.

Key Features:

• Seamless conversion of daytime optics to thermal imaging
• 12μm high-sensitivity thermal detector with NETD < 20mK
• Fast 50Hz imaging
• High-resolution OLED display
• Adjustable color palettes
• Onboard video and audio recording, plus image capture
• Built-in 16 GB EMMC storage
• Shot Activated Recording (SAR)
• Wi-Fi data transmission
• Stadiametric rangefinder
• Standby mode
• 9 to 11 hours of battery life (depending on model)
• External power supply compatibility
• Waterproof and shockproof
• 3-year warranty

Package Includes:

• AGM/ADM 2120 QRM or Front Q-R adapter
• Two Rechargeable Batteries
• Charger
• USB Cable
• Lens Cloth
• Manual
• Carrying Case

Specifications:

Resolution: 384 × 288

Detector Type: 12μm VOx Uncooled Focal Plane Array

NETD: Less than 20 mK (@25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 35 mm; F/1.0

Optical Magnification: 1x

Field of View: 7.5° × 5.6°

Focus Range: 2 m to infinity

Exit Pupil: 22 mm

Eye Relief: 10 mm

Detection Range (6’ object): 1,800 m/yd

Display: 0.39-inch OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Video/Audio Recording: Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in 16 GB EMMC

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and Rechargeable Li-ion

Battery Life (Operating, 20°C): Up to 11 hours (25°C, with hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max Recoil: 1,000 g / 0.4 ms

Weight (without mount and battery): 0.54 kg (1.19 lb)

Dimensions (without mount): 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)
