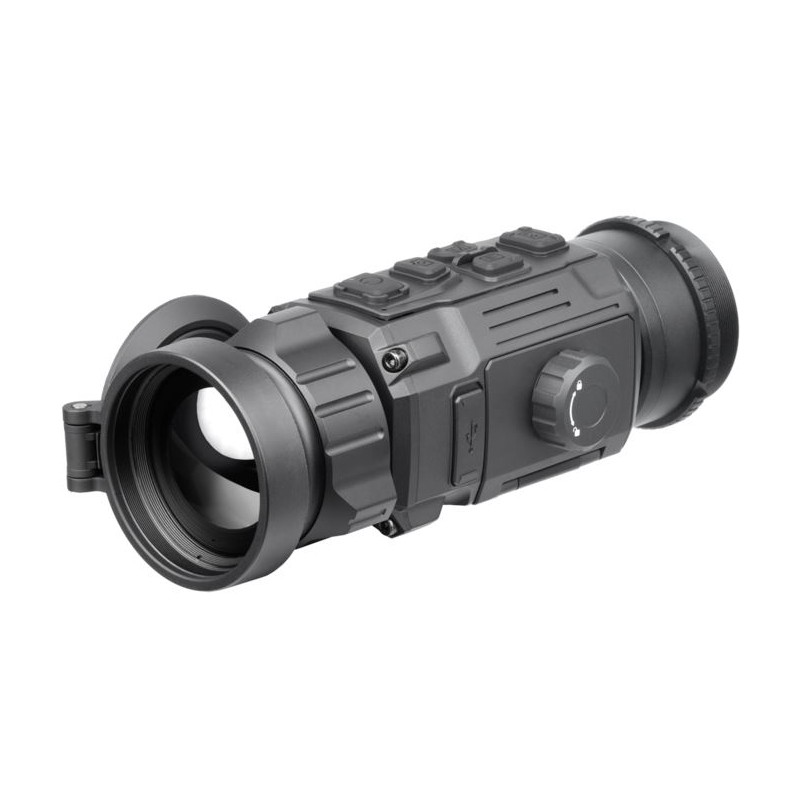

AGM Rattler-C V2 50-640 Thermal Imaging Clip-On

The NEW AGM Rattler-C V2 series revolutionizes thermal clip-ons with its cutting-edge 12-micron detectors, featuring a NETD of less than 20mK. These advanced sensors deliver some of the best image quality AGM has ever achieved, with detection ranges reaching up to 2,600 yards. PART NO.: 314205560206R561

3813.00 $
Tax included

3100 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The NEW AGM Rattler-C V2 series revolutionizes thermal clip-ons with its cutting-edge 12-micron detectors, featuring a NETD of less than 20mK. These advanced sensors deliver some of the best image quality AGM has ever achieved, with detection ranges reaching up to 2,600 yards. The Rattler-C V2's high-sensitivity sensor, available in 384×288 or 640×512 resolutions, ensures clear imaging even in challenging conditions like darkness, fog, smoke, dust, rain, snow, and camouflage.

Designed for versatility, the Rattler-C V2 can be swiftly mounted in front of daytime scopes, instantly transforming them into thermal imaging devices without the need for special tools. It operates on replaceable and rechargeable Li-ion batteries, offering up to 11 hours of continuous use on a single charge (two batteries included). For extended operation, an external 5V power bank can be connected via USB-C. Additionally, the onboard Wi-Fi module supports live video streaming and recording of both video and images via a mobile app.

Key Features:

  • Instantly converts daytime optics to thermal imaging scope
  • 12μm high-sensitivity thermal detector with NETD < 20mK
  • Fast 50Hz imaging
  • High-resolution OLED display
  • Adjustable color palettes
  • Onboard video and audio recording, plus image capture
  • Built-in 16 GB EMMC storage
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 9 hours of battery life (depending on model)
  • External power supply compatibility
  • Waterproof and shockproof
  • 3-year warranty



Package Includes:

  • AGM/ADM 2120 QRM or Front Q-R adapter
  • Two Rechargeable Batteries
  • Charger
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case



Specifications:

Resolution: 640 × 512

Detector Type: 12μm VOx Uncooled Focal Plane Array

NETD: Less than 20 mK (@25°C, F# = 1.0)

Refresh Rate: 50 Hz

Lens System: 50 mm; F/1.0

Optical Magnification: 1×

Field of View: 8.8° × 7.0°

Focus Range: 10 m to infinity

Exit Pupil: 22 mm

Eye Relief: 10 mm

Detection Range (6’ object): 2,600 m/yd

Display: 0.39-inch OLED, 1024×768

Palettes: Black Hot, White Hot, Red Hot, Fusion

Flat Field Correction: Auto, Manual, External Correction

Scene Modes: Cold, Warm

Video/Audio Recording: Yes

Image Capture: Yes

Standby Mode: Yes

Storage: Built-in 16 GB EMMC

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Hot Track: Yes

Distance Measurement: Yes (Stadiametric)

Shot Activated Recording (SAR): Yes

Battery Type: Replaceable and Rechargeable Li-ion

Battery Life (Operating, 20°C): Up to 9 hours (25°C, with hotspot off)

External Power Supply: 5 VDC, 2 A, USB Type-C

Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max Recoil: 1,000 g / 0.4 ms

Weight (without mount and battery): 0.55 kg (1.2 lb)

Dimensions (without mount): 196 × 73 × 68 mm (7.7 × 2.9 × 2.7 in)
