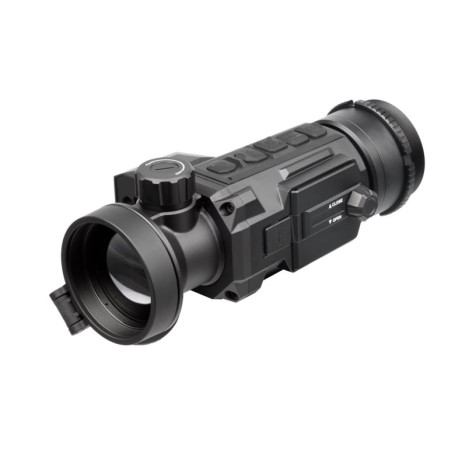

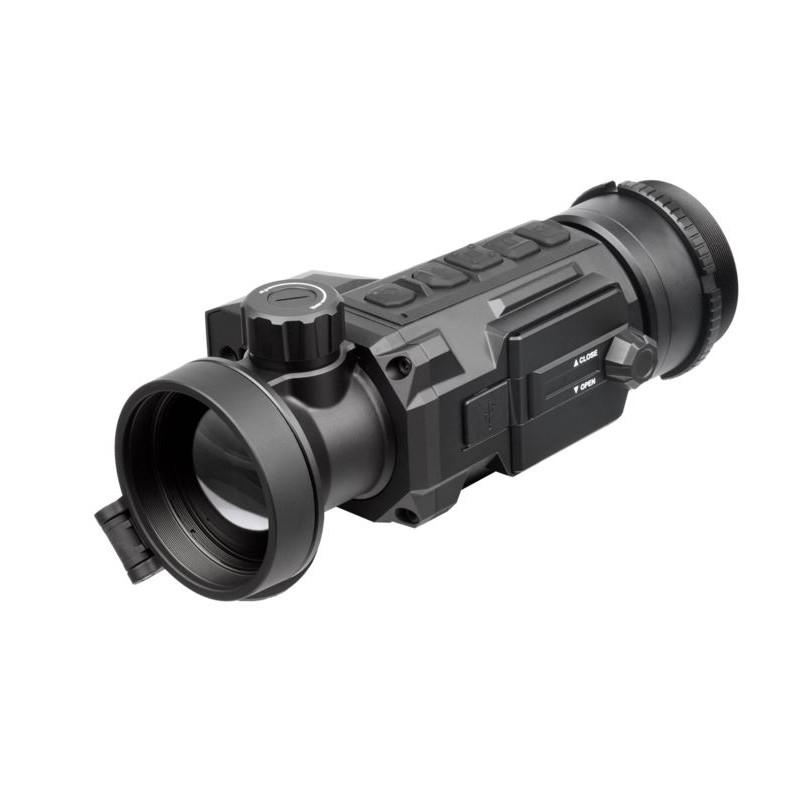

AGM Secutor LRF-C 50-640 Thermal Imaging Clip-On

The Secutor LRF-C is a compact thermal imaging clip-on system that seamlessly converts daytime optics into a thermal imaging device, requiring no special tools or equipment. Featuring a highly sensitive 12μm thermal detector and a 1024×768 OLED display, the Secutor LRF-C delivers clear images even in challenging conditions such as darkness, fog, smoke, dust, rain, snow, and camouflage. PART NO.: SECU50-640C-LRF

6145.88 $
Tax included

4996.65 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Secutor LRF-C is a compact thermal imaging clip-on system that seamlessly converts daytime optics into a thermal imaging device, requiring no special tools or equipment. Featuring a highly sensitive 12μm thermal detector and a 1024×768 OLED display, the Secutor LRF-C delivers clear images even in challenging conditions such as darkness, fog, smoke, dust, rain, snow, and camouflage. Its intuitive interface and ergonomic controls make it easy to use. The Secutor LRF-C mounts effortlessly in front of rifle scopes with up to 10x magnification, making it ideal for medium-range applications.

The built-in precision laser rangefinder accurately measures the distance between the observer and the target, with results displayed directly on the scope's monitor. Powered by four replaceable Li-Ion batteries, the device offers over 6 hours of continuous operation on a single charge. For extended use, an external 5V power bank can be connected via a USB-C port. The Secutor LRF-C includes fast EMMC storage for on-board video/audio recording and image capture. Its onboard Wi-Fi module supports live video streaming and recording via mobile applications.

Key Features:

  • Instantly converts daytime optics to thermal imaging
  • 12μm thermal detector with high sensitivity (NETD < 20 mK)
  • Fast 50Hz imaging
  • Built-in laser rangefinder with up to 1000m range
  • Adjustable color palettes
  • High-resolution OLED display
  • On-board video and audio recording, plus image capture
  • 16 GB built-in EMMC storage
  • Wi-Fi data transmission
  • Standby mode
  • Over 6 hours of battery life
  • External power supply compatibility
  • Waterproof and shockproof
  • 5-year warranty



Package Includes:

  • CR123 Battery
  • AGM/ADM 2124 QRM or Front Q-R Adapter
  • Lens Tissue
  • USB Cable
  • User Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

Refresh Rate: 50 Hz

Response Waveband: 8 μm to 14 μm

NETD: Less than 20 mK (@25°C, F#=1.0)

Lens System: 50 mm; F1.0

Field of View (H×V): 8.8° × 7.0°

Magnification: 1×

Detection Range (6’ object): 2,600 m/yd

Exit Pupil: 22 mm

Monitor: 1024x768, 0.39 inch OLED

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Laser Range Finder: Up to 1000 m, ±4 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Highest Temperature Spot Tracking: Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Standby Mode: Yes

Burn Prevention: Yes

Built-in Storage: 16 GB EMMC

Video/Audio Recording: Yes

Image Capture: Yes

Shot Activated Recording: Yes

Battery Type: Four CR123A Lithium Batteries

Battery Life (Wi-Fi off): Over 6 hours

External Power: 5 VDC/2 A, USB Type-C

Operating Temperature: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max Recoil: 1,000 g / 0.4 ms

Dimensions (without mount): 193 × 104 × 74 mm (7.6 × 4.1 × 2.9 in)

Weight (without mount and battery): 0.63 kg (1.38 lb)
