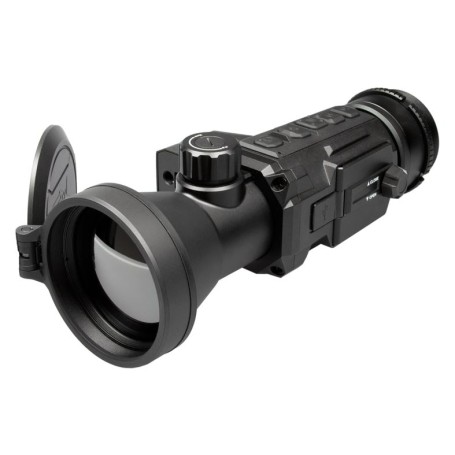

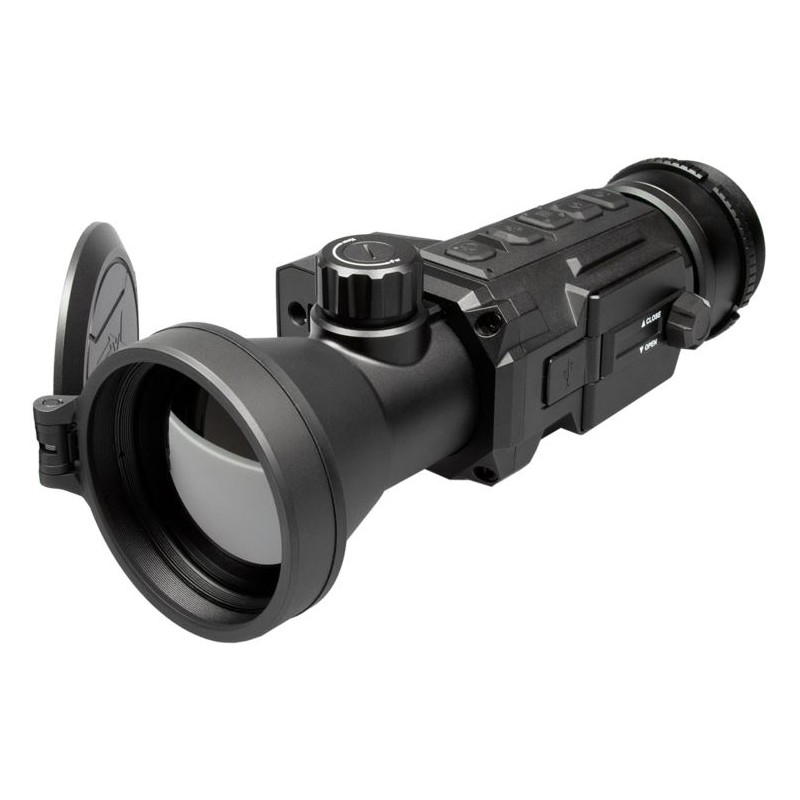

AGM Secutor LRF-C 75-640 Thermal Imaging Clip-On

The Secutor LRF-C is a versatile thermal imaging clip-on system featuring a built-in precision laser rangefinder. It easily transforms daytime optics into a thermal imaging device with no additional tools required. This compact system is equipped with a highly sensitive 12μm thermal detector and a 1024×768 OLED monitor, delivering exceptional image clarity in challenging conditions such as darkness, fog, smoke, dust, rain, snow, and camouflage. PART NO.: SECU75-640C-LRF

7539.48 $
Tax included

6129.66 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Secutor LRF-C is a versatile thermal imaging clip-on system featuring a built-in precision laser rangefinder. It easily transforms daytime optics into a thermal imaging device with no additional tools required. This compact system is equipped with a highly sensitive 12μm thermal detector and a 1024×768 OLED monitor, delivering exceptional image clarity in challenging conditions such as darkness, fog, smoke, dust, rain, snow, and camouflage. Its user-friendly interface and ergonomic controls ensure straightforward operation.

The Secutor LRF-C mounts seamlessly in front of rifle scopes with magnifications up to 10x, making it suitable for medium-range applications. The integrated laser rangefinder accurately measures the distance to the target, with results displayed directly on the scope’s monitor. With four replaceable Li-Ion batteries, the device provides over 6 hours of continuous use. For extended operation, an external 5V power bank can be connected via USB-C. The device also features fast EMMC storage for video/audio recording and image capture. Its onboard Wi-Fi module supports live video streaming and recording through mobile applications.

Key Features:

  • Instantly converts daytime optics to thermal imaging
  • 12μm high-sensitivity thermal detector (NETD < 20 mK)
  • Fast 50Hz imaging
  • Built-in laser rangefinder (up to 1000 m)
  • Adjustable color palettes
  • High-resolution OLED display
  • On-board video and audio recording, plus image capture
  • 16 GB built-in EMMC storage
  • Wi-Fi data transmission
  • Standby mode
  • Over 6 hours of battery life
  • External power supply compatibility
  • Waterproof and shockproof
  • 5-year warranty



Package Includes:

  • CR123 Battery
  • AGM/ADM 2124 QRM or Front Q-R Adapter
  • Lens Tissue
  • USB Cable
  • User Manual
  • Carrying Case



Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

Refresh Rate: 50 Hz

Response Waveband: 8 μm to 14 μm

NETD: Less than 20 mK (@25°C, F#=1.0)

Lens System: 75 mm; F1.2

Field of View (H×V): 5.9° × 4.7°

Magnification: 1×

Detection Range (6’ object): 3,800 m/yd

Exit Pupil: 22 mm

Monitor: 1024x768, 0.39 inch OLED

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Laser Range Finder: Up to 1000 m, ±4 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Highest Temperature Spot Tracking: Yes

Defective Pixel Correction: Yes

Wi-Fi Hotspot: Yes

Standby Mode: Yes

Burn Prevention: Yes

Built-in Storage: 16 GB EMMC

Video/Audio Recording: Yes

Image Capture: Yes

Shot Activated Recording: Yes

Battery Type: Four CR123A Lithium Batteries

Battery Life (Wi-Fi off): Over 6 hours

External Power: 5 VDC/2 A, USB Type-C

Operating Temperature: -30°C to +55°C (-22°F to 131°F)

Protection Level: IP67

Max Recoil: 1,000 g / 0.4 ms

Dimensions (without mount): 228 × 111 × 81 mm (9 × 4.4 × 3.2 in)

Weight (without mount and battery): 0.73 kg (1.6 lb)
