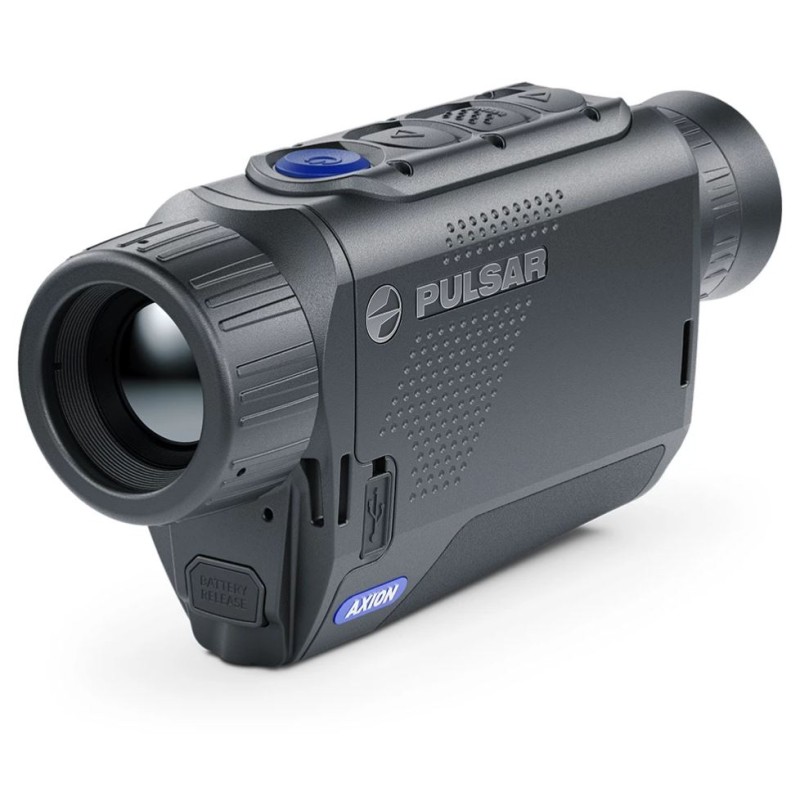

Pulsar Axion XQ30 PRO Thermal Imaging monocular

European-Made Thermal Imaging Sensors The Axion Compact Series is perfect for scanning and detecting game. Equipped with high-quality, European-made thermal sensors, these monoculars deliver outstanding image clarity in any condition. The 384×288/17 micron sensor ensures superior thermal sensitivity for accurate detection.

Pocket-Sized and Lightweight Designed with portability in mind, the Axion monoculars are compact and lightweight, weighing less than 300 grams. This makes them ideal for hunters and travelers seeking a truly compact thermal imaging solution. The symmetrical button layout on the upper panel allows for easy operation by both right- and left-handed users.

Wide Field of View for Easy Scanning With a wide field of view, Axion Compact monoculars make it simple to scan and locate heat-emitting objects. This broad view enables quick spotting of targets, allowing users to focus on the most interesting subjects while keeping the entire scene in perspective.

Photo and Video Recording The built-in video recorder is perfect for capturing unforgettable moments. With a single press of the REC button, you can record videos or take photos, which can be easily shared with friends, family, or colleagues. The internal memory stores hours of footage and countless photos.

Rugged Magnesium Alloy Housing The Axion is built for tough conditions, with a durable magnesium alloy housing that is both lightweight and strong. This robust design protects the internal components from shocks, drops, moisture, and extreme temperatures, while also helping to dissipate heat, reduce image noise, and ensure consistent performance during extended use.

Sensitivity Amplification Levels Axion offers three sensitivity amplification levels combined with advanced filtration algorithms and fine adjustments for brightness and contrast. This increases the likelihood of detecting animals in challenging weather conditions, such as heavy rain or high humidity, ensuring optimal rendering of both the target and background.

Eight Color Palettes With a choice of eight color palettes, the Axion can be customized for specific tasks and varying observation conditions. White Hot, Black Hot, and Red Hot are ideal for detecting objects, while Rainbow and Ultramarine enhance recognition and identification. Red Monochrome, Sepia, and Violet are best suited for long night-time observations.

In the Box:

• Axion XQ Pro Thermal Imager
• APS 3 rechargeable battery
• Power Adapter
• USB Type-C cable with USB Type-A adapter
• Carrying case
• Hand strap
• Quick User Manual
• Lens-cleaning cloth
• Warranty sheet

Main Specifications:

• Sensor: 384x288 @ 17 µm (NETD < 25 mK)
• Objective Lens: F30/1.2
• Magnification: 2 – 8x (4x zoom)
• Field of View (HxV): 13.3° x 10° / 23.3 m x 17.5 m at 100 m
• Detection Range: 850 m
• Sensor Type: Uncooled
• Resolution: 384x288 pixels
• Pixel Pitch: 17 µm
• NETD: < 25 mK
• Frame Rate: 50 Hz

Optics:

• Objective Lens: F30/1.2
• Magnification: 2 – 8x (4x zoom)
• Field of View (HxV): 13.3° x 10° / 23.3 m x 17.5 m at 100 m

Display:

• Type: AMOLED HD
• Resolution: 640x400 pixels

Range Performance:

• Detection Range: 850 m

Video Recorder:

• Resolution: 528x400 pixels
• Format: .mp4 / .jpg
• Built-in Memory: 16 GB

Wi-Fi:

• Wireless Protocol: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz

Environmental Characteristics:

• Waterproof Rating: IPX7
• Operating Temperature: -25°C to +40°C

Connections & Compatibility:

• Mount Type: 1/4" (compatible with tripods)
• Supported Application: Stream Vision 2

Power Supply:

• Output Voltage: 4.2-3.0 V
• Battery Type: Dual Li-Ion B-Pack Mini Power System (2 Ah external / 4.9 Ah internal)
• Battery Capacity: 3200 mAh
• Operating Time: Up to 8 hours at 22°C
• External Power Supply: 5V (USB)

Dimensions & Weight:

• Body Material: Magnesium alloy
• Dimensions: 144 x 41 x 69 mm
• Weight: 0.3 kg (with battery)
