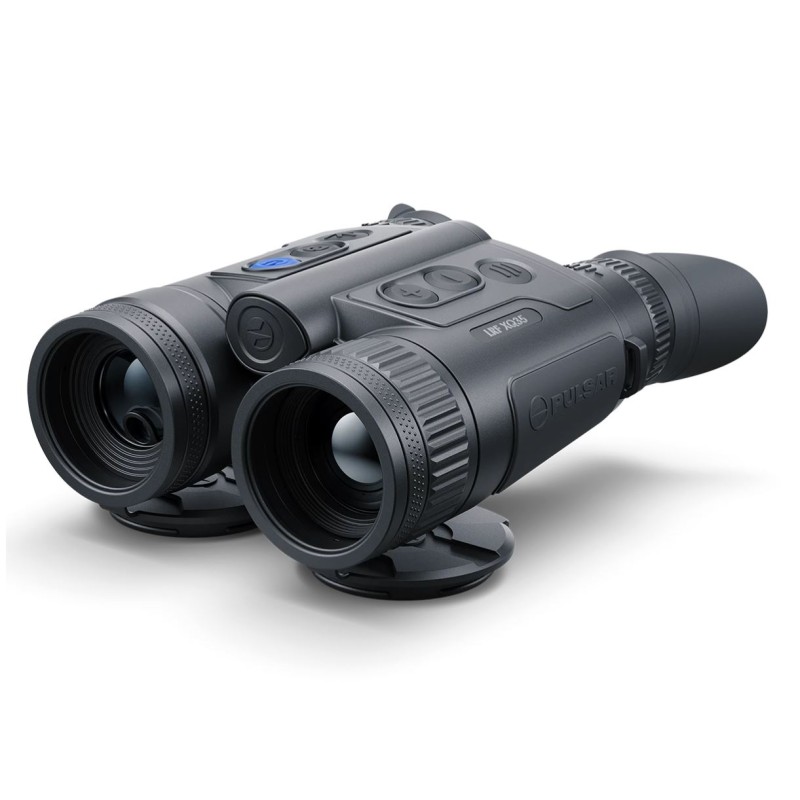

Pulsar Merger LRF XP35 Thermal Imaging Binoculars 77484

The Pulsar Merger LRF XP35 is the most compact model in its range, offering the widest field of view in its class at 17.8°. Despite its compact size, it delivers outstanding thermal sensitivity for highly detailed and informative observations, even in the harshest conditions.

Key Features:

Widest Field of View:
The Merger LRF XP35 features a 640×480/17 µm sensor, providing an impressive 17.8-degree field of view. This wide field of view allows for easier scanning and spotting of heat-emitting objects, reducing the effects of image shaking and increasing situational awareness. The combination of excellent image detail at base magnification and the wide field of view ensures enhanced viewing comfort and scene perception.

Extra-Long Detection Range:
The powerful objective lens, paired with a professional-grade 12 µm / 1024×768 pixel HD thermal sensor, allows for exceptional detection capabilities. A human-sized object (1.8m tall) can be detected from up to 2300 meters away, even in complete darkness.

User Mode for Personalized Settings:
Adjust brightness and contrast to optimize image detail for specific conditions. The User Mode feature saves these settings, ensuring the device is ready for optimal performance during the next use without additional adjustments.

Classic Binocular Design:
Designed in the style of traditional daytime binoculars, the Merger LRF XP35 is compact and fits comfortably in the hand. The six function buttons are ergonomically placed for easy access, allowing quick activation of frequently used features with a single touch.

Comfortable Two-Eye Viewing:
The Merger LRF XP35 is designed to align with natural human vision, utilizing both eyes for a less tiring viewing experience. This binocular design provides superior detection of faint or small objects and improves performance in low-contrast situations, surpassing similar monocular devices. The interpupillary distance can be adjusted from 62 to 74 mm to accommodate individual users.

Precise Laser Rangefinder:
The built-in laser rangefinder measures distances up to 1000 meters, providing highly accurate measurements (± 1 meter) in both single-shot and continuous scanning modes, ensuring quick and reliable distance assessments.

Included in the Box:

• Rechargeable APS3 battery
• Instruction manual
• USB cable
• USB/230V charger
• Lens cleaning cloth
• Neck strap
• Lens cap
• Protective cover
• Warranty card with hologram
• APS battery docking station
• ¼” tripod adapter

Main Specifications:

• Sensor: 640x480 @ 17 µm (NETD < 25 mK)
• Objective Lens: F35 / 1.0
• Magnification: 2 – 16x
• Field of View (HxV): 17.8° / m@100m
• Detection Range: 1350 meters
• Sensor Type: Uncooled
• Resolution: 640x480 pixels
• Pixel Pitch: 17 µm
• NETD: < 25 mK
• Frame Rate: 50 Hz

Optics:

• Objective Lens: F35 / 1.0
• Magnification: 2 – 16x
• Interpupillary Distance: 63-74 mm
• Eye Relief: 15 mm

Display:

• Type: AMOLED HD
• Resolution: 1024x768 pixels

Laser Rangefinder:

• Max Measuring Range: 1000 meters
• Measurement Accuracy: ± 1 meter
• Laser Safety Class: 1 (according to IEC 60825-1:2014)
• Wavelength: 905 nm

Video Recorder:

• Resolution: 1024x768 pixels
• Format: .mp4 / .jpg
• Built-In Memory: 16 GB

Wi-Fi:

• Protocol: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz

Environmental Characteristics:

• Protection Rating: IPX7 (waterproof)
• Operating Temperature: -25°C to +50°C

Connections & Compatibility:

• Mount Type: 1/4" socket
• Supported Application: Stream Vision 2

Weight & Dimensions:

• Material: Magnesium alloy
• Dimensions: 165x133x68 mm
• Weight: 0.83 kg (including batteries)
