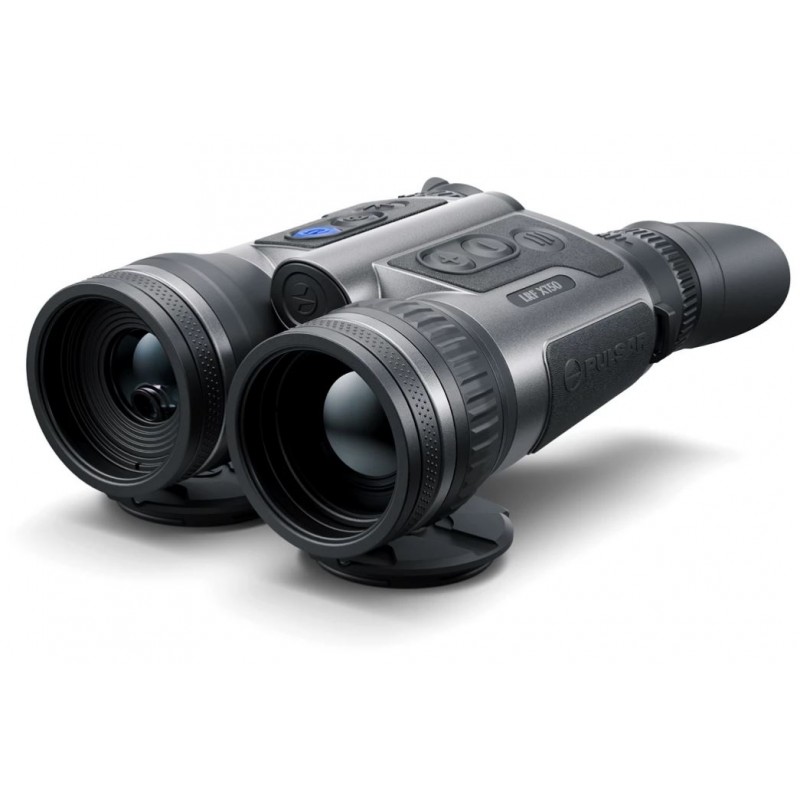

Pulsar Merger LRF XT50 Thermal Imaging Binoculars 77486

The Merger LRF XT50 stands out as a premium model within the Pulsar thermal imaging binocular series, delivering exceptional image clarity through its high-resolution 1280x1024 pixel thermal sensor and AMOLED 1280x960 microdisplay. With a wide 17.5-degree field of view and variable magnification ranging from 2x to 16x, this device offers superior imaging for both close and distant observations.

This series provides an unparalleled thermal imaging experience, utilizing European-made professional-grade thermal sensors. These sensors, available in 12-micron 1280x1024 and 1024x768 configurations, deliver high-definition imagery, even at maximum zoom, thanks to advanced algorithms that enhance detail and sharpness.

High Magnification with Clarity
The digital zoom feature allows for increased magnification while maintaining sufficient image detail, making it ideal for identifying even the smallest objects. The advanced image processing ensures a sharp, clear view at every zoom level.

Wide Field of View
A wide field of view simplifies scanning and spotting heat signatures, reducing image shake and improving situational awareness. This wide perspective, combined with detailed image resolution at base magnification, enhances overall viewing comfort and environmental perception.

Extended Detection Range
Equipped with powerful germanium optics and advanced thermal sensors, the Merger LRF XT50 can detect heat sources from distances exceeding 2 kilometers, making it a leader in long-range detection.

User Mode for Optimized Settings
Customizable brightness and contrast settings allow for enhanced detail in specific observation conditions. Once optimized, these settings can be saved in the device's memory for future use, eliminating the need for repeated adjustments.

Ergonomic Binocular Design
The classic binocular form factor ensures both ergonomic comfort and intuitive usability. Compact and lightweight, the Merger LRF XT50 fits comfortably in hand while maintaining a sleek, professional appearance. Its six function buttons are strategically placed for easy access, with essential functions available at a single touch.

Binocular Vision for Reduced Eye Strain
Designed with human vision in mind, the dual-channel view of the Merger LRF XT50 reduces eye strain, making it more comfortable for extended use compared to monocular devices. This design improves performance in low-contrast environments and allows better detection of small or distant objects. The interpupillary distance can be adjusted from 63 to 74 mm to suit individual users.

Precise Laser Rangefinder
The integrated laser rangefinder provides accurate distance measurements up to 1500 meters, with a precision of ±1 meter, ensuring fast and accurate situational assessments.

Long Battery Life with Dual Battery System
The Merger LRF XT50 uses a dual battery system—one built-in 4 Ah battery and a replaceable 3.2 Ah battery—offering extended operational time on a single charge, making it reliable for long missions or extended outdoor use.

Included in the Package:

• Merger Thermal Binocular
• APS3 Battery Pack (2 units)
• APS Battery Charger
• Power Adapter
• USB Type-C Cable with USB Type-A Adapter
• Carrying Case
• Neck Strap
• Quick-Start Guide
• Lens Cloth
• Warranty Card
• Tripod Adapter

Key Specifications:

• Sensor: 1280x1024 @ 12 µm (NETD < 40 mK)
• Objective Lens: F50 / 1.0
• Magnification: 2x – 16x
• Field of View (HxV): 17.5° x 14° / 30.7 m @ 100 m
• Detection Range: 2300 m

Sensor Details:

• Type: Uncooled
• Resolution: 1280x1024 pixels
• Pixel Pitch: 12 µm
• NETD: < 40 mK
• Frame Rate: 50 Hz

Optical Specifications:

• Objective Lens: F50 / 1.0
• Magnification: 2x – 16x
• Field of View (HxV): 17.5° x 14° / 30.7 m @ 100 m
• Interpupillary Distance Adjustment: 62 – 74 mm
• Eye Relief: 15 mm

Display:

• Type: AMOLED HD
• Resolution: 1280x960 pixels

Laser Rangefinder:

• Maximum Measuring Range: 1500 m
• Measurement Accuracy: ± 1 m
• Safety Class for Laser Equipment (IEC 60825-1:2014): Class 1
• Wavelength: 905 nm

Video Recorder:

• Resolution: 1280x960 pixels
• Formats: .mp4 (video) / .jpg (photo)
• Built-in Memory: 64 GB

Wi-Fi Specifications:

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz

Environmental Specifications:

• Degree of Protection (IP Code IEC60529): IPX7 (waterproof)
• Operating Temperature Range: -25°C to +50°C

Connections and Compatibility:

• Mount Type: 1/4" socket
• Supported Application: Stream Vision 2

Physical Attributes:

• Body Material: Magnesium Alloy
• Dimensions: 197x140x72 mm
• Weight: 0.95 kg (with batteries included)

Product Code (SKU): 77486
