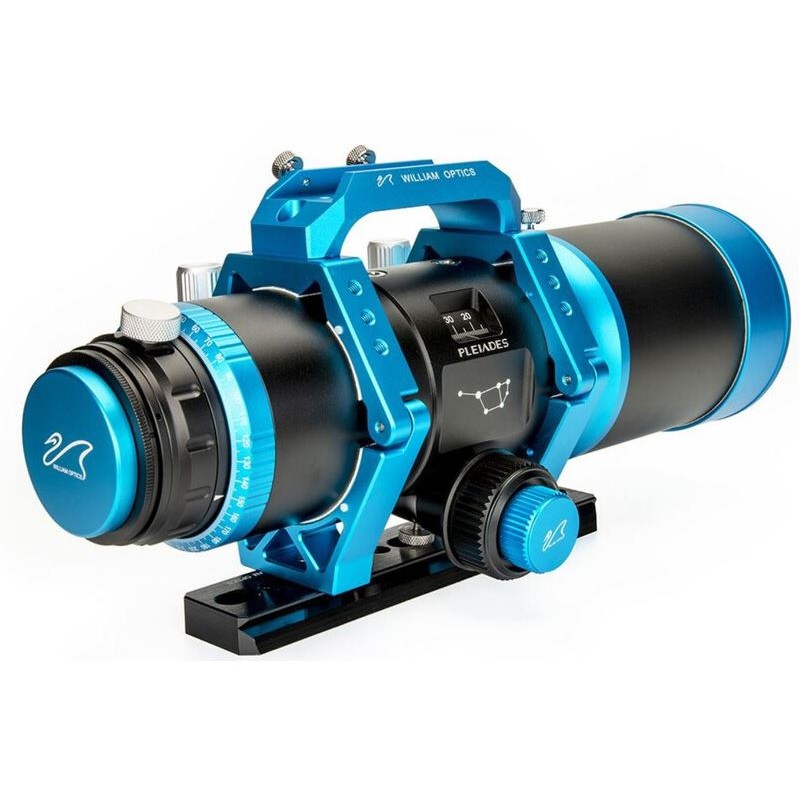

William Optics Apochromatic refractor Pleiades 68 AP 68/260 Astrograph OTA

The William Optics Pleiades 68 mm APO is a flagship model tailored for professional astrophotography, representing the pinnacle of innovation in compact astrographs. Combining advanced optical design with top-tier construction, the Pleiades series sets a new standard for portable telescopes on the market.

At the core of the Pleiades 68 mm APO is its seven-element optical system, which features three low-dispersion super ED glass lenses. This sophisticated design ensures exceptional chromatic aberration correction, delivering sharp, high-contrast images with stunning detail. Its large aperture and high light-gathering capabilities significantly reduce exposure times, making it an ideal tool for astrophotographers looking to capture the finest celestial details.

The telescope is equipped with William Optics’ patented WIFD (William Optics Internal Focus Design) system, which provides precise internal focusing. This system maintains perfect alignment even when using heavy SLR or astronomical cameras, eliminating the risk of vignetting. The focuser is also fully compatible with the William Optics EAF (Electronic Automatic Focuser), further enhancing its versatility.

The telescope tube is mounted with precision CNC-machined clamps, complete with a socket for attaching a finder or guide scope, making it a reliable and flexible instrument for a variety of astrophotography setups.

William Optics Pleiades 68 mm APO Key Features:

• Seven-element apochromatic refractor with three super ED glass lenses
• High aperture of f/3.8 for brighter images and reduced exposure times
• WIFD internal focusing system that eliminates vignetting, even with heavy cameras
• Compact design, perfect for mobile observation and astrophotography
• Precision CNC-machined mounting clamps for secure and stable setup

Included Components:

• William Optics Pleiades 68 mm APO Telescope
• Dew Shield
• M54 to M48 Adapter
• 210 mm Vixen-Style Dovetail Mount
• Bahtinov Mask with Mount
• Lens Cap
• Mounting Clamps
• Transport Case

Technical Specifications:

• Optical System: Apochromatic refractor
• Lens Configuration: 7-element system
• Low-Dispersion Lenses: 3 super ED glass lenses
• Lens Diameter: 68 mm
• Focal Length: 260 mm
• Aperture: f/3.8
• Fully Illuminated Disc Diameter: 48 mm
• Compatible Cameras: Full-frame, SLR, mirrorless, CMOS, CCD
• Camera Mount Compatibility: Canon EF, Canon RF, Nikon F, Nikon Z, Sony E, Pentax K, Micro 4/3, Fuji X (via interchangeable T-rings)
• Eyepiece Focusing: Internal focusing (WIFD)
• Tube Length (with dew shield extended): 410 mm
• Mounting Bracket: Vixen-style dovetail
• Rotator: Yes, 360°
• Camera Connection Threads: M54 / M48
• Tube Weight: 2.98 kg
• Weight with Mounting Clamps: 3.8 kg
• Tube Finish: Blue

Warranty:
24 months
