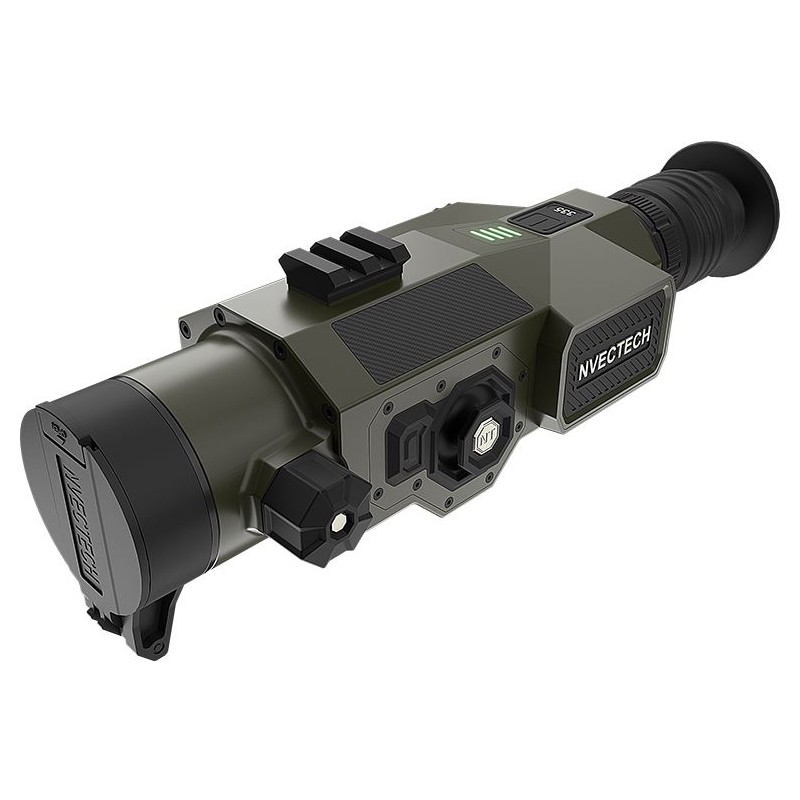

Nvectech Defender 335 - Thermal imaging device

The Defender thermal imaging system is a top-tier solution for professional hunting, offering unmatched accuracy and reliability in various conditions. Its advanced features and cutting-edge technologies make it an essential tool in the field.

High sensitivity to temperature changes: With NETD ≤20mk@300k, the system detects even the slightest temperature variations, ensuring exceptional image clarity and detail, even in low visibility conditions.

Magnification capabilities: The system offers smooth and fast optical and digital zoom from 1.8x to 5.5x, maintaining high image quality at different distances.

Security and reliability: The IP67 protection rating ensures the system can withstand harsh environments, including drops from up to 1 meter, and operates reliably in temperatures from -25°C to +55°C.

Advanced features for enhanced efficiency: Equipped with a ballistic calculator, a 1200-meter AI rangefinder, and an auto-fire function, the system delivers superior shooting accuracy. Additional features like CSFBC and GEO dot offer tactical advantages during operations.

Long battery life: The built-in battery provides up to 16 hours of continuous use, making it a reliable choice for extended hunting missions.

Data recording and processing: With 64 GB of memory for storing photos and videos, and data transfer supported via a Type-C port, the system simplifies data management and analysis.

Compact and ergonomic design: Lightweight and easy to transport, the system integrates seamlessly with other devices via the standard Picatinny rail, ensuring smooth installation.

The Defender thermal imaging system combines high accuracy, reliability, and efficiency, making it an essential tool for any serious hunting mission.

Specifications:

• NETD: ≤20mk@300k
• Optical Zoom: 3.3x
• Digital Zoom: 1.0-5.0x, smooth and fast
• Exit Pupil Diameter: 45mm
• Diopter Adjustment: -5 ~ +5
• GPS, Altitude Sensor, Azimuth, Temperature Sensor, Compass: Yes
• Reticle Color: Black and white
• Maximum Recoil Force: 10000J
• Auto-adjustment / Manual Adjustment: Yes
• Adjustment Profiles: 5
• Picture-in-Picture: Yes
• AI Rangefinder: Yes
• Gyroscope: Yes
• CSFBC (Combat System from Behind Cover): Yes
• GEO Dot: Yes
• OSD Recording: Yes
• Ballistic Calculator: Yes
• Wireless Communication: Yes, access point only
• Battery Life: ≥16 hours continuous operation
• Field of View: 7.5° x 5.6°
• Lens: 35mm
• Resolution / Pixel Distance: 384 x 288 / 12μm
• Spectral Range: 8~14μm
• Detector Type: VOx Microbolometer
• Frame Rate: 50 Hz
• AMOLED Display: 0.39 inches, 1024×768 resolution
• Memory Card: 64GB
• Photo, Recording, Playback: Yes
• RAV (Recoil Activated Video): Yes
• Grid: 7
• Battery Type: Built-in lithium-ion (2 x 18650)
• Type-C Port: Data transmission, connection to eyepiece
• Protection Level: IP67, 1-meter drop resistance
• Operating Temperature: -25℃ to +55℃
• Dimensions: 379x75x110 mm
• Other Accessories: Standard Picatinny Rail, eyepiece
