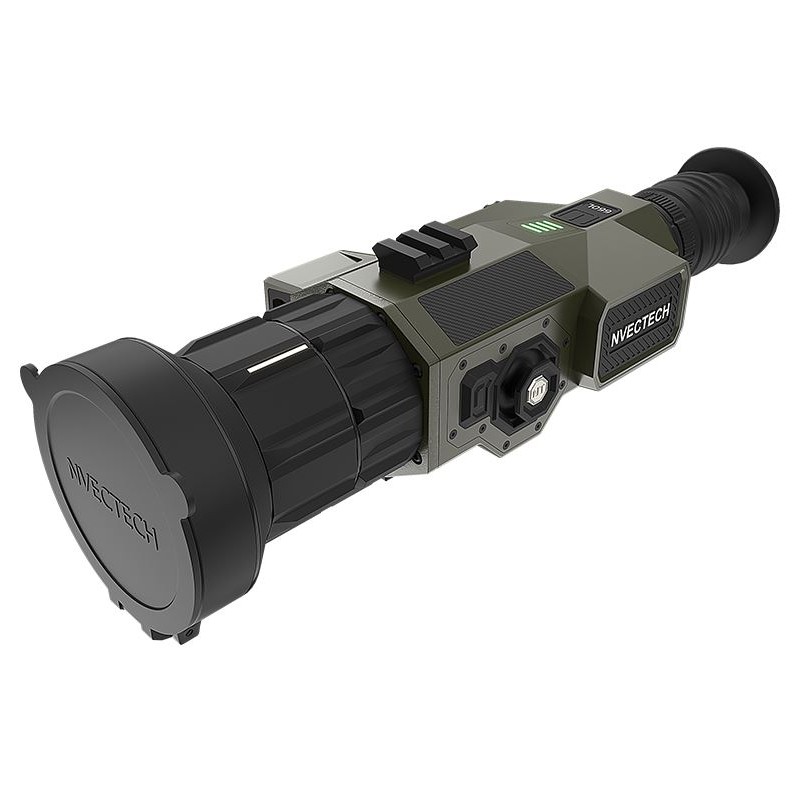

Nvectech Defender 660L - Thermal imaging device

The Defender thermal imaging system is a state-of-the-art tool designed for hunting operations, offering a combination of advanced technology and reliability. Its unique capabilities deliver outstanding functionality and precision in the toughest conditions.

Maximum sensitivity to thermal signals: With a NETD of ≤20mk@300k, the system detects even the smallest temperature changes, providing clear and detailed images even in total darkness.

Magnification for various distances: Smooth and fast zoom from 1.1x to 3.2x enables effective observation at different distances while maintaining high image quality and shooting accuracy.

Reliability and durability: Designed to operate in extreme environments, the device is IP67-rated for water, dust, and mechanical damage resistance. It also performs reliably in a wide temperature range, from -25℃ to +55℃.

Innovative features for tactical missions: Equipped with a ballistic calculator, 1200-meter AI rangefinder, and auto-firing function, the system offers high precision. Additional tactical advantages are provided by the CSFBC system and GEO dot function.

Long battery life: The built-in rechargeable battery supports up to 16 hours of continuous use, ensuring extended operations without frequent recharging.

Data storage and processing: With 64 GB of memory for storing photos and videos, the device supports data transfer via a Type-C port, simplifying data management.

Compact and convenient design: The system's compact dimensions (379x100x110 mm) make it easy to transport and ideal for field use. Integration with other accessories is made simple by the standard Picatinny rail.

The Defender thermal imaging system is the perfect choice for professionals who demand precision, reliability, and efficiency in their hunting missions.

Specifications:

• NETD: ≤20mk@300k
• Optical Zoom: 1.1x-3.2x
• Digital Zoom: 1.0-5.0x, smooth and fast
• Exit Pupil Diameter: 45mm
• Diopter Adjustment: -5 ~ +5
• GPS: Yes
• Altitude Sensor: Yes
• Azimuth Sensor: Yes
• Temperature Sensor: Yes
• Compass: Yes
• Reticle Color: Black and white
• Maximum Recoil Force: 10000J
• Auto-adjustment / Manual Adjustment: Yes
• Adjustment Profiles: 5
• Picture-in-Picture: Yes
• AI Rangefinder: Yes
• Gyroscope: Yes
• CSFBC (Combat System from Behind Cover): Yes
• GEO Dot: Yes
• OSD Recording: Yes
• Ballistic Calculator: Yes
• Laser Rangefinder: 1200m
• Wireless Communication: Yes, access point only
• Battery Life: ≥12 hours continuous operation
• Field of View Angle: 21.7°x17.4° / 7.3°x5.9°
• Lens: 20/60
• Resolution / Pixel Distance: 640 x 512 / 12μm
• Spectral Range: 8~14μm
• Detector Type: VOx Microbolometer
• Frame Rate: 50 Hz
• AMOLED Display: 0.39 inches, 1024×768 resolution
• Memory Card: 64GB
• Photo, Recording, Playback: Yes
• RAV (Recoil Activated Video): Yes
• Grid: 7
• Battery Type: Built-in lithium-ion (2 x 18650)
• Type-C Port: Data transmission, eyepiece connection
• Protection Level: IP67, drop resistance 1 meter
• Operating Temperature: -25℃ to +55℃
• Dimensions: 379x100x110 mm
• Other Accessories: Standard Picatinny Rail, eyepiece
