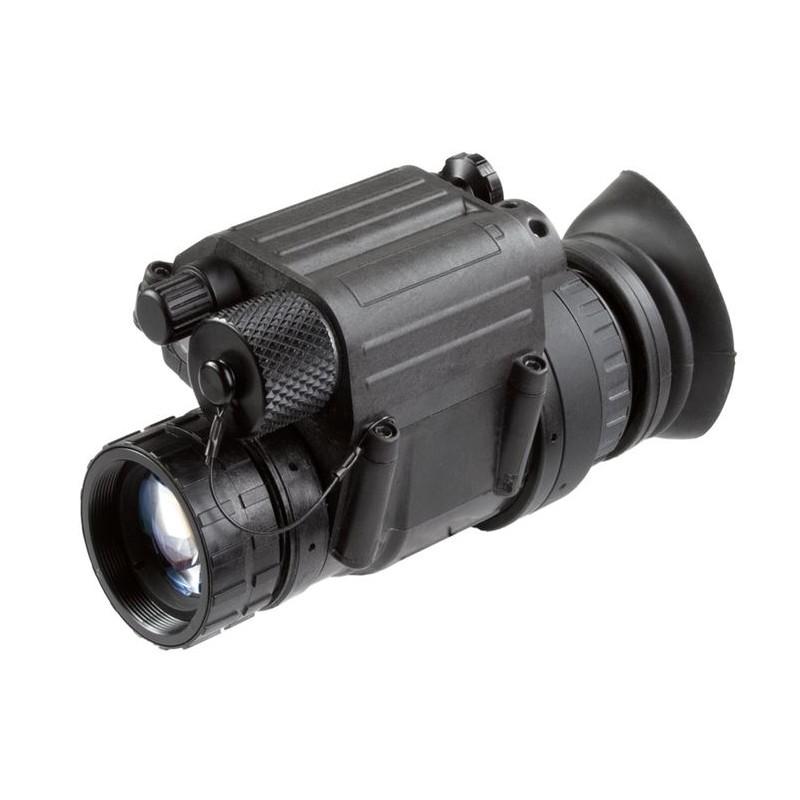

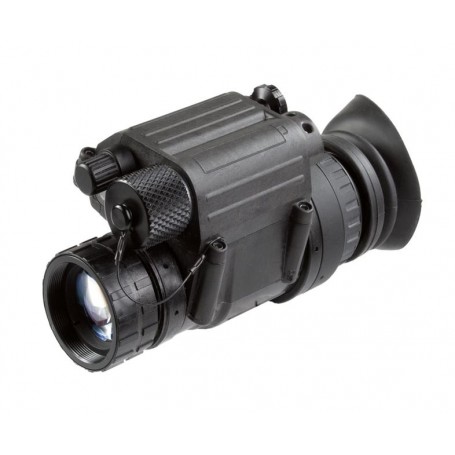

AGM PVS-14 AP Night Vision Monocular

The AGM PVS-14 Night Vision Monocular is a robust and lightweight multi-purpose night vision device, designed by AGM experts to cater to the consumer electronics market. Whether you're planning adventurous outdoor activities or simply want reliable night vision, this monocular is an excellent choice. It has been tested in some of the harshest environments, including by leading speleologists for their underground explorations, and by nature enthusiasts braving the toughest jungles in search of rare species.

The PVS-14 can be used as a handheld device or mounted on the included head harness, making it versatile for activities like setting up a tent, gathering firewood, night fishing, or stargazing. Weighing less than 12.4 ounces (350 grams), it offers features such as manual gain control, automatic bright light shut-off to protect the electronics, and a built-in Infrared (IR) illuminator. These features enhance the monocular's durability and usability in challenging conditions.

Additionally, the AGM PVS-14 comes with a range of optional accessories to support your adventurous lifestyle.

Spot Defects Specifications
Maximum spots allowed in each zone:

• Spot size: >.015 inches – None allowed
• Spot size: .012 – .015 inches – None allowed
• Spot size: .009 – .012 inches – None allowed
• Spot size: .006 – .009 inches – Up to 1 in Zone 2, and up to 2 in Zone 3
• Spot size: .003 – .006 inches – Up to 1 in Zone 1, 2 in Zone 2, and 3 in Zone 3

Note: No more than 4 spots allowed in total.

Key Features

• Compact, rugged design
• Waterproof
• Head-mountable for hands-free operation
• Manual gain control
• Ergonomic and easy-to-use controls
• Built-in Infrared illuminator and flood lens
• 3-year warranty

Package Includes

• Packing Box
• Soft Carrying Case
• Head Mount Assembly
• Brow Pad
• Helmet/Head Mount Adapter
• Sacrificial Window
• Demist Shield
• Battery
• Lens tissue
• User Manual

Technical Specifications

• Image Intensifier Tube: Advanced Performance Auto-Gated Gen 2+ P43-Green Phosphor IIT
• Cosmetic level of IIT: AP (best quality)
• Resolution: 57-74 lp/mm
• Visible Spots: Clear Field of View (FOV)
• Image Quality: Advanced, clear-cut image approximating Gen 3 quality
• FOM: 1800
• Magnification: 1x (3x and 5x optional)
• Lens System: 26 mm; F/1.2
• Field of View (FOV): 40°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 dpt
• LED Indicators: Low battery, IR On, Excessive light conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Automatic Shut-Off System: Yes
• Infrared Illuminator: Yes
• Battery Type: One AA 1.5V Alkaline battery
• Battery Life: Up to 40 hours at 20°C
• Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
• Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
• Weight: 0.35 kg (12.4 oz)
