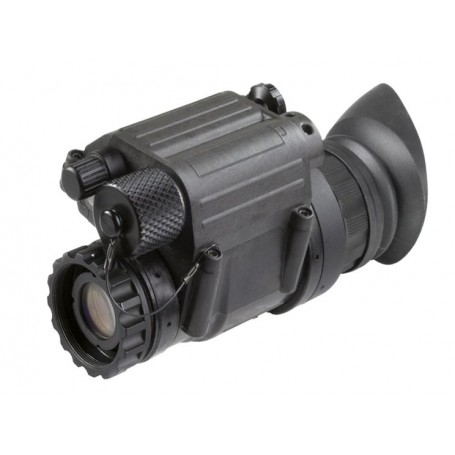

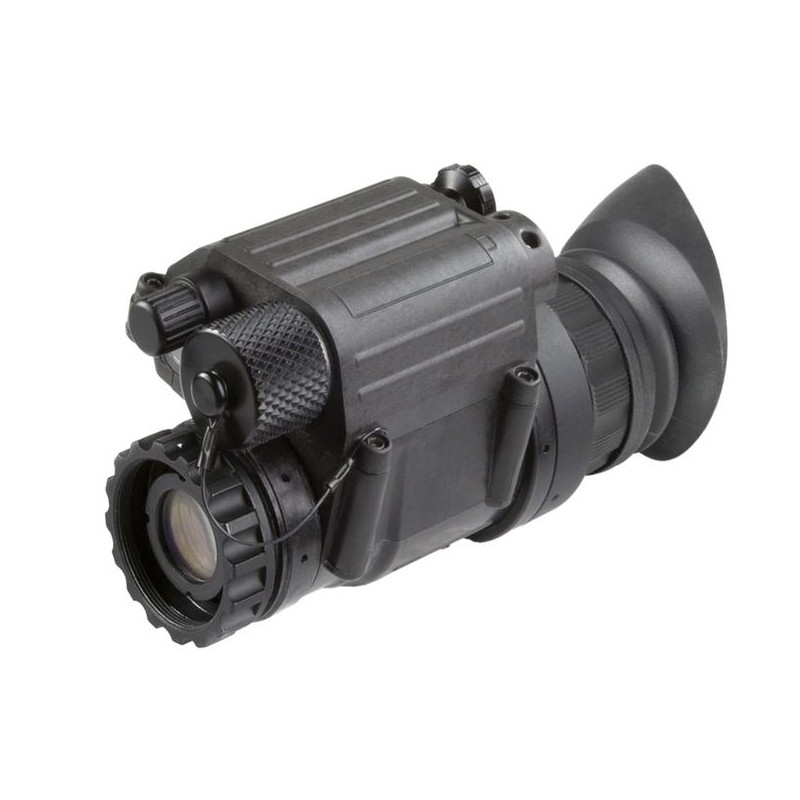

AGM PVS14-51 APW Night Vision Monocular

The AGM PVS14-51 Night Vision Monocular is a durable, lightweight, and versatile device, designed for use in some of the toughest environments worldwide. It can be operated as a handheld unit or mounted on the provided head harness for hands-free use. What sets the PVS14-51 apart is its extended field of view, offering a wide 51° visual range, allowing users to scan more area without moving the device. Despite its compact size, weighing less than 10.6 ounces (300 grams), this monocular is packed with essential features, including manual gain control, an automatic bright light shut-off, and a built-in Infrared (IR) illuminator. The bright light shut-off ensures the high-quality photocathode tube remains protected in intense lighting conditions. The PVS14-51 also offers a range of optional accessories to cater to virtually any operational need.

Spot Defects Specifications

• Spot size >.015 inches: None allowed
• Spot size .012 – .015 inches: None allowed in Zones 1 and 2, up to 1 in Zone 3
• Spot size .009 – .012 inches: None allowed in Zones 1 and 2, up to 1 in Zone 3
• Spot size .006 – .009 inches: Up to 1 in Zone 2, up to 2 in Zone 3
• Spot size .003 – .006 inches: Up to 1 in Zone 1, 2 in Zone 2, and 3 in Zone 3

Note: A maximum of 4 spots allowed in total.

Key Features

• Wide 51° field of view
• Compact and rugged design
• Waterproof

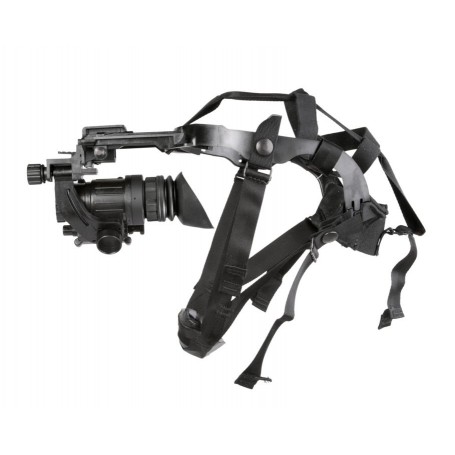

• Head-mountable for hands-free operation
• Ergonomic and easy-to-use controls
• Built-in Infrared illuminator and flood lens
• 3-year warranty

Package Includes

• Head Mount Assembly
• Brow Pad
• Head Mount Adapter
• Soft Carrying Case
• Daylight Filter
• Shoulder Strap
• Lens Tissue
• Sacrificial Window
• Demist Shield
• User Manual
• Battery

Technical Specifications

• Image Intensifier Tube: Advanced Performance Auto-Gated Gen 2+ P45-White Phosphor IIT
• Cosmetic Level of IIT: APW (best quality)
• Resolution: 60-64 lp/mm
• Visible Spots: Clear FOV
• Image Quality: APW tubes offer a sharp, clear image, comparable to Gen 3
• Magnification: 1x
• Lens System: 19 mm; F/1.26
• Field of View (FOV): 51°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 diopters
• LED Indicators: Low Battery, IR On, Excessive Light Conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Infrared Illuminator: Yes
• Battery Type: One AA 1.5V Alkaline battery
• Battery Life: Up to 50 hours at 20°C
• Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
• Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
• Weight: 300 g (10.6 oz)
• Dimensions: 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)
