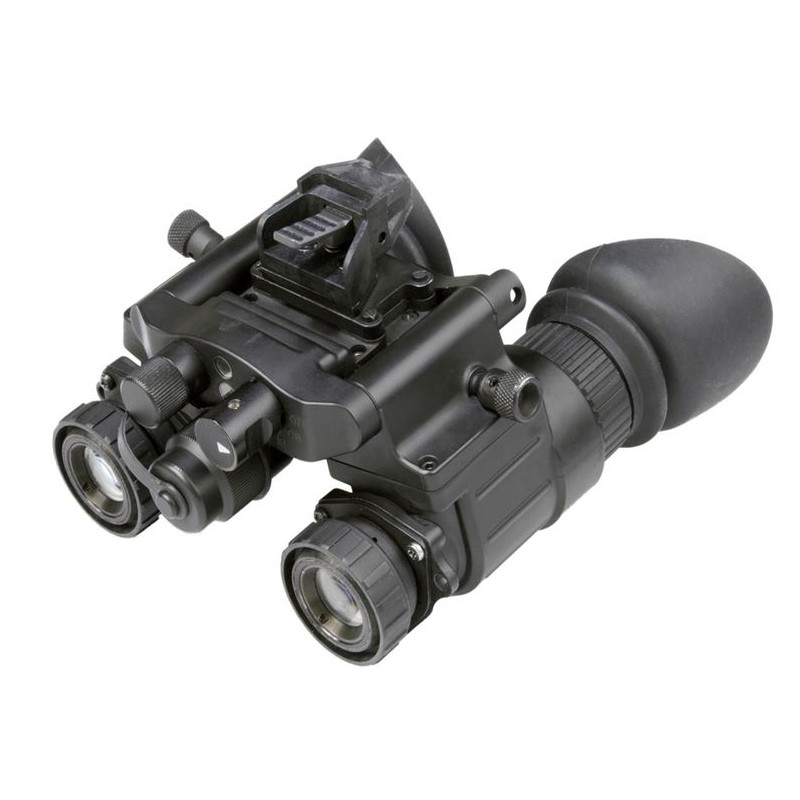

AGM NVG-50 APW Night Vision Goggle / binocular

The AGM NVG-50 is a dual-channel night vision system designed for wide visual coverage with its 51° field of view (FOV), allowing users to scan large areas without moving the binoculars. Equipped with top-tier multi-coated optics, it combines a lightweight, durable housing with excellent performance. The Gen 2 commercial-grade image intensifier tubes offer a remarkable price-to-performance ratio, and the bright light cut-off feature protects the sensitive electronics from damage.

The device includes Manual Gain Control, enabling users to adjust image brightness for the best possible visual quality, even in changing light conditions. Powered by either a single AA alkaline or CR123A battery, the NVG-50 provides up to 20 hours of continuous operation. It also features an integral infrared illuminator, ideal for reading or close-range tasks in the dark.

For hands-free use, the NVG-50 is compatible with a variety of mounts, such as AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18, or mounts with a mini-rail interface. The preinstalled NVG Interface Shoe allows for easy installation onto standard dovetail headset and helmet mounts, while the included Bayonet/Horn Interface Shoe enables use with bayonet-type mounts. An optional NVG Interface Shoe with Connector allows connection to a battery pack, and the Mini-Rail Interface Shoe is also available for mini-rail mounts.

Key Features:

• Redundant dual-tube design
• True stereoscopic vision
• Wide 51° field of view
• Lightweight and compact
• Head mountable for hands-free operation
• Bright light cut-off
• Manual gain control
• Ergonomic, simple controls
• Built-in infrared illuminator with flood lens
• Operates on single CR123A lithium or AA battery
• 3-year warranty

Package Includes:

• Soft Carrying Case
• Mounting Bracket (preinstalled NVG Interface Shoe)
• Demist Shields (2x)
• Sacrificial Windows (2x)
• Bayonet/Horn Interface Shoe
• Packing Box
• User Manual
• Lens Tissue
• One Lithium Battery
• CR123A Battery Adapter (CR123A 3V / AA 1.5V)

Specifications:

• Image Intensifier Tube: Advanced Performance Auto-Gated Gen 2+ P45-White Phosphor IIT
• Cosmetic Level of IIT: APW (best quality)
• Resolution: 60-64 lp/mm
• Visible Spots: Clear FOV
• FOM: 1800
• Magnification: 1x (3x optional)
• Lens System: 19 mm, F/1.26
• FOV: 51°
• Focus Range: 0.25 m to infinity
• Eye Relief: 17 mm
• Diopter Adjustment: -6 to +2 dpt
• Interpupillary Distance: 56 to 72 mm
• LED Indicators: Low battery, IR on, excessive light conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Automatic Shut-Off System: Yes
• Infrared Illuminator: Yes
• Battery Type: One CR123A (3V) or AA (1.5 V)
• Battery Life: Up to 20 hours at 20°C (up to 80 hours with optional battery pack)
• Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
• Storage Temperature Range: -50°C to +50°C (-58°F to +122°F)
• Weight: 615 g (1.35 lbs)
• Overall Dimensions: 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
