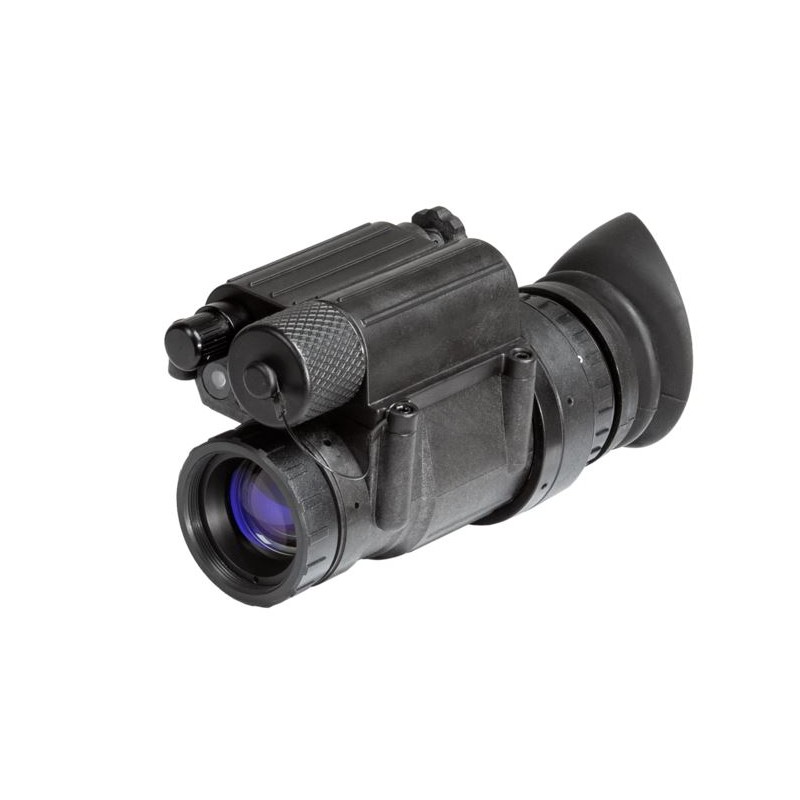

AGM PVS-14E NW1 enhanced Night Vision Monocular

In 2024, AGM Global Vision continues its tradition of innovation by enhancing the renowned PVS-14 night vision system with the release of the PVS-14E. This updated model brings important improvements, particularly in battery system flexibility and reduced weight, making it an ideal choice for both professionals and enthusiasts.

The AGM PVS-14E Night Vision Monocular is a durable, lightweight, and versatile device designed for use in demanding environments. It can be used as a handheld monocular or mounted on the provided head harness for hands-free operation.

One of its standout features is the Advanced Auto Shut-off System, which automatically powers the device down when it is moved out of the operating position and turns it back on when returned, saving energy and ensuring user convenience.

The PVS-14E features a more compact lens and eyepiece, reducing the overall weight to 10.2 oz (290 grams). Its power delivery system is highly flexible, supporting both AA and CR123 batteries, ensuring continuous operation without limiting users to a single battery type. An electronic polarity switching system ensures that users never have to worry about battery orientation—simply insert the battery, and the device is ready to go.

The unit includes manual gain control, an automatic bright light shut-off feature that protects the high-quality photocathode tube, and a built-in Infrared (IR) illuminator. The device automatically resumes operation when light levels fall below the set threshold. AGM backs the PVS-14E with a 3-year warranty, a testament to its commitment to quality. The unit is built to exceed 810G Military standards, offering superior durability and functionality.

Notable Features:

• Advanced electronic controller
• Auto shut-off and manual gain control
• Dual battery compatibility (AA or CR123)
• Automatic on/off functionality when the device is moved in or out of view
• Compact and lightweight design (4.25 in / 108 mm, 10.2 oz / 290 g)
• User-friendly controls and adjustments
• Multiple mounting options
• Built-in IR illuminator
• Waterproof and rugged construction
• 3-year warranty

Package Includes:

Night Vision Monocular, Head Mount Assembly, Lens Cap/Daylight Filter, Eye Cup, Head Mount Adapter, Soft Carrying Case, Neck Cord, Lens Paper, Sacrificial Window, Demist Shield, Manual, and Battery.

Specifications:

• Cosmetic Level of IIT: Gen 2+ "White Phosphor Level 1" International
• Resolution: 64 lp/mm
• Image Intensifier Tube: Gen 2+ "White Phosphor Level 1" International
• Visible Spots: Very limited
• NW1: Minimal cosmetic imperfections, mainly near the edges, which do not affect the viewing experience.
• Magnification: 1x (3x and 5x optional)
• Lens System: 26 mm; F/1.2
• Field of View (FOV): 40°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 diopters
• LED Indicators (in the FOV): Low Battery, IR On, Excessive Light Conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Infrared Illuminator: Yes
• Battery Type: One AA Alkaline, AA Lithium L91, CR123 Lithium, or AA/RCR123 rechargeable battery (up to 3.7V)
• Battery Life: Up to 40 hours at 20°C
• Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
• Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
• Weight: 290 g (10.2 oz)
• Dimensions: 108 × 63 × 69 mm (4.25 × 2.5 × 2.7 in)
