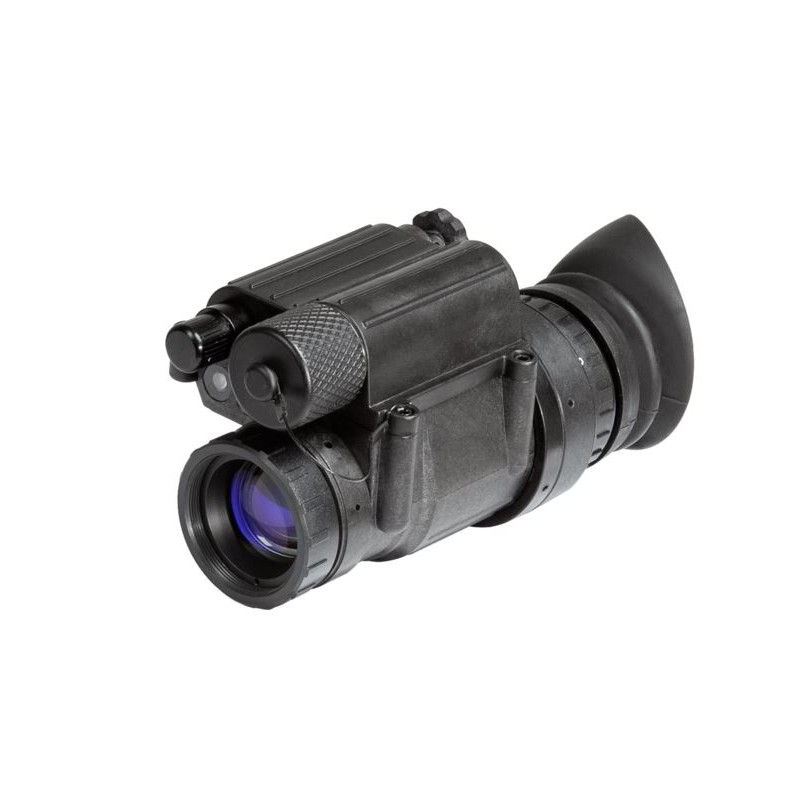

AGM PVS-14E AP enhanced Night Vision Monocular

In 2024, AGM Global Vision reinforces its dedication to excellence by enhancing the well-established PVS-14 night vision system with the new PVS-14E model. This upgraded version incorporates subtle yet significant improvements, particularly in battery flexibility and overall weight reduction.

The AGM PVS-14E Night Vision Monocular is a durable, lightweight, and highly versatile device designed for use in demanding conditions. It can be used as a handheld monocular or mounted on the included head harness for hands-free operation.

A key feature of the PVS-14E is the Advanced Auto Shut-off System, which automatically powers the device down when moved out of the operating position and turns it back on when repositioned. This not only conserves power but also enhances user convenience.

The PVS-14E comes equipped with a more compact lens and eyepiece, reducing its total weight to just 10.2 oz (290 grams). The device's flexible power delivery system supports both AA and CR123 batteries, allowing for uninterrupted use without being restricted to one type of battery. Additionally, the electronic polarity switching system means there’s no need to worry about battery orientation—simply insert the battery, and the device is ready for use.

This monocular also features manual gain control, an automatic bright light shut-off to protect the photocathode tube, and a built-in infrared (IR) illuminator. The bright light shut-off ensures that when light levels return below a certain threshold, the device resumes operation automatically. AGM Global Vision backs the PVS-14E with a 3-Year Warranty, demonstrating confidence in its quality. The unit adheres to strict 810G Military standards, ensuring superior durability and functionality.

Key features include:

• Unique electronic controller
• Auto shut-off and manual gain control
• Compatibility with multiple battery types (AA or CR123)
• Automatic on/off functionality when the device is moved out of view
• Compact and lightweight design (4.25 in / 108 mm and 10.2 oz / 290 g)
• Easy-to-use controls and adjustments
• Versatile mounting options
• Built-in IR illuminator
• Waterproof and rugged design
• 3-year warranty

Included in the package: Night Vision Monocular, Head Mount Assembly, Lens Cap/Daylight Filter, Eye Cup, Head Mount Adapter, Soft Carrying Case, Neck Cord, Lens Paper, Sacrificial Window, Demist Shield, Manual, and Battery.

Specifications:

• Image Intensifier Tube: Advanced Performance Auto-Gated Gen 2+ P43-Green Phosphor IIT
• Cosmetic Level of IIT: AP (best quality)
• Resolution: 60-64 lp/mm
• Visible Spots: Clear FOV
• AP: Manually selected tubes with an advanced, clear-cut image quality approaching Gen 3 level
• Magnification: 1x (3x and 5x optional)
• Lens System: 26 mm; F/1.2
• Field of View (FOV): 40°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 diopters
• LED Indicators (in the FOV): Low Battery, IR On, Excessive Light Conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Infrared Illuminator: Yes
• Battery Type: One AA Alkaline, AA Lithium L91, CR123 Lithium, or AA/RCR123 rechargeable battery up to 3.7V
• Battery Life: Up to 40 hours at 20°C
• Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
• Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
• Weight: 290 g (10.2 oz)
• Dimensions: 108 × 63 × 69 mm (4.25 × 2.5 × 2.7 in)
