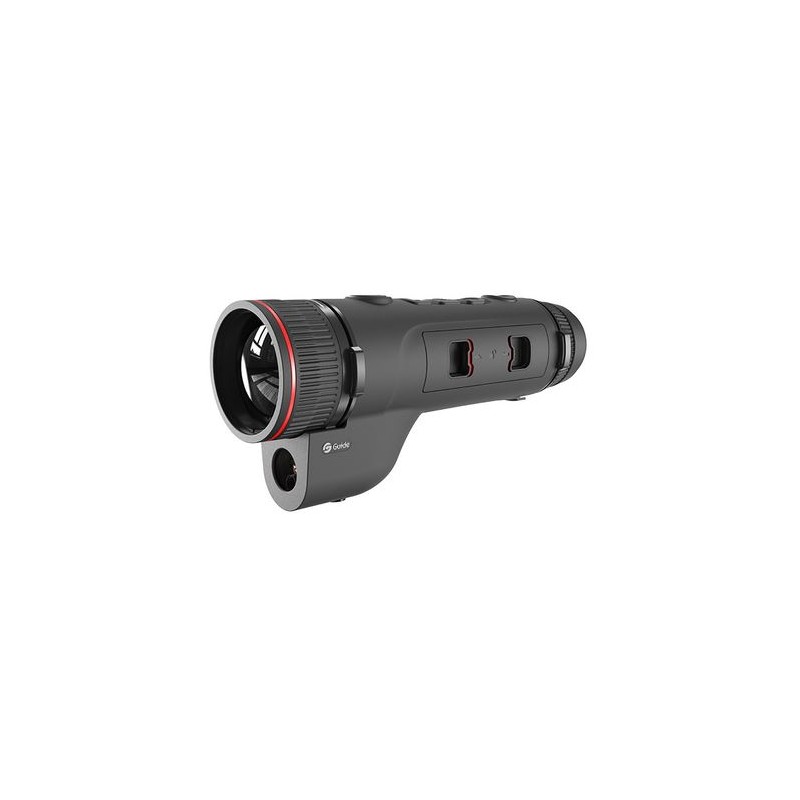

Guide TJ430L Handheld Thermal Imaging Monocular

The TJ LRF Series Thermal Imaging Monocular

Experience nighttime adventures with the TJ LRF Series, a favorite for hunters. This device offers advanced thermal imaging with a high-sensitivity infrared detector, providing clear night vision. Its Full-HD display, two-hand operation, laser ranging, video recording, and impressive 12-hour battery life make it an essential tool for nighttime explorations.

• Detector: NETD <25mK
• Display: Full-HD 1920x1080 AMOLED
• Laser Range: Up to 1000m
• Encapsulation: IP67 waterproof

High-Sensitivity 12μm Infrared Detector
With a highly sensitive IR detector (NETD <25mK), this device captures subtle temperature variations, delivering sharp and detailed imaging even in low-light conditions.

1920x1080 AMOLED Display
The high-definition AMOLED screen offers a vibrant, clear viewing experience with enhanced image quality, providing excellent comfort and clarity for observation.

Versatile Focal Lengths for Diverse Environments
Options of 25mm, 35mm, and 50mm F1.0 lenses provide adaptability across various settings. The 50mm lens enables detection up to 2000m, making it ideal for long-range observation and recording.

Long-Range Laser Ranging up to 1000m
Equipped with a built-in laser rangefinder, the TJ LRF Series accurately measures distances up to 1000m, enhancing long-distance perception and target acquisition.

Included in the Box

• Device
• Wrist strap
• Battery charger
• 2 × 18650 batteries
• 5V2A adapter (US, UK, Australia, Europe)
• USB Type-C cable
• Quick use guide
• Warranty card

Technical Specifications

Model: TJ430L
Sensor:

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame rate: 50Hz

Lens:

• Objective lens: 35mm, F1.0
• Field of view: 7.9°×5.9°
• FOV at 100m: 14×10 meters
• Magnification: 4.25x~17.0x
• Detection range: 1800m/1950yd

Display:

• Type: 0.39'' AMOLED, 1920×1080 resolution
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x

Hardware:

• Laser rangefinder: 1000m/1090yd
• WiFi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB 2.0)
• Additional features: Microphone, Compass, Gyroscope, Bluetooth

System:

• Recording: Photo/Video with audio recording
• Storage: 32GB

Power:

• Battery type: 2 replaceable 18650 batteries
• Operating time: 12 hours

Environmental:

• Operating temperature: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67 waterproof

Physical Dimensions:

• Weight: 583g (20.56 oz)
• Dimensions: 243×97×66mm (9.57×3.82×2.60 in)
