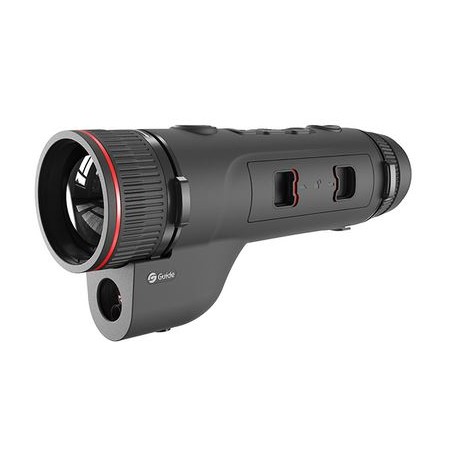

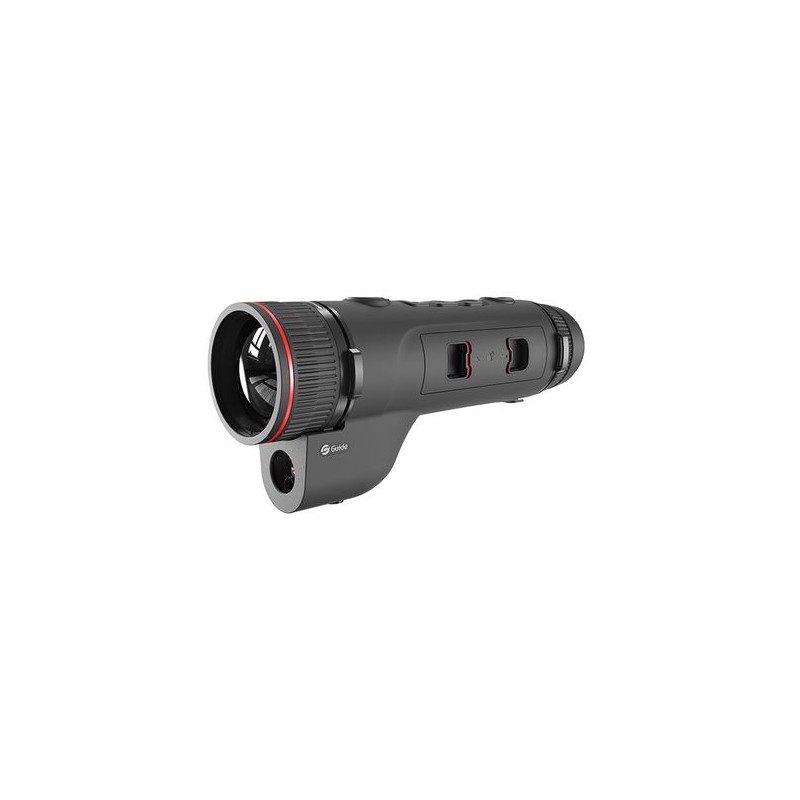

Guide TJ630L Handheld Thermal Imaging Monocular

The TJ LRF Series Thermal Imaging Monocular

Explore nighttime terrains with the TJ LRF Series, a trusted choice for hunters. This monocular combines high-sensitivity infrared detection with advanced thermal imaging, providing sharp, clear night vision. A Full-HD display, two-hand operation, laser rangefinding, video recording, and a 12-hour battery life make it the ideal partner for nighttime adventures.

• Detector: NETD <20mK
• Display: Full-HD 1920x1080 AMOLED
• Laser Range: Up to 1000m
• Encapsulation: IP67 waterproof

High-Sensitivity 12μm Infrared Detector
The device’s highly sensitive IR detector (NETD <20mK) captures minute temperature variations, delivering sharper and more detailed imaging, essential for low-light conditions.

1920x1080 AMOLED Display
The high-definition AMOLED screen offers a vibrant, immersive viewing experience with excellent color accuracy and image clarity, enhancing comfort during extended observation.

Versatile Focal Length Options
With focal lengths of 25mm, 35mm, and 50mm F1.0, the TJ LRF Series adapts to different environments. The 50mm lens allows clear target detection up to 2000m, ideal for distant observation and recording.

1000m Laser Rangefinder
The integrated laser rangefinder offers accurate distance measurement up to 1000m, providing enhanced long-distance perception and precision targeting.

Included in the Box

• Device
• Wrist strap
• Battery charger
• 2 × 18650 batteries
• 5V2A adapter (US, UK, Australia, Europe)
• USB Type-C cable
• Quick use guide
• Warranty card

Technical Specifications

Model: TJ630L
Sensor:

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame rate: 50Hz

Lens:

• Objective lens: 35mm, F1.0
• Field of view: 12.5°×10.0°
• FOV at 100m: 22×17 meters
• Magnification: 2.66x~21.28x
• Detection range: 1800m/1950yd

Display:

• Type: 0.39'' AMOLED, 1920×1080 resolution
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 16mm; Diopter: -6 to +6; Zoom: 18x

Hardware:

• Laser rangefinder: 1000m/1090yd
• WiFi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB 2.0)
• Additional features: Microphone, Compass, Gyroscope, Bluetooth

System:

• Recording: Photo/Video with audio recording
• Storage: 64GB

Power:

• Battery type: 2 replaceable 18650 batteries
• Operating time: 10 hours

Environmental:

• Operating temperature: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67 waterproof

Physical Dimensions:

• Weight: 581g (20.49 oz)
• Dimensions: 234×97×66mm (9.21×3.82×2.60 in)
