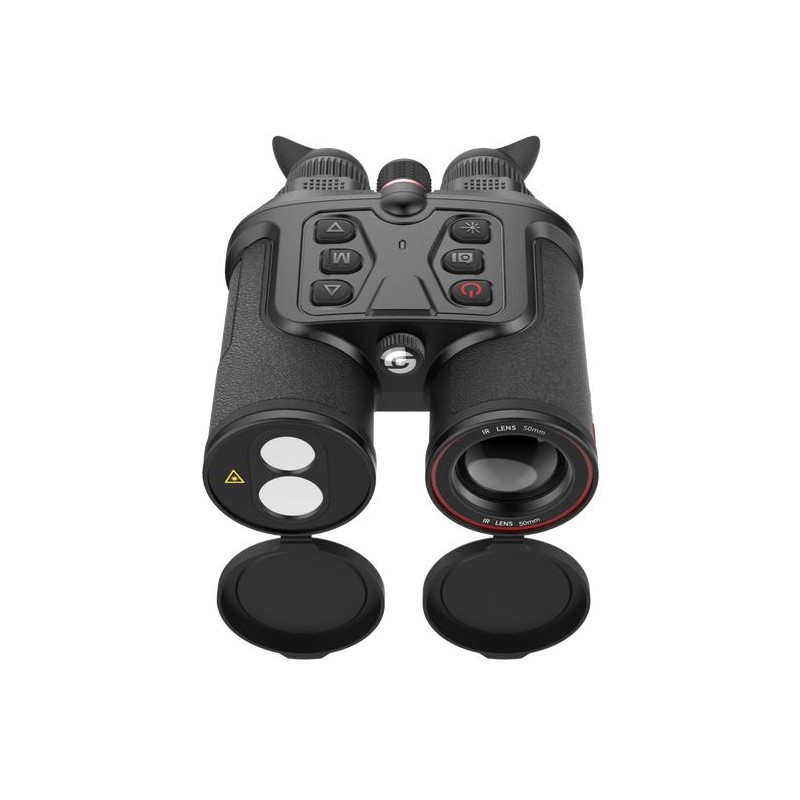

Guide TN430 Handheld Thermal Binoculars

TN Normae Series: Exceptional Binoculars for Comfortable, High-Quality Observation

The TN Normae Series is crafted with a classic binocular design, reducing strain during prolonged observation. Equipped with a high-sensitivity VOx uncooled IR detector, it delivers sharp imaging on a full-color OLED 1024×768 high-definition display, ensuring an immersive experience. This device includes diverse functionalities to enhance usability, such as photo and video capture, Wi-Fi connectivity, laser rangefinding, GPS, and a digital compass.

High-Resolution Imaging and Flexible Magnification

• IR Resolution: 400×300
• Focal Length: 35mm/F1.2
• NETD: ≤30mK
• Magnification: 2.3X to 9.2X adjustable zoom

Ergonomic Binocular Design

Designed for comfort, this binocular structure significantly reduces fatigue during extended use. The interpupillary distance is adjustable between 60mm and 70mm, accommodating various users. The raised buttons are easy to recognize by touch, even in complete darkness.

Enhanced Target Detection and Location

Utilize laser rangefinding for precise distance measurement, even in low-light conditions, ensuring accurate target location. Additionally, PIP (Picture-in-Picture) mode highlights targets, providing quick and clear identification.

Day and Night High-Quality Imaging

With a 400 × 300 VOx uncooled IR sensor and a 50Hz image frame rate, the TN Normae Series maintains fluid imaging for observing moving subjects seamlessly.

High-Definition OLED Display

The binoculars feature a 1024 × 768 full-color OLED display, boosting contrast and detail clarity for an enhanced viewing experience.

Flexible Zoom and Color Palette Options

Easily zoom in and out with a long press on the up/down buttons for smooth, rapid target pinpointing. Select from six color palettes (white hot, black hot, red hot, green hot, iron red, and blue heat) for diverse viewing needs, enabling reliable all-weather observation.

Multiple Scene Modes

Quickly adapt to various environments by switching between “Enhance,” “Highlight,” and “Natural” modes. These settings adjust the image to reduce noise, focusing on the target in each unique scene.

Photo and Video Recording with Remote Access

Capture photos and videos to document your experiences. Through Wi-Fi, you can remotely control the device, live-stream images, and share them via social media apps.

Robust and Weather-Resistant Design

The TN Normae Series meets IP66 standards for protection against dust and rain, as well as impact resistance. Operating from -30°C to 50°C, this binocular is designed to perform reliably in extreme weather conditions. It also complies with UN38.3 battery standards and holds RoHS, CE, and FCC certifications.

What’s Included

Inside the box: Device, lens cap, two detachable eye masks, carry bag, shoulder strap, 5V2A adapter (compatible with US, UK, Australia, and Europe), two replaceable 18650 batteries, battery charger, USB Type-C cable, micro HDMI cable, and a quick start guide.

Technical Specifications

• Model: TN430

Sensor:

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300 at 17μm
• NETD (Noise Equivalent Temperature Difference): ≤30mK
• Frame Rate: 50Hz

Lens:

• Objective Lens: 35mm, F1.2
• Field of View: 11.1°×8.33°
• Field of View (at 100m): 19m x 15m
• Magnification: 2.3x to 9.2x (adjustable zoom)
• Detection Range: 1300m / 1400 yards

Display:

• Display Type: 0.39" AMOLED
• Resolution: 1024×768 pixels
• Color Palettes: Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
• Eyepiece: Eye relief of 16 mm; Diopter adjustment range from -6 to +6; Interpupillary distance adjustment between 60mm and 70mm
• Zoom: 13.8x

Hardware:

• Laser Rangefinder: 1000m / 1090 yards
• Wi-Fi: 2.4G
• Interface: USB Type-C and Micro HDMI
• Additional Features: GPS, Digital Compass, Gyroscope, Bluetooth

System:

• Recording Function: Supports both photo and video recording
• Memory Capacity: 16GB internal storage

Power:

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 5.5 hours

Environmental Protection:

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Encapsulation: IP66 rated for dust and water protection

Physical Dimensions and Weight:

• Weight: 860 grams / 30.34 ounces
• Size: 162×146×70 mm (6.38×5.75×2.76 inches)
