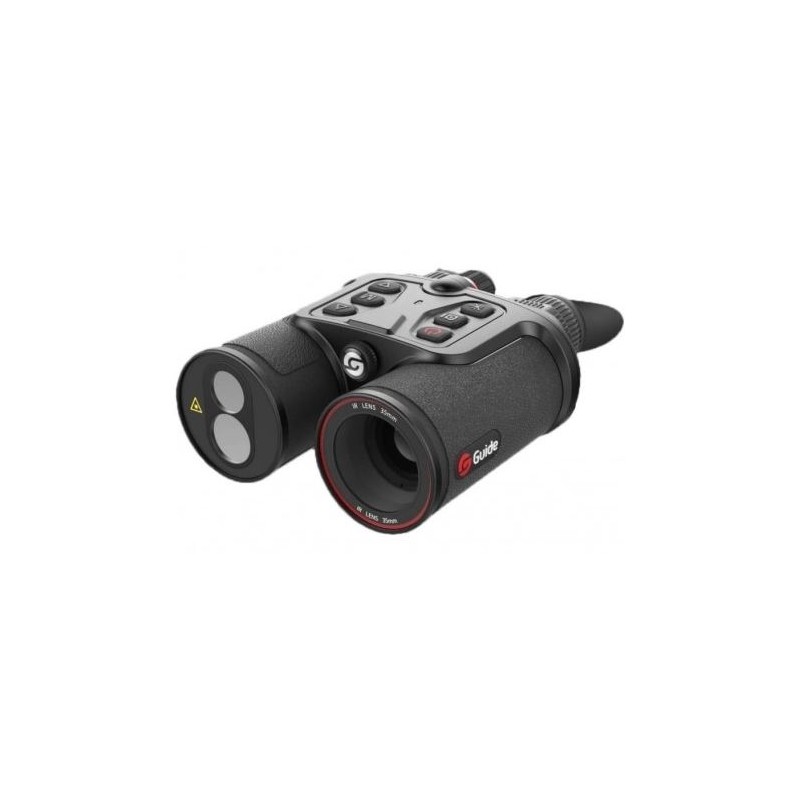

Guide TN450 Handheld Thermal Binoculars

TN Normae Series: Advanced Binoculars for Superior Comfort and Precision

The TN Normae Series features a classic binocular design that minimizes fatigue during extended observation sessions. Equipped with a high-sensitivity VOx uncooled IR detector, it provides high-quality imaging and an immersive viewing experience through a full-color OLED 1024×768 high-definition display. This device includes a wide array of functionalities to meet various needs, including photo and video capture, Wi-Fi connectivity, laser rangefinding, GPS, and a digital compass.

Specifications at a Glance:

• IR Resolution: 400×300
• Objective Lens: 50mm, F1.2
• NETD: ≤30mK
• Magnification: 3.2X to 12.8X adjustable zoom

Ergonomic Design for Easy Observation

The binocular design is crafted to reduce fatigue, allowing for comfortable long-time use. The interpupillary distance is adjustable between 60mm and 70mm, accommodating different users. Ergonomically raised buttons are easy to recognize by touch, even in complete darkness.

Quick and Accurate Location Tracking

In low-light or dark conditions, the laser rangefinder ensures precise distance measurements, allowing for accurate target location.

Day and Night High-Quality Imaging

With a 400 × 300 VOx uncooled IR sensor and a 50Hz frame rate, this device delivers smooth imaging, capturing moving targets effectively.

Vivid OLED Display for Enhanced Viewing Comfort

The full-color OLED display with 1024 x 768 resolution offers high contrast and detailed image clarity, enhancing the viewing experience.

PIP Mode for Quick Target Identification

Picture-in-Picture (PIP) mode instantly highlights the target's location, making outdoor tracking swift and efficient.

Smooth Zoom for Flexible Searching

A long press on the up/down button allows smooth zooming in and out, enhancing search flexibility and enabling quick target pinpointing.

Multiple Color Palettes to Enhance Target Visibility

• Six color options: white hot, black hot, red hot, green hot, iron red, and blue heat.
• A one-button switch for quick color changes helps adapt to different observation conditions, ensuring reliable all-weather performance.

Scene Modes for Optimal Target Clarity

Easily switch between “Enhance,” “Highlight,” and “Natural” modes to adjust images according to various scenes. “Enhance” and “Highlight” modes effectively reduce image noise, emphasizing the target.

Photo and Video Recording with Remote Access

The device supports photo and video capture, enabling users to document memorable moments. Through Wi-Fi, remote control, live streaming, and media sharing via a companion app are possible.

Built for Tough Environments

The TN Normae Series is IP66-rated, protecting it from heavy rain, dust, and impact. Operating temperatures range from -30°C to 50°C, making it suitable for harsh weather conditions. It has also passed UN38.3 battery certification and complies with RoHS, CE, and FCC standards.

What’s Included in the Box

Device, lens cap, two detachable eye masks, carry bag, shoulder strap, 5V2A adapter (compatible with US, UK, Australia, and Europe), two replaceable 18650 batteries, battery charger, USB Type-C cable, micro HDMI cable, and a quick start guide.

Technical Specifications

• Model: TN450
• Sensor Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@17μm
• NETD: ≤30mK
• Frame Rate: 50Hz

Lens Specifications:

• Objective Lens: 50mm, F1.2
• Field of View: 7.78°×5.84°
• Field of View at 100m: 14m x 10m
• Magnification: 3.2x to 12.8x (adjustable zoom)
• Detection Range: 1800m / 1950 yards

Display Specifications:

• Type: 0.39" AMOLED
• Resolution: 1024×768 pixels
• Color Palettes: Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
• Eyepiece: Eye relief 16 mm; Diopter adjustment -6 to +6; Interpupillary distance 60mm to 70mm; Zoom 13.8x

Hardware Features:

• Laser Rangefinder: 1000m / 1090 yards
• Wi-Fi: 2.4G
• Interface: USB Type-C and Micro HDMI
• Additional Features: GPS, Digital Compass, Gyroscope, Bluetooth

System Specifications:

• Recording: Supports photo and video recording
• Memory: 16GB internal storage

Power and Battery:

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 5.5 hours

Environmental Durability:

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Encapsulation: IP66 rated

Physical Dimensions and Weight:

• Weight: 880 grams / 31.04 ounces
• Dimensions: 162×146×70 mm (6.38×5.75×2.76 inches)
