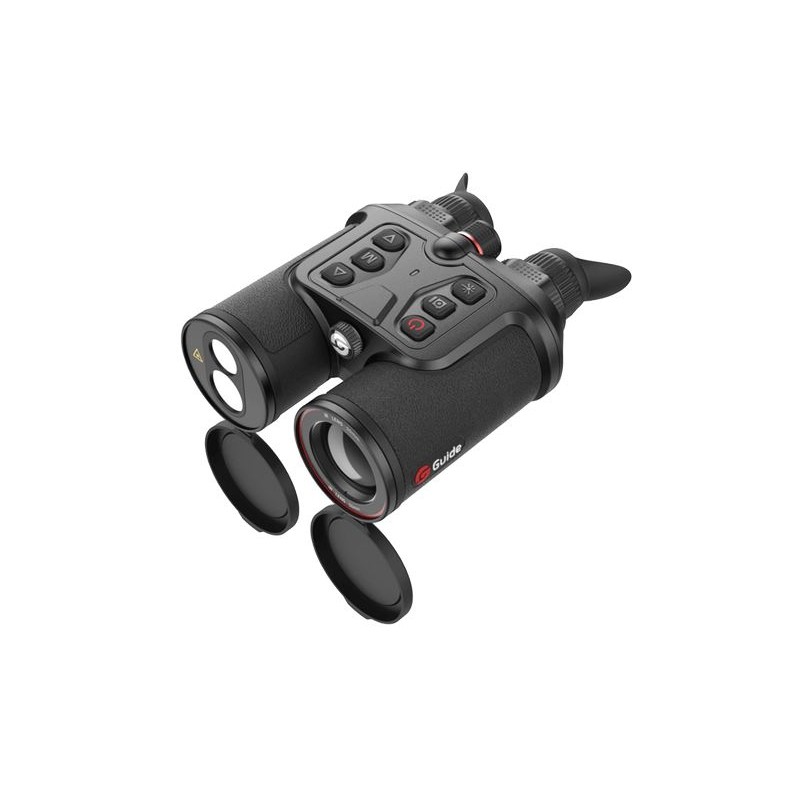

Guide TN630 Handheld Thermal Binoculars

TN Normae Series: Superior Binoculars for Comfortable, High-Definition Observation

The TN Normae Series boasts a classic binocular design that significantly reduces fatigue during long observation sessions. With a high-sensitivity VOx uncooled IR detector, it delivers exceptional imaging quality on a full-color OLED 1024×768 high-definition display. Equipped with versatile features like photo and video capture, Wi-Fi connectivity, laser rangefinding, GPS, and a digital compass, this device meets all your observation needs.

Specifications Overview

• IR Resolution: Up to 640×480
• Focal Length: 35mm/F1.2
• NETD: ≤30mK
• Magnification: 2.0X to 16X adjustable zoom

Ergonomic Design for Comfortable Viewing

This binocular design reduces fatigue, ideal for prolonged use. Adjustable interpupillary distance (60mm to 70mm) accommodates various users. Raised ergonomic buttons ensure easy, intuitive operation, even in complete darkness.

Accurate Location Tracking in Low Light

Laser rangefinding provides precise distance measurements in dark conditions, enabling accurate location identification.

Clear Day and Night Imaging

With up to 640×480 VOx uncooled IR resolution and a 50Hz frame rate, the TN Normae Series ensures smooth, detailed observation of moving targets.

Vibrant OLED Display for Enhanced Viewing Comfort

The full-color OLED 1024 x 768 display delivers high contrast and fine image detail, boosting overall viewing comfort.

PIP Mode for Instant Target Identification

Picture-in-Picture (PIP) mode helps locate the target instantly, improving visibility in outdoor conditions.

Smooth Zoom for Precise Targeting

Easily zoom in and out by pressing the up/down button, allowing for flexible searching and rapid target pinpointing.

Multiple Color Palettes for Versatile Observation

• Six color palettes available: white hot, black hot, red hot, green hot, iron red, and blue heat.
• One-button switching between palettes enhances target visibility in different environments, enabling effective all-weather use.

Adaptable Scene Modes for Optimal Target Clarity

Switch between “Enhance,” “Highlight,” and “Natural” modes with a single button. These settings adjust the image for different environments, reducing noise and emphasizing the target as needed.

Photo and Video Recording with Remote Sharing

Capture photos and videos at any time, preserving your experiences. Wi-Fi capability allows for remote control, live streaming, and media sharing through a companion app.

Rugged, Weather-Resistant Design

Certified with IP66 waterproofing, the TN Normae Series is built to withstand heavy rain, dust, and impacts. It operates reliably in temperatures from -30°C to 50°C and complies with UN38.3 battery, RoHS, CE, and FCC certifications.

Included in the Box
Device, lens cap, two detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, UK, Australia, and Europe), two replaceable 18650 batteries, battery charger, USB Type-C cable, micro HDMI cable, and quick start guide.

Technical Specifications

• Model: TN630
• Sensor: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×480@12μm
• NETD: ≤30mK
• Frame Rate: 50Hz
• Lens: 35mm, F1.2
• Field of View: 12.52°×9.41°
• Field of View at 100m: 22m x 16m
• Magnification: 2.0x to 16.0x
• Detection Range: 1800m / 1950 yards

Display

• Type: 0.39" AMOLED 1024×768
• Color Palettes: Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
• Eyepiece: Eye relief 16 mm; Diopter adjustment -6 to +6; Interpupillary distance 60mm to 70mm

Hardware Features

• Laser Rangefinder: 1500m / 1630 yards
• Wi-Fi: 2.4G
• Interface: USB Type-C, Micro HDMI
• Additional Features: GPS, Compass, Gyroscope, Bluetooth

System

• Recording: Photo and video capability
• Memory: 16GB internal storage

Power and Battery

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 5.5 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Encapsulation: IP66

Physical Dimensions and Weight

• Weight: 860 grams / 30.34 ounces
• Size: 162×146×70 mm (6.38×5.75×2.76 inches)
