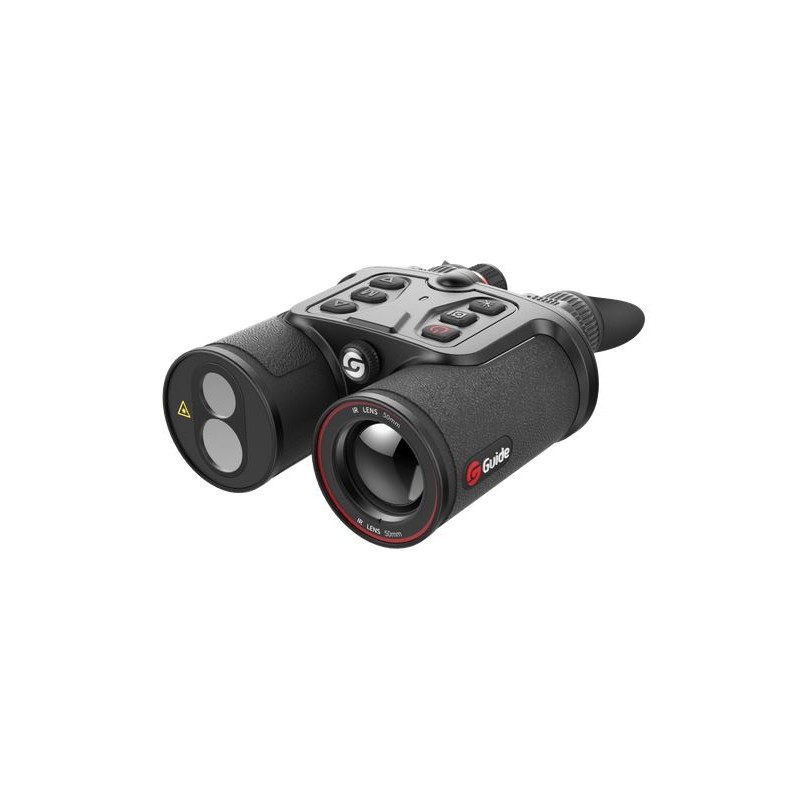

Guide TN650 Handheld Thermal Binoculars

TN Normae Series: Enhanced Comfort and Precision in Observation

The TN Normae Series, with its classic binocular design, reduces fatigue during prolonged observation. Featuring a high-sensitivity VOx uncooled IR detector, it provides clear, high-quality imaging on a 1024×768 OLED display for an immersive viewing experience. Equipped with advanced functionalities, it supports photo and video capture, Wi-Fi, laser rangefinding, GPS, and a digital compass.

Specifications Overview

• IR Resolution: 640×480
• Focal Length: 50mm/F1.2
• NETD: ≤30mK
• Magnification: 2.8X to 22.4X adjustable zoom

Ergonomic and User-Friendly Design

This binocular design minimizes fatigue, ideal for extended use. The interpupillary distance is adjustable (60mm to 70mm) to fit different users. Ergonomic, raised buttons are easy to locate by touch, even in complete darkness.

Precise Location Tracking in Dark Conditions

Laser rangefinding provides accurate distance measurements, ensuring precise target location in low light.

High-Resolution Day and Night Imaging

With a 640 x 480 VOx uncooled IR resolution and a 50Hz frame rate, it captures moving targets smoothly and clearly.

Full-Color OLED Display for Enhanced Viewing Comfort

The high-definition 1024 x 768 OLED display boosts contrast and detail, making it easy to see fine image details.

Quick Target Identification with PIP Mode

The Picture-in-Picture (PIP) mode highlights targets instantly, improving visibility in outdoor settings.

Flexible Zoom for Accurate Targeting

Smoothly zoom in and out by holding the up/down button, allowing for flexible searching and quicker target pinpointing.

Multiple Color Palettes for Versatile Observation

• Six color palettes: white hot, black hot, red hot, green hot, iron red, and blue heat.
• Quickly switch palettes with one button to adapt to different environments, ensuring effective all-weather performance.

Adaptable Scene Modes for Clear Target Viewing

Switch between “Enhance,” “Highlight,” and “Natural” modes to optimize image quality based on different scenes. "Enhance" and "Highlight" modes help reduce image noise, clearly emphasizing the target.

Photo and Video Recording with Remote Sharing Capability

Capture photos and videos to record memorable moments. Wi-Fi functionality allows remote control, live streaming, and media sharing via a dedicated app.

Durable, Weather-Resistant Build

IP66-rated for water and dust protection, the TN Normae Series is also impact-resistant. With an operating temperature range from -30°C to 55°C, it’s designed for challenging environments and meets UN38.3, RoHS, CE, and FCC certification standards.

What’s Included in the Box
Device, lens cap, two detachable eye masks, carry bag, shoulder strap, 5V2A adapter (compatible with US, UK, Australia, and Europe), two replaceable 18650 batteries, battery charger, USB Type-C cable, micro HDMI cable, and quick start guide.

Technical Specifications

• Model: TN650
• Sensor Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×480@12μm
• NETD: ≤30mK
• Frame Rate: 50Hz
• Lens: 50mm, F1.2
• Field of View: 8.78°×6.59°
• Field of View at 100m: 15m x 12m
• Magnification: 2.8x to 22.4x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.39" AMOLED 1024×768
• Color Palettes: Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
• Eyepiece: Eye relief 16 mm; Diopter adjustment -6 to +6; Interpupillary distance 60mm to 70mm

Hardware Features

• Laser Rangefinder: 1500m / 1630 yards
• Wi-Fi: 2.4G
• Interface: USB Type-C, Micro HDMI
• Additional Features: GPS, Compass, Gyroscope, Bluetooth

System

• Recording: Supports photo and video capture
• Memory: 16GB internal storage

Power and Battery

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 5.5 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Encapsulation: IP66

Physical Dimensions and Weight

• Weight: 880 grams / 31.04 ounces
• Size: 162×146×70 mm (6.38×5.75×2.76 inches)
