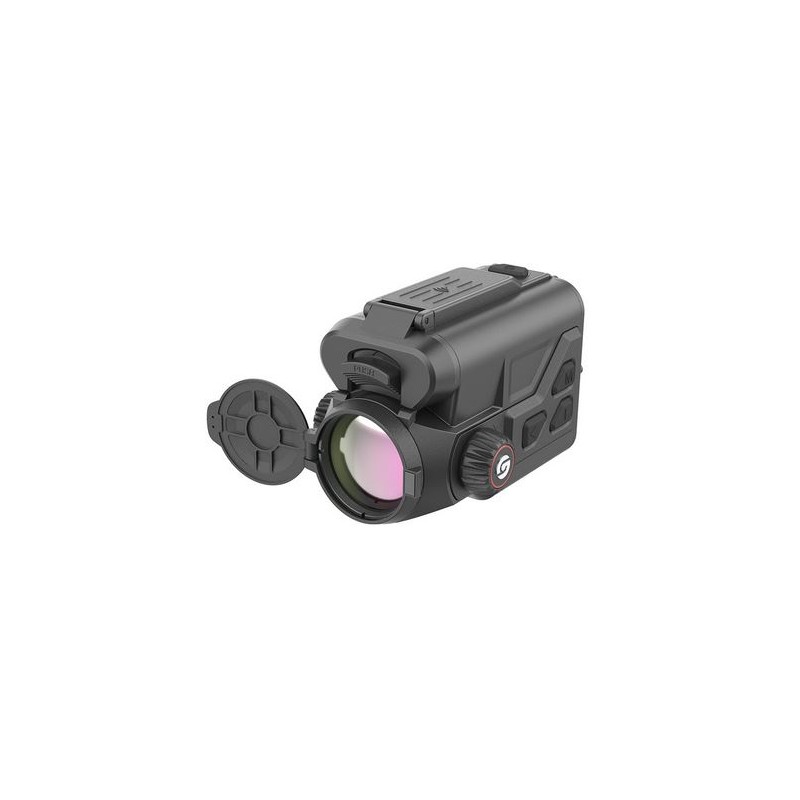

Guide TB430 Clip-on Thermal Imaging Attachment

The TB Series: Precision Meets Portability

The TB Series is engineered for those seeking a balance of precision and portability. Its magnesium alloy housing reduces weight by over 20% compared to similar products, while enhancing precision. This model is more compact than previous clip-on versions, making it an ideal companion for relaxed hunting. The Full-HD 1920x1080 AMOLED display provides a wider viewing angle and richer color, enhancing the overall observation experience.

Key Features

• Encapsulation: IP68 for reliable durability
• Display Resolution: 1920x1080 for high-quality visuals
• High Sensitivity: NETD <25mK for detecting fine temperature variations
• Battery Life: Up to 12 hours of operation

12μm High-Sensitivity Infrared Detector

Equipped with a highly sensitive IR detector with NETD<25mK, the TB Series can distinguish even slight temperature differences, delivering sharp and clear imaging.

1920x1080 AMOLED Display

The 1920x1080 high-definition AMOLED display in the eyepiece provides vibrant colors and crisp image quality, making long observation sessions more comfortable.

Lightweight and Compact Design

Constructed from a magnesium alloy, the TB Series is lightweight, compact, and easy to carry and install.

Blind-Mountable Universal Battery System

The device uses standard 18650 batteries with a safety circuit. Battery replacement is simple, requiring only that one cell’s positive and negative poles are opposite, minimizing confusion.

12-Hour Battery Life

Designed for extended adventures, the TB Series combines low power consumption with a lightweight structure for lasting performance.

IP68 Protection Against Harsh Conditions

The IP68 rating ensures waterproof performance, withstanding extreme weather and shock resistance up to 1000G/ms.

What’s Included
Device, battery charger, two 18650 batteries, 5V2A adapter (compatible with US, UK, Australia, and Europe), USB Type-C cable, quick start guide, and warranty card.

Technical Specifications

• Model: TB430

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: <25mK
• Frame Rate: 50Hz

Lens

• Objective Lens: 35mm, F1.0
• Field of View: 7.8°×5.9°
• Field of View at 100m: 14m x 10m
• Magnification: 1x
• Detection Range: 1800m / 1950 yards

Display

• Type: 0.39'' AMOLED 1920×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 20mm; Zoom 6.4x

Hardware

• Wi-Fi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB2.0)
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 32GB internal storage

Power

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 12 hours

Environmental Protection

• Operating Temperature: -20°C to 50°C (-4°F to +122°F)
• Shock Resistance: 1000G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP68

Physical Dimensions and Weight

• Weight: 425 grams / 14.99 ounces
• Size: 128×79×79 mm (5.04×3.11×3.11 inches)
